Shop HUBBELL WIRING DEVICE-KELLEMS

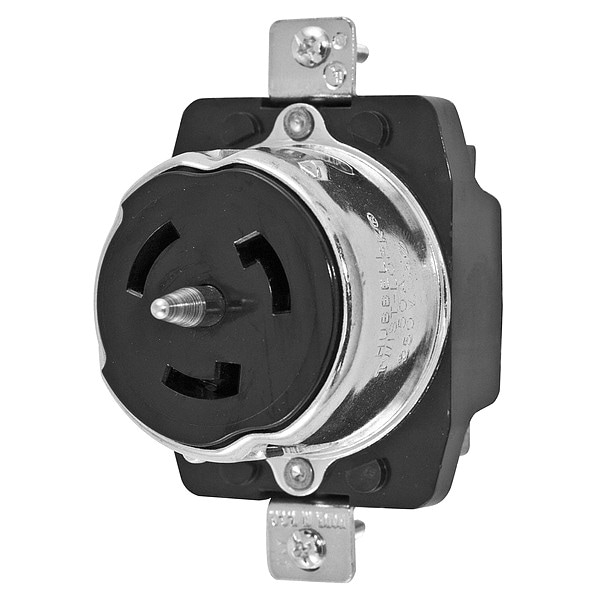

Locking Receptacle, Non-NEMA, 50 A, 250V AC, Three Phase, 3 Pole, Flush Mount, Screw Terminals

  • Mfr # CS8369

  • Zoro # G2712367

product price:
$
129.06
/ea
Free Shipping & Returns

Key Features

NEMA Receptacle Configuration
Non-NEMA
Current Rating
50 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CS8369
Zoro #
G2712367
UPC #
783585829074
Country of Origin
United States

Dimensions

Minimum Wire Size
10 AWG
Maximum Wire Size
6 AWG
Wire Size
#10 AWG min #6 AWG max

Details

Item
Locking Receptacle
NEMA Receptacle Configuration
Non-NEMA
Current Rating
50 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
Number of Wires
4
Wire Connection Type
Screw Terminals
Grounding
Grounded
Housing Color
Black
Mount Type
Flush
Cover Type
No Cover
Flange Type
Non-Flanged
Standards
CSA Certified C22.2 No. 42, UL 498
Resistance Properties
Heat Resistant
IP Rating
IP20
Grade
Industrial
Special Features
With Locking Cover
Mounting Type
Flush Mount
Material
Impact Modified PBT
Wiring Style
Standard
Maximum Operating Temperature
167 Degrees F
For Environment
Dry
For Location
Indoor
NEMA Enclosure Rating
4, 4X, 12
Housing Material
Phenolic
Connection Orientation
Straight
Number of Gangs
1
Market
Industrial
Contact Material
Brass
Minimum Operating Temperature
-40 Degrees F
Shrouded
Yes
Polarized
Yes
AFCI
No
Spring Material
.100"/.040" Brass
Lock Type
Twist-lock
Flammability
UL 94 V0
Terminal Designations
Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Amps
50
UL 94 Flammability Rating
V-0

Description

The HUBBELL 50A Twist-Lock Receptacle is a locking receptacle suitable for industrial applications, rated for 50 amps and 250V AC. It features a twist-lock mechanism with three poles and four wires, providing connections in indoor environments. The device has a flush mount design and is constructed from impact-modified PBT with a phenolic housing.


Key Features of the HUBBELL 50A Twist-Lock Receptacle:

  • Current/Voltage Rating: Rated for 50 amps at 250V AC, suitable for high-capacity electrical systems.

  • Lock Type: Twist-lock configuration is intended to help reduce the likelihood of accidental disconnection.

  • Construction: Impact modified PBT body with phenolic housing has UL 94 V-0 flammability rating.

  • Wire Accommodation: Accepts wire sizes from #10 AWG minimum to #6 AWG maximum; screw terminal connections.

  • NEMA Configuration & Ratings: NEMA enclosure ratings: 1, 4, 4X, and 12

  • Operating Temperature Range: Rated operating temperature range: -40°F to +167°F (-40°C to +75°C continuous).

  • Mounting Type: Can be flush mounted into panels or wall boxes as required by application needs.

  • Standards Compliance: Complies with UL 498 and CSA C22.2 No.42 standards.
