  11. Midget Flanged Locking Inlet, 15 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Black

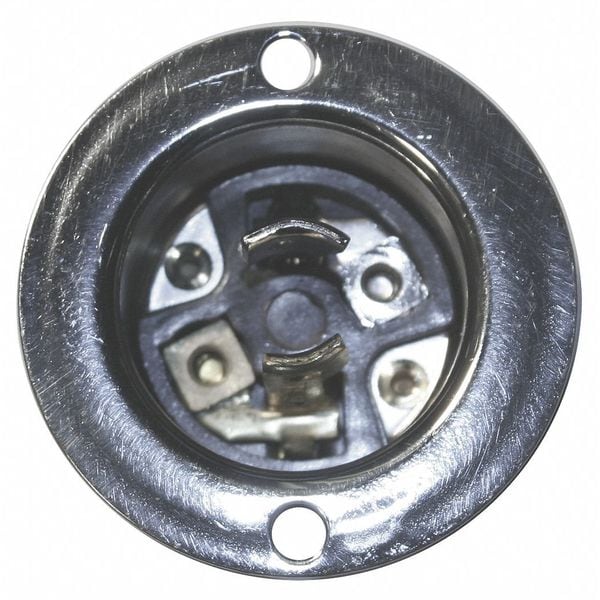

Hubbell Wiring Device-Kellems Midget Flanged Locking Inlet, 15 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Black HBL7467 - main

Midget Flanged Locking Inlet, 15 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Black

  • Mfr # HBL7467

  • Zoro # G0263767

product price: $22.29
/ea

Key Features

Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL7467
Zoro #
G0263767
UPC #
783585237329
Country of Origin
United States

Dimensions

Maximum Wire Size
14 AWG
Face Plate Width
1.63 in
Mount Hole Center-to-Center Height
1.38 in
Minimum Wire Size
18 AWG
Face Plate Height
0.94 in
Wire Size
15A #14 AWG
Width
1.63 in
Length
1.63 in
Dimensions
1.63 in x 1.63 in x 0.94 in
Height
0.94 in

Details

Item
Midget Locking Plug
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
2
Wire Connection Type
Screw Terminals
Grounding
Non-Grounded
Housing Color
Black
Cover Type
No Cover
IP Rating
IP20
Standards
CSA Certified C22.2 No. 42, UL 498
Resistance Properties
Heat Resistant, Moisture Resistant
Flange Type
Flanged
Flange Material
Stainless Steel
Body Material
Stainless steel
Wiring Style
Standard
Material
zinc plated
Special Features
Molded In or Stamped On
Midget Locking
Yes
Number of Blades
2
For Location
Indoor
Maximum Surge Current
15 A
Market
Industrial
Maximum Operating Temperature
167 Degrees F
Compatible with Series
Midget Twist-Lock
Blade Material
Brass
Minimum Operating Temperature
-40 Degrees F
Includes Mounting Hardware
Yes
NEMA Plug Configuration
ML1-15P
Housing Material
Stainless Steel
Terminal Designations
Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Flammability
UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors.
Lock Type
Twist-lock
Amperage Rating
15 A
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #18 AWG - #14 AWG solid or stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Dielectric Strength
Withstands 2,000V minimum
OEM Brand Name
Hubbell Wiring Device-Kellems
Material - Mounting Hardware
Screw Mounting
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Insulation
Insulated Body
Application
Heavy Duty Industrial
Amps
15 A
NEMA Configuration
ML1-15
NEMA Receptacle Configuration
ML-1P

Description

Midget Locking Flanged Inlet, Current Rating 15 A, Flange Material Stainless Steel, Housing Color Black, IP Rating IP20, NEMA Plug Configuration ML1-15P, Number of Blades 2, Number of Poles 2, Phase Single, Resistance Properties Heat Resistant, Voltage Rating 125V AC, Wiring Style Standard, Flange Type Flanged, Grounding Non-Grounded, Housing Material Stainless Steel, Includes Mounting Hardware Yes, Maximum Wire Size 14 AWG, Midget Locking Yes, Minimum Wire Size 18 AWG
