  11. Midget Locking Connector, ML1-15R, 15 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Black

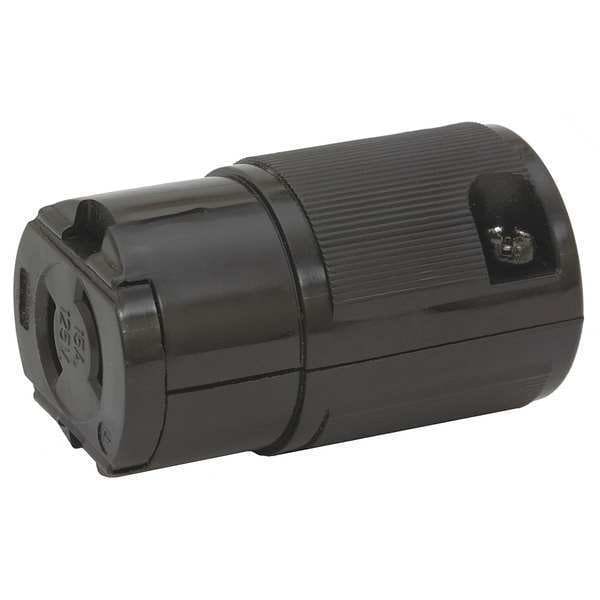

Hubbell Wiring Device-Kellems Midget Locking Connector, ML1-15R, 15 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Black HBL7464V - main

Midget Locking Connector, ML1-15R, 15 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Black

  • Mfr # HBL7464V

  • Zoro # G1484673

product price: $18.95
/ea

Key Features

NEMA Receptacle Configuration
ML1-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HBL7464V
Zoro #
G1484673
UPC #
783585237251
Country of Origin
China

Dimensions

Cord Size
0.220 in to 0.385 in
Overall Length
1.06 in
For Maximum Cable Diameter
0.385 in
Minimum Wire Size
14 AWG
Maximum Wire Size
12 AWG
Outside Diameter
1.063 in
For Minimum Cable Diameter
0.22 in
Width
1.06 in
Height
1.77 in
Length
1.06 in
Dimensions
1.06 in x 1.06 in x 1.77 in
Wire Size
#18 AWG to #14 AWG

Details

Item
Midget Locking Connector
NEMA Receptacle Configuration
ML1-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
2
Wire Connection Type
Screw Terminals
Wiring Style
Hinged
Connection Orientation
Straight
Shrouded
No
Grounding
Non-Grounded
Housing Color
Black
Cap Type
No Cap
Standards
CSA Certified C22.2 No. 42, UL 498
Resistance Properties
Shatter and Crack Resistant
Body Material
Nylon
Material
Nylon
IP Rating
IP20
Special Features
Terminals identified in accordance with UL 498
Maximum Operating Temperature
75 Degrees C
For Environment
Dry
Midget Locking
Yes
Contact Material
Brass
UL 94 Flammability Rating
HB
For Location
Indoor
Housing Material
Nylon
Market
Industrial
Minimum Operating Temperature
-40 Degrees F
Dielectric Strength
Withstands 2,000V minimum
Flame Resistant
HB or better per UL 94 or CSA 22.2 No. 0.6
Weight
0.05
Cord Range
0.220"-0.385"(5.6-9.8)
Application
Heavy Duty Industrial
OEM Brand Name
Hubbell Wiring Device-Kellems
Material - Mounting Hardware
Cord Mounted
Amperage Rating
15 A
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Terminal Accomodation - #18 AWG - #14 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Conductor Range
#14 AWG to #12 AWG
Insulation
Insulated Body

Description

Midget Locking Connector, Connection Orientation Straight, Current Rating 15 A, Housing Color Black, Housing Material Nylon, IP Rating IP20, NEMA Receptacle Configuration ML1-15R, Number of Poles 2, Number of Wires 2, Phase Single, Resistance Properties Shatter and Crack Resistant, Shrouded No, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Style Hinged, Cap Type No Cap or Cover, Contact Material Brass, For Maximum Cable Diameter 0.385 in, For Minimum Cable Diameter 0.22 in
