  11. Midget Locking Connector, ML2-15R, 15 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Black

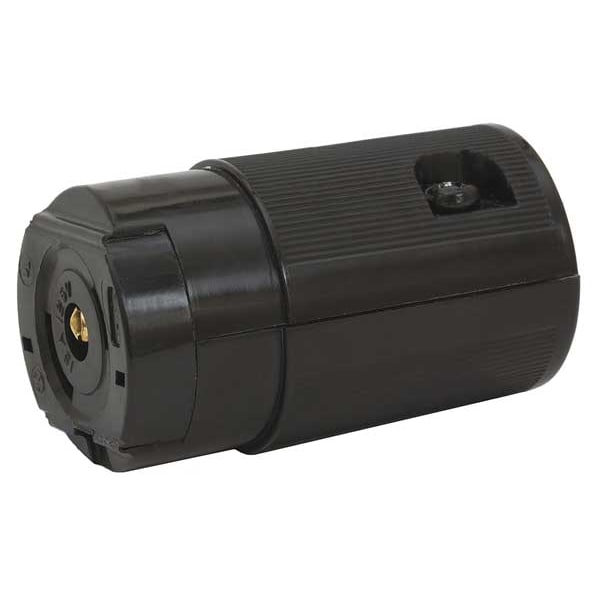

Hubbell Wiring Device-Kellems Midget Locking Connector, ML2-15R, 15 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Black HBL7593V - main

Midget Locking Connector, ML2-15R, 15 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Black

  • Mfr # HBL7593V

  • Zoro # G0242462

product price: $26.49
/ea

Key Features

NEMA Receptacle Configuration
ML2-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL7593V
Zoro #
G0242462
UPC #
783585237763
Country of Origin
China

Dimensions

Cord Size
0.300 in to 0.430 in
For Maximum Cable Diameter
0.4375 in
For Minimum Cable Diameter
0.30 in
Maximum Wire Size
12 AWG
Overall Length
1.19 in
Outside Diameter
1.188 in
Minimum Wire Size
14 AWG
Dimensions
1.19 in x 1.19 in x 1.98 in
Length
1.19 in
Height
1.98 in
Wire Size
#18 AWG to #14 AWG
Width
1.19 in

Details

Item
Midget Locking Connector
NEMA Receptacle Configuration
ML2-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Style
Hinged
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Black
Cap Type
No Cap
Standards
CSA Certified C22.2 No.42, UL 498
Resistance Properties
Shatter and Crack Resistant
Body Material
Nylon
IP Rating
IP20
Special Features
Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Material
.031" (.8) Brass
For Location
Indoor
Horsepower Rating
1 hp
Market
Industrial
UL 94 Flammability Rating
HB
Minimum Operating Temperature
-40 Degrees F
For Environment
Dry
Midget Locking
Yes
Maximum Operating Temperature
75 Degrees C
Housing Material
Nylon
Dielectric Strength
2,000V minimum
Weight
0.1
Flame Resistant
UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors.
Insulation
Insulated Body
Amperage Rating
15 A
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Terminal Accomodation - #18 AWG - #14 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Material - Mounting Hardware
Cord Mounted
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Application
Heavy Duty Industrial
Conductor Range
#14 AWG to #12 AWG
Cord Range
0.300"-0.430"(7.6-10.9)
OEM Brand Name
Hubbell Wiring Device-Kellems

Description

Midget Locking Connector, Connection Orientation Straight, Current Rating 15 A, Housing Color Black, Housing Material Nylon, IP Rating IP20, NEMA Receptacle Configuration ML2-15R, Number of Poles 2, Number of Wires 3, Resistance Properties Shatter and Crack Resistant, Shrouded No, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Style Hinged, Cap Type No Cap or Cover, For Maximum Cable Diameter 0.43 in, For Minimum Cable Diameter 0.3 in, Grounding Grounded
