  15. Nonfusible, Disconnect Switch, Heavy Duty, 600 V, 3PST, NEMA 12K, 4, 4X

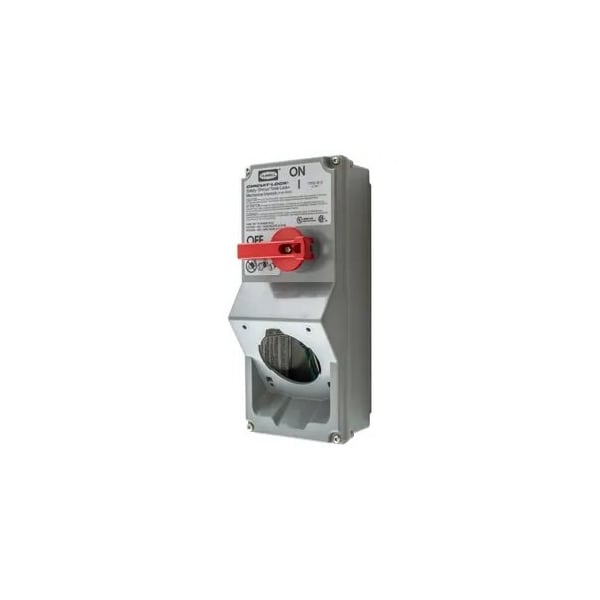

Hubbell Wiring Device-Kellems Nonfusible, Disconnect Switch, Heavy Duty, 600 V, 3PST, NEMA 12K, 4, 4X HBLMITL - main

CAD Drawings

Download CAD Files

Nonfusible, Disconnect Switch, Heavy Duty, 600 V, 3PST, NEMA 12K, 4, 4X

  • Mfr # HBLMITL

  • Zoro # G2464646

CAD Available
product price: $469.80
/ea
Free Shipping & Returns

Key Features

CAD Drawing
Protection Method
Nonfusible
Contact Form
3PST
Current Rating
30 A
Phase
Three
Environment
Indoor/Outdoor
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBLMITL
Zoro #
G2464646
UPC #
783585176802
Country of Origin
Poland

Dimensions

Depth
4.2 in
Width
4.88 in
Height
11.4 in
For Disconnect Switch Size
30 A

Details

Item
Disconnect Switch
Protection Method
Nonfusible
Contact Form
3PST
Current Rating
30 A
Phase
Three
Environment
Indoor/Outdoor
Enclosure Type
NEMA 12K, 4, 4X
HP
15 HP @ 600 V
Voltage
600 V
Handle Color
Gray
Standards
UL/CSA
Duty
Heavy Duty
IP Rating
66
Number of Poles
3
Number of Wires
5
Fusible / Nonfusible
Nonfusible
Material
Non-Metallic
Amps
30 A
NEMA Enclosure Type
12K, 4, 4X
For Use With
Twist-Lock(R) Receptacles
Product Type
Switched Twist-Lock
Mounting
External full adjustable feet
Maximum Voltage
690V AC
Compatible with Manufacturer Model Number
VLS3P016D1, VLS3P025D1, VLS3P032D1, VLS3P040D1
Color
Gray
Mounting Mechanism
Door
Resistance Properties
Compact-Resistant, Corrosion-Resistant
Compatible Manufacturer Part Number
VLS3P016D1, VLS3P025D1, VLS3P032D1, VLS3P040D1
Compatible Manufacturer Model Number
VLS3P016D1, VLS3P025D1, VLS3P032D1, VLS3P040D1
For Use With Mfr. Model Number
VLS3P016D1, VLS3P025D1, VLS3P032D1, VLS3P040D1
Device Color
Gray
Flammability
Meets UL 94V0 material classification, UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors.
Moisture Resistance
IP66, IP66 suitability
UV Resistance
All exposed materials are UV stabilized
Terminal Accommodation
30A #10 AWG
Dielectric Voltage Withstand
2,000V minimum
Temperature Rise
Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75.
Product Item
Switched Mechanically Interlocked Enclosure
Dielectric Voltage
Withstands 3,000V minimum
Impact Resistance
In accordance with UL 746C
Terminal Identification
Terminals identified in accordance with UL 498 (X, Y, Z, White, Green), In accordance with UL, CSA
Operations
Mechanical 10,000 cycles; Electrical 6,000 cycles
Compatible with Manufacturer Model No.
VLS3P016D1, VLS3P025D1, VLS3P032D1, VLS3P040D1
Compatible with Mfr. Model No.
VLS3P016D1, VLS3P025D1, VLS3P032D1, VLS3P040D1
For Use with Mfr Model Number
VLS3P016D1, VLS3P025D1, VLS3P032D1, VLS3P040D1
Compatible Pump Manufacturer Part Number
VLS3P016D1, VLS3P025D1, VLS3P032D1, VLS3P040D1
Compatible Mfr. Model Number
VLS3P016D1, VLS3P025D1, VLS3P032D1, VLS3P040D1
CAD Available
Yes

Description

The HUBBELL WIRING DEVICE-KELLEMS - HBLMITL is a Disconnect Switch, an industrial electrical device intended for use in interrupting the flow of electric current to specific circuits or equipment. Primarily used in sectors such as manufacturing, construction, and energy production for maintenance, repair, and emergency stoppage purposes, this device is designed with features that aim to reduce the risk of accidental startups or electrical shocks during servicing operations.

  • Amps: With a rating of 30 A (amperes), it is intended for handling specified levels of electrical current within its rated capacity.
  • Compatibility: This disconnect switch has been tested for compatibility with multiple manufacturer model numbers including VLS3P016D1, VLS3P025D1, VLS3P032D1 & VLS3P040D1. Compatibility does not guarantee seamless integration and optimal performance.
  • Contact Form: The 3PST contact form indicates how many circuits can be controlled and whether they are normally open (NO) or closed (NC).
  • Duty: Classified as 'Heavy' duty indicating its suitability for heavy use in various industrial applications.
  • Enclosure Type: It has a NEMA rating of 12K, 4 & 4X which suggests potential resistance against certain environmental conditions like dust, water corrosion and external ice formation based on NEMA standards.
  • HP Rating: Rated for handling power output from connected motors or machinery up to 15 HP @ 600V
  • Material Construction: Constructed from non-metallic materials which may influence durability and resistance to corrosion under certain circumstances in some industrial environments
