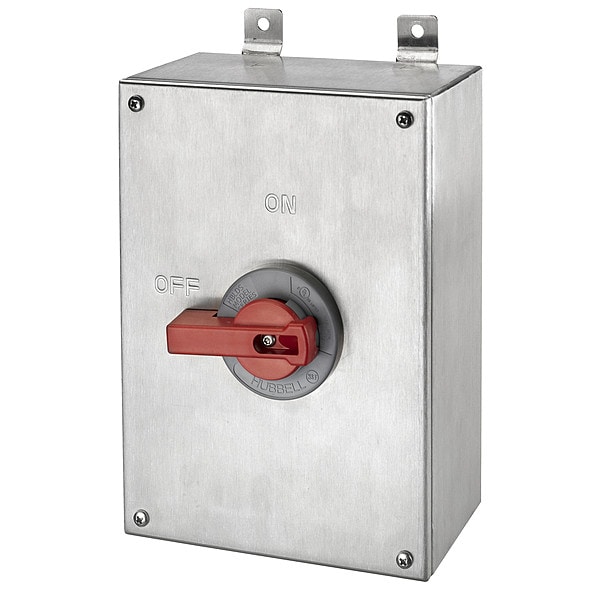

Hubbell Wiring Device-Kellems Nonfusible, Motor Disconnect Switch, Heavy Duty, 600 V, 3PST HBLDS10SSAC - main

Nonfusible, Motor Disconnect Switch, Heavy Duty, 600 V, 3PST

  • Mfr # HBLDS10SSAC

  • Zoro # G7007594

product price: $973.35
/ea
Free Shipping & Returns

Key Features

Protection Method
Nonfusible
Contact Form
3PST
Current Rating
100 A
Phase
Three
Environment
Indoor/Outdoor
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBLDS10SSAC
Zoro #
G7007594
UPC #
783585372594
Country of Origin
Poland

Dimensions

Width
7.3 in
Height
10.3 in
Depth
6 in
Maximum Mounting Depth
18 in
Standard Conduit Size
1.25 in
Minimum Mounting Depth
6.63 in
Length
11.63 in
Dimensions
11.63 in x 7.3 in x 5.39 in

Details

Item
Motor Disconnect Switch
Protection Method
Nonfusible
Contact Form
3PST
Current Rating
100 A
Phase
Three
Environment
Indoor/Outdoor
Enclosure Type
NEMA 4X
HP
50 HP
Voltage
600 V
Handle Color
Red
Housing Material
18-8 Stainless Steel
Standards
UL/CSA
Number of Wires
5
Fusible / Nonfusible
Nonfusible
Number of Poles
3
IP Rating
54
Amps
100 A
Neutral Assembly Included
Yes
Material
304 Stainless Steel
Duty
Heavy
Includes
Auxiliary Contact
Series
Non-Fused
Resistance Properties
Impact-Resistant, UV-Resistant
For Environment
Indoor & Outdoor Rated
NEMA Enclosure Rating
4X
Horsepower @ 600V AC
50 hp
Horsepower @ 240V AC
7 1/2 hp
Horsepower @ 480V AC
15 hp
Mounting Style
Surface Mount
Application
Labelless
Ingress Protection
IP69K
Style
Heavy Duty
Dielectric Strength
Withstands 3000V AC minimum
Mounting Method
Feet are fixed
Industry Standard(s)
UL Listed
Performance
Electrical - Amperage Rating - 400A Maximum Electrical - Voltage Ratings - 600V AC Maximum 250V DC Maximum Mechanical - Product Identification - Ratings are a permanent part of the device
Wattage
360000
Insulation
Insulated Body
Number Of Pins
1) In, 1) Out

Description

NEC section 430.102(B) requires each motor controller to have a disconnect within line of sight from the motor and driven equipment. Hubbell’s Circuit-Lock® Unfused Disconnect Switches are UL listed as a manual motor controller and also “suitable as a motor disconnect” and meet these code requirements.
• Molded-in conduit opening and field installed hub
• Internal frame automatically bonds all grounds
• Reversible interior accommodates top or bottom conduit opening
