  11. Occupancy Sensor Control Unit, 120to277V

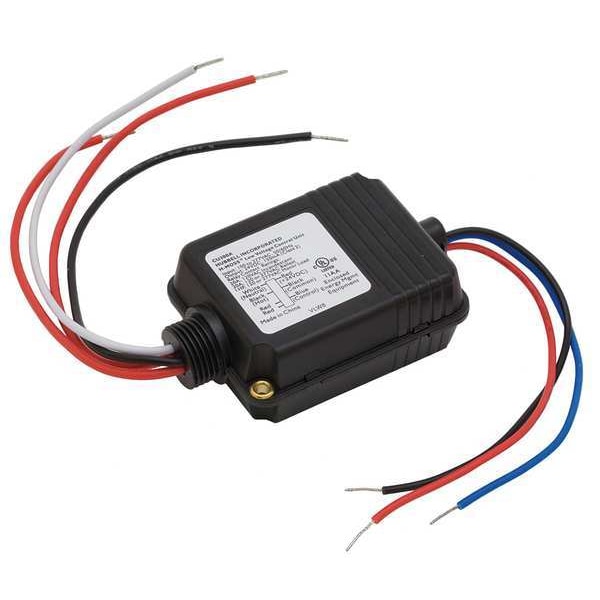

Hubbell Wiring Device-Kellems Occupancy Sensor Control Unit, 120to277V CU300M - main

Occupancy Sensor Control Unit, 120to277V

  • Mfr # CU300M

  • Zoro # G5399834

product price: $82.89
/ea
Free Shipping & Returns

Key Features

Dimensions
3.69"L x 2.33"W x 1.36"H
Depth
2 3/8 in
For Use With
24VDC Ceiling and Wall Mtd Occ Sensors, DSM Series SW
Color
Black
Width
1 3/8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CU300M
Zoro #
G5399834
UPC #
783585159362
Country of Origin
Multiple

Dimensions

Dimensions
3.69"L x 2.33"W x 1.36"H
Depth
2 3/8 in
Width
1 3/8 in
Height
3 3/4 in
Overall Width
2.33 in
Overall Depth
3.69 in
Overall Height
1.36 in

Details

Item
Control Unit
For Use With
24VDC Ceiling and Wall Mtd Occ Sensors, DSM Series SW
Color
Black
Standards
ASHRAE 90.1, cULus Listed to UL916, UL2043 Plenum Rated Per NEC(R) 2014 300.22 (C) (3)
Description/Special Features
Manual-On/Auto-Off
Color - Motion Sensing and Dimming
Black
Max. Capacity @ 120VAC
8A (LED), 16A (Fluorescent Ballast, Incandescent)
Includes
H-Moss Control Unit, Lighting Controls, Occupancy Sensors, Switches
Lighting Technology
Fluorescent, Incandescent
Output Voltage - Motion Sensing and Dimming
24 V DC @ 150mA
Operating Voltage - Motion Sensing and Dimming
120 to 277 V AC
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Item - Motion Sensing and Dimming
Control Unit
Voltage
120 to 277VAC
Use With - Motion Sensing and Dimming
Up to 4 Hubbell ATD, ATU, ATP, and AD2240 Series Sensors
Communication Method - Motion Sensing and Dimming
Hard Wired
Minimum Operating Temperature
32 Degrees F
Communication Method
Hard Wired
Compatible with Series
CU300
Sensor Capacity
1
Input Voltage
120 to 277V AC
Output Current
150 mA
Output Voltage
24V DC
Maximum Operating Temperature
104 Degrees F
Manufacturer Warranty
Limited
Compatible with Brand
Hubbell Wiring
Device Color
Black
Housing
Flame retardant UL 94-5VA thermoplastic
Storage Temperature
-20°F to 150°F (-29°C to 65°C); 0% to 90% non condensing relative humidity
Operating Temperature
32°F to 104°F (0°C to 40°C); 0% to 90% non condensing relative humidity
Power Supply
120-277V AC, 50/60Hz
AT Sensor/AAR Capacity
1 to 4 combined
Add-A-Relay
AAR
Power Output
24V DC, 150mA
Load Capacity
Incandescent - 0 to 1800 watts, 120V Ballast- 0 to 2400 watts, 277V Ballast- 0 to 5540 watts

Description

Control Unit, Compatible with Series CU300, Lighting Technology Fluorescent, Incandescent, Communication Method Hard Wired, Input Voltage 120 to 277V AC, Output Voltage 24V DC, Output Current 150 mA, Compatible with Brand Hubbell Wiring, Includes H-Moss Control Unit, Lighting Controls, Occupancy Sensors, Switches, Standards ASHRAE 90.1, cULus Listed to UL916, UL2043 Plenum Rated Per NEC(R) 2014 300.22 (C) (3), Overall Depth 3.69 in, Overall Height 1.36 in, Overall Width 2.33 in
