  11. Pilot Lit Wall Swtch, 1-Pole, 120/277V, 15A

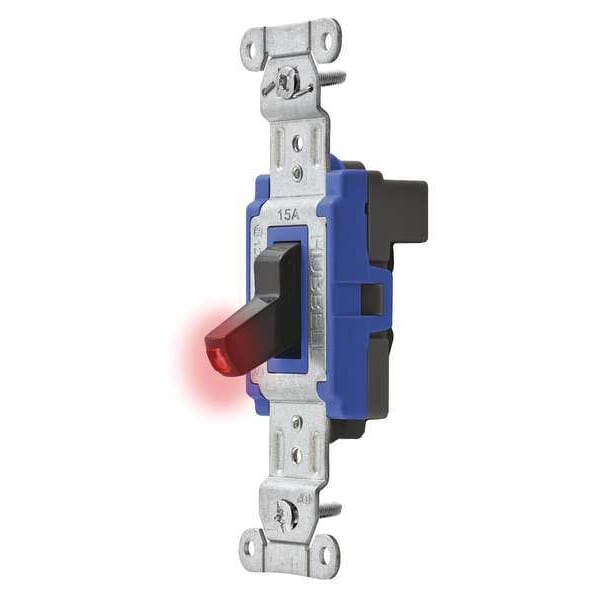

Hubbell Wiring Device-Kellems Pilot Lit Wall Swtch, 1-Pole, 120/277V, 15A SNAP1201PLBK - main

Pilot Lit Wall Swtch, 1-Pole, 120/277V, 15A

  • Mfr # SNAP1201PLBK

  • Zoro # G4633282

product price: $16.85
/ea

Key Features

Switch Type
Single Pole
Switch Style
Toggle
Amps AC
15 A
Color
Black
Voltage AC
120 to 277
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SNAP1201PLBK
Zoro #
G4633282
UPC #
783585186375
Country of Origin
United States

Dimensions

Overall Width
1.3 in
Overall Height
1.7 in
Height
1.74 in
Width
1.3 in
Length
4.18 in
Dimensions
4.18 in x 1.3 in x 1.74 in

Details

Item
Pilot Light Wall Switch
Switch Type
Single Pole
Switch Style
Toggle
Amps AC
15 A
Color
Black
Voltage AC
120 to 277
Locking
No
Switch Function
Maintained
Wiring Method
Back
Application Environment
Commercial
Description/Special Features
Light On with Load On
Rated HP
1/2 to 2
Antimicrobial
No
Standards
UL Listed
Wire Connection Type
Modular Wiring
Maximum Operating Temperature
167 Degrees F
Minimum Operating Temperature
-40 Degrees F
Voltage Rating
120/277V AC
Pilot Light
Yes
Current Rating
15 A
Number of Switches
1
Resistance Properties
Impact Resistant
Market
Industrial
Horsepower Rating
2 hp
Housing Material
Thermoplastic
Type
Toggle
Style
Single Pole
Overload
Minimum 4.8 times rated current for 100 cycles
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Temperature Rise
30°C maximum at rated current
Contacts
Silver Alloy
Toggle Material
Thermoplastic
Terminal Accommodations
Uses SNAPConnect Connector
Terminals
Brass
Toggle Color
Black
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Max. Working Voltage
277V AC
Base Material
Thermoplastic, Black
Top Material
Thermoplastic, Blue
Max. Continuous Current
15A
Flammability
UL 94V-2
Voltage Rating Description
120-277 VAC
Item Type
Single Pole Pilot Toggle Switch
Indicator(s) Type
Red LED
Temperature Rise - Max.
30°C maximum at rated current
Number Of Poles
Single Pole
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Industry Standard(s)
UL Listed
Amperage Rating
15 A
Current / Amperage Rating
15 A
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 15A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - Uses SNAPConnect Connector
Indicator
Light On with Load On
Material
Thermoplastic
Series
Pilot Light

Description

Pilot Light Wall Switch, Color Black, Current Rating 15 A, Pilot Light Yes, Switch Function Maintained, Switch Type Single Pole, Voltage Rating 120/277V AC, Wiring Method Back, Horsepower Rating 2 hp, Locking Style Not Applicable, Number of Switches 1, Resistance Properties Impact Resistant, Standards UL Listed, Switch Style Toggle, Wire Connection Type Modular Wiring, Housing Material Thermoplastic, Market Industrial, Maximum Operating Temperature 167 Degrees F
