  11. Pilot Lit Wall Swtch, 1-Pole, 120/277V, Blk

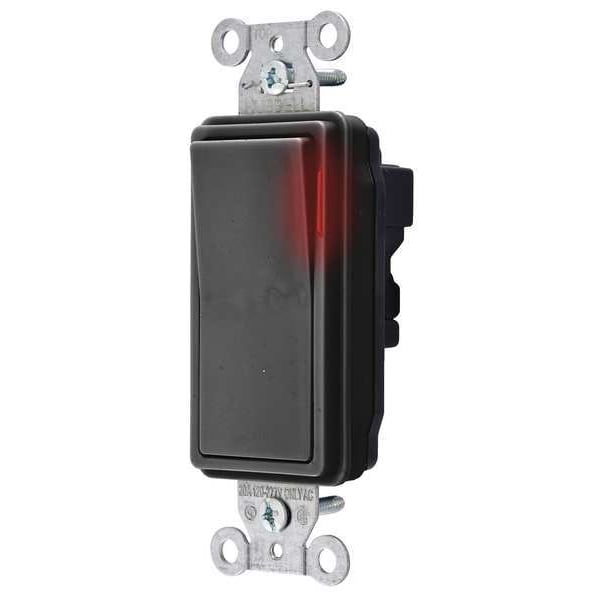

Hubbell Wiring Device-Kellems Pilot Lit Wall Swtch, 1-Pole, 120/277V, Blk SNAP2101PLBK - main

Pilot Lit Wall Swtch, 1-Pole, 120/277V, Blk

  • Mfr # SNAP2101PLBK

  • Zoro # G4629301

product price: $26.71
/ea

Key Features

Switch Type
Single Pole
Switch Style
Rocker
Amps AC
15 A
Color
Black
Voltage AC
120 to 277
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SNAP2101PLBK
Zoro #
G4629301
UPC #
783585186412
Country of Origin
United States

Dimensions

Overall Width
1.4 in
Overall Height
1.5 in
Length
4.28 in
Width
1.44 in
Height
1.54 in
Dimensions
4.28 in x 1.44 in x 1.54 in

Details

Item
Pilot Light Wall Switch
Switch Type
Single Pole
Switch Style
Rocker
Amps AC
15 A
Color
Black
Voltage AC
120 to 277
Locking
No
Switch Function
Maintained
Wiring Method
Back
Application Environment
Commercial
Antimicrobial
No
Description/Special Features
Light On with Load On
Standards
UL Listed
Rated HP
1/2 to 2
Voltage Rating
120/277V AC
Maximum Operating Temperature
167 Degrees F
Wire Connection Type
Modular Wiring
Grounding
Grounded
Market
Industrial
Current Rating
15 A
Minimum Operating Temperature
-40 Degrees F
Pilot Light
Yes
Resistance Properties
Impact Resistant
Horsepower Rating
2 hp
Number of Switches
1
Housing Material
Thermoplastic
Style
Single Pole
Type
Rocker/Decorator
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Overload
Minimum 4.8 times rated current for 100 cycles
Top Material
Thermoplastic, Blue
Terminals
Brass
Contacts
Silver Alloy
Toggle Color
Black
Temperature Rise
30°C maximum at rated current
Max. Working Voltage
277V AC
Base Material
Thermoplastic, Black
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Flammability
UL 94V-2
Terminal Accommodations
Uses SNAPConnect Connector
Max. Continuous Current
15A
Rocker Material
Thermoplastic
Voltage Rating Description
120-277 VAC
Indicator(s) Type
Red LED
Item Type
Single Pole Style Line Pilot Decorator Switch
Series
Pilot Light
Industry Standard(s)
UL Listed
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Number Of Poles
Single Pole
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 15A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - Uses SNAPConnect Connector
Current / Amperage Rating
15 A
Amperage Rating
15 A
Material
Thermoplastic
Indicator
Light On with Load On
Temperature Rise - Max.
30°C maximum at rated current

Description

Pilot Light Wall Switch, Color Black, Current Rating 15 A, Pilot Light Yes, Switch Function Maintained, Switch Type Single Pole, Voltage Rating 120/277V AC, Wiring Method Back, Horsepower Rating 2 hp, Locking Style Not Applicable, Number of Switches 1, Resistance Properties Impact Resistant, Standards UL Listed, Switch Style Rocker, Wire Connection Type Modular Wiring, Grounding Grounded, Housing Material Thermoplastic, Market Industrial, Maximum Operating Temperature 167 Degrees F
