Shop HUBBELL WIRING DEVICE-KELLEMS

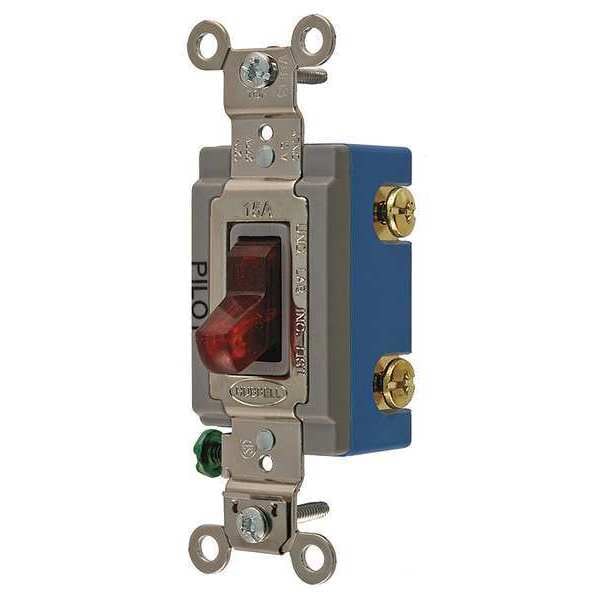

Pilot Lite Wall Swtch, 3-Way, 120/277V, 15A

  • Mfr # HBL1203PL

  • Zoro # G0429992

product price:
$
75.99
/ea

Key Features

Switch Type
3-Way
Switch Style
Toggle
Amps AC
15 A
Color
Red
Voltage AC
120 to 277
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
HBL1203PL
Zoro #
G0429992
UPC #
783585430324
Country of Origin
China
Item
Wall Switch
Switch Type
3-Way
Switch Style
Toggle
Amps AC
15 A
Color
Red
Voltage AC
120 to 277
Locking
No
Switch Function
Maintained
Wiring Method
Back/Side
Application Environment
Industrial
Antimicrobial
No
Description/Special Features
Light On with Load On
Rated HP
1/2
Voltage
120/277V AC
Standards
UL Listed
Voltage Rating
120/277V AC
Pilot Light
Yes
Wire Connection Type
Screw Terminals
Number of Switches
1
Switch Material
Nylon
Resistance Properties
Shatter and Crack Resistant, Impact Resistant
Market
Industrial
Current Rating
15 A
Minimum Operating Temperature
-40 Degrees F
Features
Large Brass Binding Head Screws with Deep Slots, Strip Gauge for Accurate Wiring
Maximum Operating Temperature
167 Degrees F
Style
Three Way
Type
Toggle
Switch Grade
Industrial
Listing and Certifications
Listed to Standard UL 20, CSA Certified, Meets NEMA WD1
Max. Working Voltage
277V AC
Switch Handle Positions
2
Wiring Style
Back and Side Wired
Nylon Wall Plate
NP1R
Operating Temperatures
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Product Type
Toggle-switches
Terminal Accommodations
#14 AWG min. - #10 AWG max. Solid and stranded copper wire only
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Temperature Rise
30°C maximum at rated current
Flammability
UL 94V-2
Max. Continuous Current
15A
Amperage
15A
Toggle Color
Red
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Overload
Minimum 4.8 times rated current for 100 cycles
Amperage Rating
15 A
Application
Back and Side Wired
Temperature Rise - Max.
30°C maximum at rated current
Voltage Rating Description
120-277 VAC
Connectivity
Back and Side Wired
Number Of Poles
Single Pole
Series
Extra Heavy Duty
Industry Standard(s)
UL Listed
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 15A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. Solid and stranded copper wire only
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Indicator
Light On with Load On
Action
SPDT
Current / Amperage Rating
15 A
Illuminated
No
Nightlight
No
Grounding
Grounded

Description

Wall Switch, Color Red, Current Rating 15 A, Illuminated No, Pilot Light Yes, Switch Function Maintained, Switch Type 3-Way, Voltage Rating 120/277V AC, Wiring Method Back/Side, Horsepower Rating Not Applicable, Locking Style Not Applicable, Maximum Wire Size 10 AWG, Minimum Wire Size 14 AWG, Mount Hole Center-to-Center Height 3.3 in, Nightlight No, Number of Switches 1, Resistance Properties Shatter and Crack Resistant, Impact Resistant, Standards UL Listed, Switch Style Toggle
