  6. Pin & Sleeve Plug, 100 A, 120/208V AC, Three Phase, 3 Pole, IEC Grounding, Yellow, NEMA Not Rated

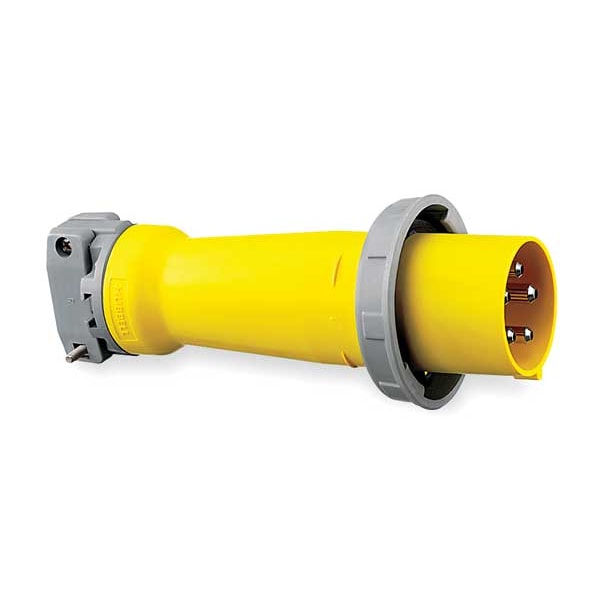

Hubbell Wiring Device-Kellems Pin & Sleeve Plug, 100 A, 120/208V AC, Three Phase, 3 Pole, IEC Grounding, Yellow, NEMA Not Rated M5100P9 - main

Pin & Sleeve Plug, 100 A, 120/208V AC, Three Phase, 3 Pole, IEC Grounding, Yellow, NEMA Not Rated

  • Mfr # M5100P9

  • Zoro # G0925057

product price:  $1,042.20
/ea
Free Shipping & Returns

Key Features

Voltage Rating
120/208V AC
Number of Poles
3
Number of Wires
5
IP Rating
IP67
Wire Connection Type
Screw Terminals
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
M5100P9
Zoro #
G0925057
UPC #
783585510040
Country of Origin
United States

Dimensions

Overall Length
12.63 in
Minimum Wire Size
3 AWG
For Minimum Cable Diameter
1.065 in
For Maximum Cable Diameter
1.94 in
Maximum Wire Size
1/0 AWG
Face Diameter
3.44 in
Display Size
Standard Sized
Wire Size
#3 AWG to #1/0 AWG

Details

Item
Pin & Sleeve Plug
Current Rating
100 A
Voltage Rating
120/208V AC
Phase
Three
Number of Poles
3
Number of Wires
5
IP Rating
IP67
Wire Connection Type
Screw Terminals
Connection Orientation
Straight
Housing Color
Yellow
Cap Type
No Cap or Cover
Standards
CSA Certified LR280C, IEC 60309-1, IEC 60309-2, UL E146033
Resistance Properties
Impact Resistant, Moisture Resistant, Watertight
Body Material
Nylon
Body Material - Pin and Sleeve
Nylon
Features
Gasketed Sealing Ring Provides Watertight Seal, Raised Collar Surrounds Each Phase Pin
Grounding Style
IEC
HP
10 hp
Switch Rated
No
Maximum Operating Temperature
75 Degrees C
Housing Material
Non-Metallic
NEMA Enclosure Rating
Not Rated
Shrouded
Yes
Power Indicating Light
No
Horsepower Rating
10 hp
Reverse Service
No
Minimum Operating Temperature
-40 Degrees F
Material
Composite
OEM Brand Name
Hubbell Wiring Device-Kellems
Environmental Conditions
Watertight
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstand 3000V AC Electrical - Max. Working Voltage - 600V RMS Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17 Environmental - Ingress Protection - IP67 Suitability Environmental - Moisture Resistance - Watertight per IEC 60309-1 Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum - 40°C w/o impact Mechanical - Impact Resistance - Per CSA C22.2 No. 182.1 / UL1682 Mechanical - Product Identification - Ratings are a permanent part of the device housing Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
Style
Standard Service
Industry Standard(s)
CSA Certified File LR280C UL Classified to IEC 60309-1 IEC 60309-2 UL Listed, File E146033
Wattage
20800
Material - Mounting Hardware
Cord Mounted
Application
Marine Wiring Devices
Cord Type
All Portable
Series
Corrosion Resistant
Connection Type
Screw Terminals

Description

Corrosion Resistant Devices that Withstand the Most Abusive Environments - Hubbell offers a superior grade of 100A IEC Pin and Sleeve designed for use in the most demanding environments. These devices feature nickel plated solid brass pins for long life and reliable electrical contact in the most corrosive environments. They have a high visibility yellow supertough nylon housing. The heavy duty external cord clamps provide maximum cord retention to maintain secure terminations. The screws and fasteners are made from stainless steel.
• Solid one-piece pins for reliable electrical contact
• Gasketed sealing ring provides watertight seal
• Raised collar surrounds each phase pin
