  6. Pin & Sleeve Plug, 30/32 A, 380/415V AC, Three Phase, 3 Pole, IEC Grounding, Red, NEMA 4X

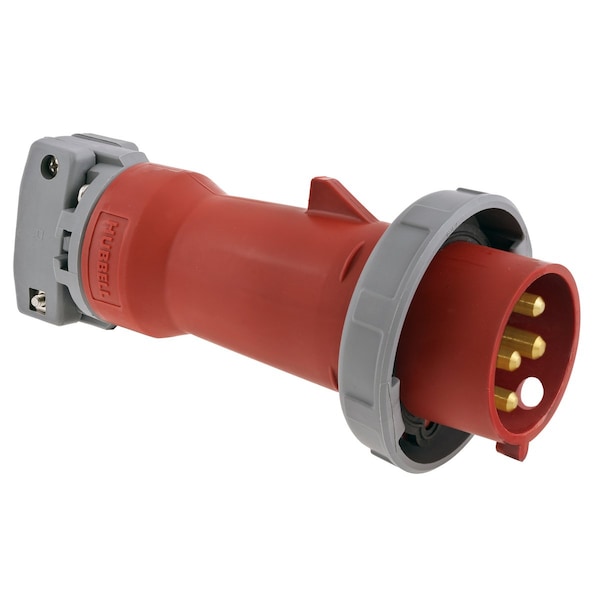

Hubbell Wiring Device-Kellems Pin & Sleeve Plug, 30/32 A, 380/415V AC, Three Phase, 3 Pole, IEC Grounding, Red, NEMA 4X HBL430P6W - main

Pin & Sleeve Plug, 30/32 A, 380/415V AC, Three Phase, 3 Pole, IEC Grounding, Red, NEMA 4X

  • Mfr # HBL430P6W

  • Zoro # G400701702

product price:  $329.99
/ea
Free Shipping & Returns

Key Features

Voltage Rating
380/415V AC
Phase
Three
Number of Poles
3
Number of Wires
4
IP Rating
IP69K
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL430P6W
Zoro #
G400701702
UPC #
783585574547
Country of Origin
United States

Dimensions

Display Size
Standard Sized Product
Wire Size
#12 AWG to #8 AWG

Details

Item
Pin & Sleeve Plug
Current Rating
30/32 A
Voltage Rating
380/415V AC
Phase
Three
Number of Poles
3
Number of Wires
4
IP Rating
IP69K
Wire Connection Type
Screw Terminals
Connection Orientation
Straight
Housing Color
Red
Cap Type
No Cap or Cover
Standards
CSA, IEC 60309-1, IEC 60309-2, UL 1682
Resistance Properties
Impact Resistant, Moisture Resistant, Watertight
Grounding Style
IEC
Material
Thermoplastic
Application
High Ampacity Watertight Connections
Industry Standard(s)
CSA Certified File LR280C UL Classified to IEC 60309-1 IEC 60309-2 UL Listed to UL1682
Material - Mounting Hardware
Cord Mounted
Insulation
Insulated Body
Environmental Conditions
Watertight
Style
Standard Service
Dielectric Strength
Withstands 3000V Minimum in
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstand 3000V AC Electrical - Max. Working Voltage - 600V RMS Environmental - Flammability -V-0 Environmental - Ingress Protection - Type 3R, 3RX, 4X and IP68, IP69k Suitability Environmental - Moisture Resistance - Watertight per IEC 60309-1 Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum - 40°C w/o impact Mechanical - Impact Resistance - Per CSA C22.2 No. 182.1 / UL1682 Mechanical - Product Identification - Ratings are a permanent part of the device housing Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
Cord Type
All Portable
Number Of Conductors
4-Wire Grounding
Series
HBL Heavy Duty
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
NEMA Enclosure Rating
4X

Description

Hubbell Wiring Device Kellems, IEC Pin and Sleeve, Plug, 30/32A 380-415V, 3-Pole 4-Wire Grounding, 4X/IP69K
