  9. Pin & Sleeve Receptacle, 60/100 A, - Phase, 3 Pole, NEMA 4X

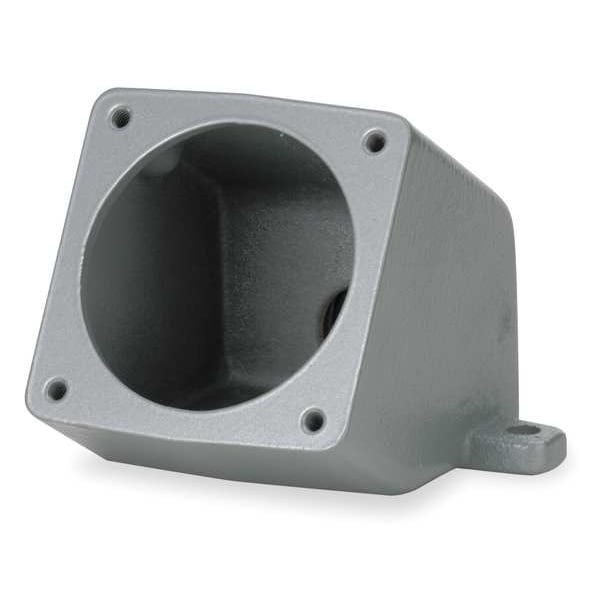

Hubbell Wiring Device-Kellems Pin & Sleeve Receptacle, 60/100 A, - Phase, 3 Pole, NEMA 4X MB601007W - main

Pin & Sleeve Receptacle, 60/100 A, - Phase, 3 Pole, NEMA 4X

  • Mfr # MB601007W

  • Zoro # G0687592

product price: $343.99
/ea
Free Shipping & Returns

Key Features

Current Rating
60/100 A
Type
Back Box
Color
Gray
Material
Aluminum
IP Rating
IP67
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
MB601007W
Zoro #
G0687592
UPC #
783585011325
Country of Origin
China

Dimensions

Width
6 1/8 in
Length
8 1/2 in
Length (Straight Wireway)
8 1/2 in
Overall Height
7.1 in
Hub Diameter
1.5 in
Overall Length
9.9 in
Overall Width
6.7 in
Display Size
For 60 and 100 Amp Devices

Details

Item
Mounting Box
Current Rating
60/100 A
Type
Back Box
Color
Gray
Material
Aluminum
IP Rating
IP67
NEMA Enclosure Rating
4X
Includes
Mounting Screws
For Use With
Insulgrip Pin and Sleeve Device
Housing Color
Gray
Resistance Properties
Impact Resistant
Hub
1 1/2 in
Number of Poles
3
Amps
60/100
Angle
15 Degrees
Box Type
Feed Through
Use With
Insulgrip Pin and Sleeve Devices
Number of Wires
4
Features
UV Stabilized
Standards
UL Listed
Material Type
Metallic
Compatible with Series
Insulgrip
Box Angle
15 Degrees
UL 94 Flammability Rating
5VA, V-0
Minimum Operating Temperature
-40 Degrees C
Maximum Operating Temperature
75 Degrees C
Number of Gangs
1
Mount Type
Surface
Hub Type
Dead End
Operating Temp. Range
-40° C to 75° C
Cable Entry
Through Hub
Style
15 Degree
Knockouts
1 1/2" NPT Hub
OEM Brand Name
Hubbell Wiring Device-Kellems
Number Of Outlets
Accepts 1-Device
Series
Back Boxes and Adapters
Industry Standard(s)
UL Listed
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 3,000V AC Electrical - Max Working Voltage - 600V AC RMS Environmental - Flammability - UL94-5VA and V-0 classification Environmental - Operating Temperatures - Max. Continuous: 75° C Min. Continuous: -40° C w/o impact Mechanical - Impact Resistance - In accordance with UL746C Mechanical - Product Identification - Identification and ratings are a part of the external label and molded into the receptacle mount Mechanical - Terminal Identification - Terminals identified in accordance with North American and International conventions
Material - Mounting Hardware
Mounting Screws
Application
Metallic
Construction
Cast

Description

Hubbell manufactures an extensive line of back boxes for use with UL 1686 Pin and Sleeve devices. Each back box is designed to give the user the maximum amount of wiring room while achieving grounding to metallic conduit.
• Industrial Grade
• Accessories
• Back Box
