  9. Recep Wiring Mod, 125VAC, 6in, Stranded

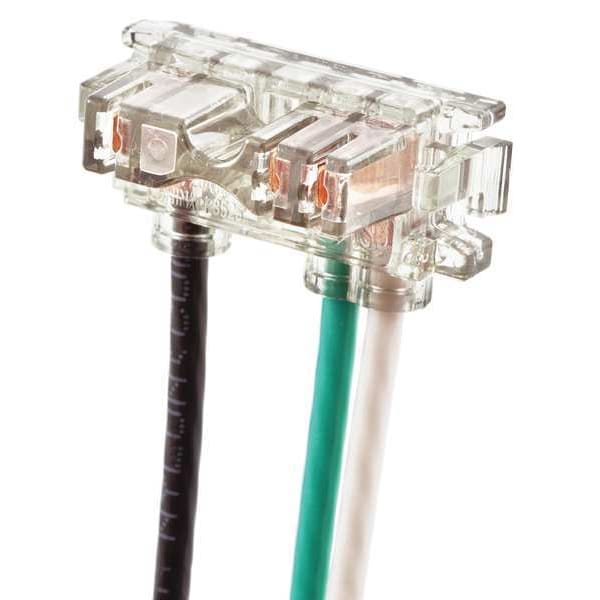

Hubbell Wiring Device-Kellems Recep Wiring Mod, 125VAC, 6in, Stranded SNAP2RNA - main

Recep Wiring Mod, 125VAC, 6in, Stranded

  • Mfr # SNAP2RNA

  • Zoro # G4546105

product price: $3.95
/ea

Key Features

Type
Pigtailed Connector
Color
Clear
Material
Polycarbonate
Current Rating
15 A - 20 A
For Use With
SNAPconnect(R) II Receptacles
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SNAP2RNA
Zoro #
G4546105
UPC #
783585251974
Country of Origin
China

Dimensions

Wire Length
6 in
Lead Length
6 in
Wire Size
#12 AWG
Dimensions
1.48 in x 0.78 in x 0.63 in
Display Size
Standard
Cord Dia. Range
Pre-Wired #12 THHN

Details

Item
SNAPConnect Connector
Type
Pigtailed Connector
Color
Clear
Material
Polycarbonate
Current Rating
15 A - 20 A
For Use With
SNAPconnect(R) II Receptacles
Standards
CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186
Voltage
125V AC
Amps
15 or 20
Number of Wires
3
Number of Poles
2
Wire Type
Stranded
Phase
Single Phase
Voltage Rating
125 V
Series
Extra Heavy Duty
Insulation
Insulated Body
Number Of Wires
3-Wire
Nema Rating
Non-NEMA
Dielectric Strength
Withstands 2,000V minimum
Number Of Poles
2-Pole
Amperage
20 A
Number Of Conductors
3-Wire Grounding
Connectivity
Connectorized
Brand
Hubbell Wiring Device-Kellems
Carton Quantity
20
Module Type
Receptacle
Housing Material
Polycarbonate
Maximum Operating Temperature
75 Degrees C
Application
Straight Blade Devices
For Location
Indoor
Wire Connection Types
Snap-In Module
Connector Type
Pigtail
Housing Color
Clear
Conductor Type
THHN
Minimum Operating Temperature
-40 Degrees C
Terminal Body
PBT
Flammability
UL 94V-2
Terminal Identification
Terminal Wire Leads- Identified in accordance with UL 498
Wire
#12 AWG, T90 Nylon FT-1, PVC 90°C (min)
Dielectric Voltage
Withstands 2,000V minimum
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Current Interrupting
Receptacle certified for current interrupting at full rated current

Description

SNAPConnect® Devices offer superior installation efficiency for new construction and renovations, while delivering safe, reliable connections. Instead of conventional wiring methods, SNAPConnect’s modular connector is installed during rough-in in lieu of pigtails. Once the walls are up, the protective covering is removed, and the terminal is simply snapped into the SNAPConnect device for a consistent connection every time. Once installed, SNAPConnect’s modular design enables simple device change-out by maintenance personnel.
• Transparent housing to inspect contacts
• Audible SNAP, indicates solid connection
• Reduces installation time
• Fully insulated design
