  9. Receptacle, 3R, 4X, 12K, Stud, White

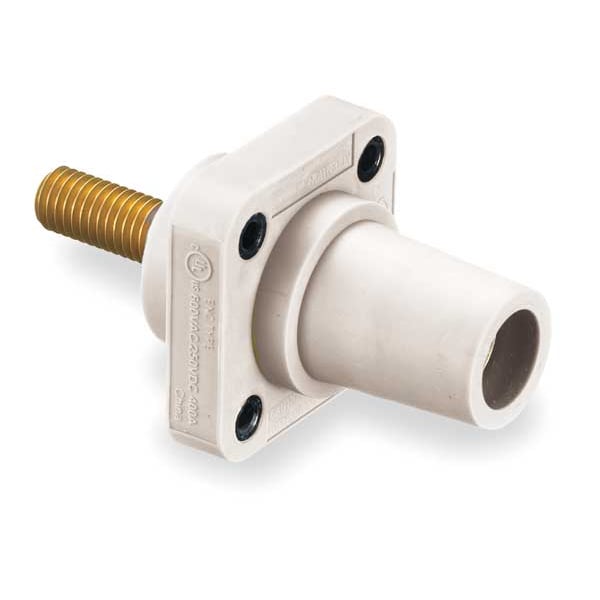

Hubbell Wiring Device-Kellems Receptacle, 3R, 4X, 12K, Stud, White HBLFRSW - main

Receptacle, 3R, 4X, 12K, Stud, White

  • Mfr # HBLFRSW

  • Zoro # G1555723

product price: $51.07
/ea

Key Features

Type
Receptacle
Series
16
Terminal Connection
Threaded Stud
Male/Female
Female
Current Rating
400 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBLFRSW
Zoro #
G1555723
UPC #
783585112718
Country of Origin
China

Dimensions

Overall Length
4.1 in
Maximum Wire Size
4/0 AWG
Minimum Wire Size
4 AWG
Overall Width
2.2 in
Wire Size
#4 AWG to #4/0 AWG
Display Size
Standard Sized Product

Details

Item
Receptacle
Type
Receptacle
Series
16
Terminal Connection
Threaded Stud
Male/Female
Female
Current Rating
400 A
Voltage Rating
600V AC, 600V DC
NEMA Rating
12K, 3R, 4X
Single Pole Device Style
Taper Nose
Color
White
Standards
ANSI/NFPA 70, cUL Listed, National Electric Code (NEC), UL Enclosure Types 3R, 4X, 12, UL Listed
Conductor Material
Brass
Mounting
Panel
Material
Thermoplastic Elastomer
Amps AC/DC
400AC/DC
Amps AC
400 A
For Location
Indoor
Contact Material
Brass
Flange Shape
Square
Phase
Single
UL 94 Flammability Rating
HB
Housing Color
White
Gender
Female
Housing Material
Thermoplastic Elastomer
Compatible with Series
16
Receptacle Gender
For Male Plugs
End Type
Taper Nose
Connection Orientation
Straight
Terminal Connection Type
Threaded Stud
NEMA Enclosure Rating
12, 3R, 4X
Mounting Style
Through Hole Mounting
Material - Mounting Hardware
Threaded Thru-Hole
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Performance
Electrical - Amperage Rating - 400A Maximum Electrical - Voltage Ratings - 600V AC Maximum 250V DC Maximum Environmental - Flammability - HB per UL94 or CSA 22.2. 0.17 Mechanical - Product Identification - Ratings are a permanent part of device Mechanical - Terminal Accommodation - #4 to 4/0 AWG
Number Of Wires
1-Wire
Current / Amperage Rating
400 A
Item Type
Panel Mount Receptacle
Industry Standard(s)
National Electric Code (NEC), ANSI/NFPA 70 UL and cUL Listed UL Enclosure Types 3R, 4X, 12
Amperage Rating
400 A
Wattage
240000
Application
High Ampacity Connections
Style
Stud Type, Through Hole Mounting, Female
Connectivity
Stud Type
Voltage Rating Description
600V AC/DC
Number Of Poles
1-Pole

Description

The HUBBELL Receptacle, Series 16, is a single pole panel mount device rated for up to 400A at 600V AC or 250V DC. This female receptacle features a stud-type connection and is rated for up to 400A at 600V AC or 250V DC. It is constructed with a thermoplastic elastomer housing and brass contacts, intended for indoor installation.


Key Features of the HUBBELL Series 16 Panel Mount Receptacle:

  • Amperage/Voltage Rating: Rated for 400A maximum at 600V AC or 250V DC

  • Connection Type: Threaded stud terminal; straight orientation

  • Wire Accommodation: Accepts wire sizes from #4 AWG to #4/0 AWG

  • NEMA Enclosure Ratings: Rated for NEMA Types 3R, 4X, and 12

  • Material Construction: Thermoplastic elastomer housing with brass conductor/contact material

  • Mounting Style: Through hole mounting on panels; square flange shape

  • Device Compatibility: Compatible with Series 16 devices; accepts male plugs only (female receptacle)

  • Standards Compliance: Complies with: ANSI/NFPA 70 (NEC); UL Listed; cUL Listed; UL94 HB flammability rating
