  9. Receptacle, 4-4/0, Male, Ylw, Threaded Stud

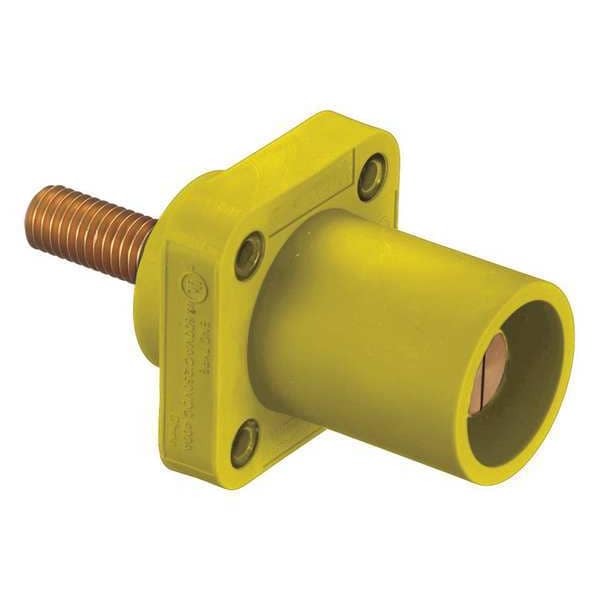

Hubbell Wiring Device-Kellems Receptacle, 4-4/0, Male, Ylw, Threaded Stud HBLMRSY - main

Receptacle, 4-4/0, Male, Ylw, Threaded Stud

  • Mfr # HBLMRSY

  • Zoro # G6097271

product price: $47.55
/ea

Key Features

Type
Receptacle
Series
16
Terminal Connection
Threaded Stud
Male/Female
Male
Current Rating
400 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBLMRSY
Zoro #
G6097271
UPC #
783585113067
Country of Origin
China

Dimensions

Power Terminals Wire Size
#4 to 4/0
Overall Width
2.2 in
Minimum Wire Size
4 AWG
Overall Length
4.15 in
Maximum Wire Size
4/0 AWG
Display Size
Standard Sized Product
Wire Size
#4 AWG to #4/0 AWG

Details

Item
Receptacle
Type
Receptacle
Series
16
Terminal Connection
Threaded Stud
Male/Female
Male
Current Rating
400 A
Voltage Rating
600V AC, 600V DC
NEMA Rating
12, 3R, 4X
Material
Thermoplastic Elastomer
Fits
UL1691
Conductor Material
Brass
Mounting
Threaded Stud
Amps AC/DC
300/400AC/DC
Cable Range
4 to 4/0
Color
Yellow
Standards
ANSI/NFPA 70, cUL Listed, National Electric Code (NEC), UL Enclosure Types 3R, 4X, 12, UL Listed
Single Pole Device Style
Taper Nose
Amps AC
400 A
Includes Mounting Hardware
Yes
Housing Color
Yellow
For Location
Indoor
Gender
Male
Flange Shape
Square
Phase
Single
End Type
Taper Nose
Housing Material
Thermoplastic Elastomer
Terminal Connection Type
Threaded Stud
NEMA Enclosure Rating
12, 3R, 4X
Mounting Style
Through Hole Mounting
Compatible with Series
16
Contact Material
Brass
Connection Orientation
Straight
Number Of Poles
1-Pole
Application
High Ampacity Connections
Current / Amperage Rating
400 A
Wattage
240000
Item Type
Flanged Single
Material - Mounting Hardware
Screw Mounting
Performance
Electrical - Amperage Rating - 400A Maximum Electrical - Voltage Ratings - 600V AC Maximum 250V DC Maximum Environmental - Flammability - HB per UL94 or CSA 22.2. 0.17 Mechanical - Product Identification - Ratings are a permanent part of device Mechanical - Terminal Accommodation - #4 to 4/0 AWG
Connectivity
Screw Terminals
Voltage Rating Description
600V AC/DC
Industry Standard(s)
National Electric Code (NEC), ANSI/NFPA 70 UL and cUL Listed UL Enclosure Types 3R, 4X, 12
Amperage Rating
400 A
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Style
Stud Type, Through Hole Mounting, Male

Description

The HUBBELL Receptacle, Series 16, is a single pole male receptacle rated for use in high ampacity electrical connections. It accommodates wire sizes from #4 AWG to 4/0 AWG and features a threaded stud terminal connection with through hole mounting. The housing is constructed from thermoplastic elastomer and includes screw terminals.


Key Features of the HUBBELL Series 16 Male Receptacle:

  • Amperage Rating: Rated up to 400 A (300/400A AC/DC)

  • Voltage Rating: Supports up to 600V AC or 250V DC

  • Cable Range: Accepts #4 AWG to 4/0 AWG conductors

  • Terminal Connection Type: Threaded stud with screw terminals

  • Material: Brass contacts; thermoplastic elastomer housing

  • NEMA Enclosure Ratings: Types 12, 3R, and 4X

  • Mounting Style: Through hole mounting with included hardware

  • Standards Compliance: Meets ANSI/NFPA 70, NEC, UL Listed, cUL Listed requirements
