  6. Receptacle Connector, 60 A, 250/600V AC, Single Phase, 2 Pole, Grounded Grounding, NEMA Not Rated

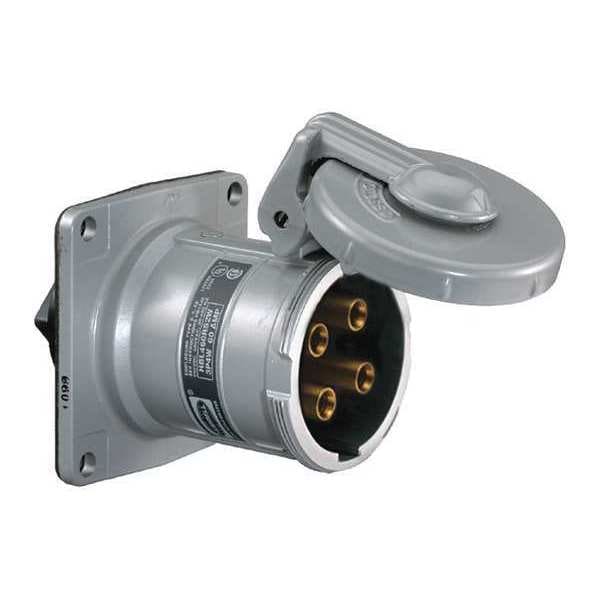

Hubbell Wiring Device-Kellems Receptacle Connector, 60 A, 250/600V AC, Single Phase, 2 Pole, Grounded Grounding, NEMA Not Rated HBL460RS2WR - main

Receptacle Connector, 60 A, 250/600V AC, Single Phase, 2 Pole, Grounded Grounding, NEMA Not Rated

  • Mfr # HBL460RS2WR

  • Zoro # G3161606

product price:  $537.99
/ea
Free Shipping & Returns

Key Features

Current Rating
60 A
NEMA Receptacle Configuration
Non-NEMA
Voltage Rating
250/600V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL460RS2WR
Zoro #
G3161606
UPC #
783585012452
Country of Origin
United States

Dimensions

Wire Size
#6 To #4 AWG copper wire only
Display Size
Standard Sized Product

Details

Item
Receptacle Connector
Current Rating
60 A
NEMA Receptacle Configuration
Non-NEMA
Voltage Rating
250/600V AC
Phase
Single
Number of Poles
2
Number of Wires
4
IP Rating
Not Rated
Application
Metallic with Nylon Shroud
NEMA Enclosure Rating
Not Rated
Series
UL 1686 Class 1 Insulgrip®
Wire Connection Type
Screw Terminals
Standards
CSA Certified, Certified for current interrupting at full rated current., UL Listed, UL Standard 1682, UL50 and UL1010 (plugs only)
Grounding
Style 2
Flange Type
Flanged
Grounding Style
Grounded
Cover Type
No Cover
Housing Color
Black
Resistance Properties
Impact Resistant, Moisture Resistant, Watertight
Material
Thermoplastic
Temp. Rise
Max 30A Deg Ctemperature rise at full rated current after 50 cycles of overload at 150% of rated current.
Terminal Designations
Terminals identified in accordance with UL1686 (1, 2, 3, Green).
Lock Type
insulgrip-devices
Flange Material
Epoxy Painted Aluminum
Flammability
UL 94V-0 and CSA C22.2 No.0.17
Operating Temp.
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
OEM Brand Name
Hubbell Wiring Device-Kellems
Wattage
36000
Environmental Conditions
Watertight
Style
Reversed Service,Style 2 Grounding
Amperage Rating
60 A
Material - Mounting Hardware
Screw Mounting

Description

Recipticale 4 Wire 3 Plug
