  9. Receptacle, Double Set Screw, Blue, Male

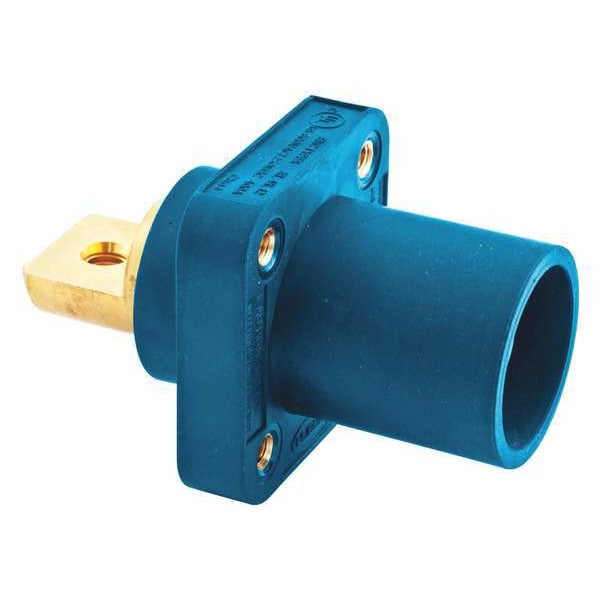

Hubbell Wiring Device-Kellems Receptacle, Double Set Screw, Blue, Male HBLMRBBL - main

Receptacle, Double Set Screw, Blue, Male

  • Mfr # HBLMRBBL

  • Zoro # G6110842

product price: $51.15
/ea

Key Features

Type
Receptacle
Series
16
Terminal Connection
Double Set Screw
Male/Female
Male
Current Rating
400 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBLMRBBL
Zoro #
G6110842
UPC #
783585192598
Country of Origin
China

Dimensions

Power Terminals Wire Size
#4 to 4/0
Overall Length
3.61 in
Overall Width
2.2 in
Minimum Wire Size
4 AWG
Maximum Wire Size
4/0 AWG
Display Size
Standard Sized Product
Wire Size
#4 AWG to #4/0 AWG

Details

Item
Receptacle
Type
Receptacle
Series
16
Terminal Connection
Double Set Screw
Male/Female
Male
Current Rating
400 A
Voltage Rating
600V AC, 600V DC
NEMA Rating
12, 3R, 4X
Conductor Material
Brass
Mounting
Threaded Hole
Cable Range
4 to 4/0
Color
Blue
Fits
UL1691
Material
Thermoplastic Elastomer
Standards
ANSI/NFPA 70, cUL Listed, National Electric Code (NEC), UL Enclosure Types 3R, 4X, 12, UL Listed
Amps AC/DC
300/400AC/DC
Single Pole Device Style
Taper Nose
Amps AC
400 A
Gender
Male
NEMA Enclosure Rating
12, 3R, 4X
Compatible with Series
16
Contact Material
Brass
Terminal Connection Type
Bus Bar
Flange Shape
Square
Mounting Style
Threaded Mounting
End Type
Taper Nose
Connection Orientation
Straight
Includes Mounting Hardware
Yes
Housing Material
Thermoplastic Elastomer
Phase
Single
Housing Color
Blue
For Location
Indoor
Application
High Ampacity Connections
Industry Standard(s)
National Electric Code (NEC), ANSI/NFPA 70 UL and cUL Listed UL Enclosure Types 3R, 4X, 12
Item Type
Flanged Single
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Voltage Rating Description
600V AC/DC
Connectivity
Screw Terminals
Style
Bus Bar Mount Male
Wattage
240000
Performance
Electrical - Amperage Rating - 400A Maximum Electrical - Voltage Ratings - 600V AC Maximum 250V DC Maximum Environmental - Flammability - HB per UL94 or CSA 22.2. 0.17 Mechanical - Product Identification - Ratings are a permanent part of device Mechanical - Terminal Accommodation - #4 to 4/0 AWG
Material - Mounting Hardware
Screw Mounting
Number Of Poles
1-Pole
Amperage Rating
400 A
Current / Amperage Rating
400 A

Description

The HUBBELL Series 16 Male Receptacle is a single pole device rated for use in temporary power distribution systems requiring high ampacity electrical connections. This flanged, bus bar mount receptacle includes a double set screw terminal connection and accommodates wire sizes from #4 AWG to 4/0 AWG. It is constructed with a thermoplastic elastomer housing and brass contacts, intended for indoor use; additional protection may be required for other environments.


Key Features of the HUBBELL Series 16 Male Receptacle:

  • Amperage Rating: Rated for up to 400 A (300/400A AC/DC)

  • Voltage Rating: Rated for operation at up to 600V AC or 250V DC

  • Cable Range: Accepts cable sizes from #4 AWG to 4/0 AWG

  • Terminal Connection Type: Double set screw terminals are used to connect compatible conductors

  • Mounting Style: Threaded mounting with included hardware; fits UL1691 requirements

  • NEMA Enclosure Ratings: Meets NEMA Types 12, 3R, and 4X standards

  • Material Construction: Thermoplastic elastomer housing with brass conductor/contact material

  • Standards Compliance: ANSI/NFPA 70, cUL Listed, National Electric Code (NEC), UL Enclosure Types listed
