  9. Receptacle, Female, Red, Double Set, Taper

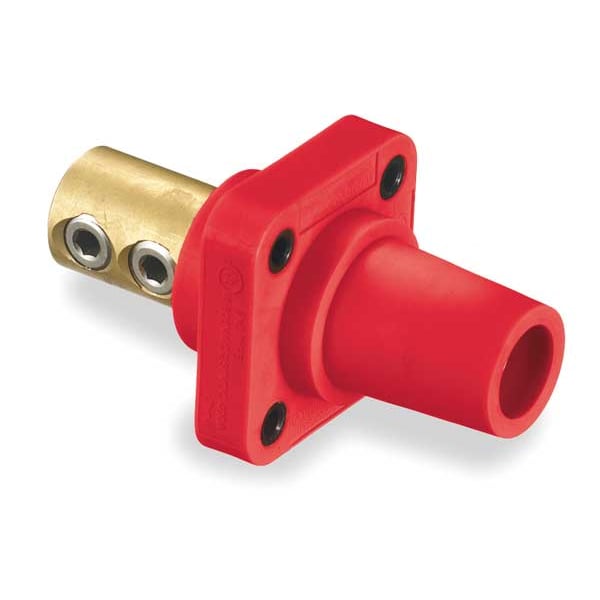

Hubbell Wiring Device-Kellems Receptacle, Female, Red, Double Set, Taper HBLFRR - main

Receptacle, Female, Red, Double Set, Taper

  • Mfr # HBLFRR

  • Zoro # G0586722

product price: $52.59
/ea

Key Features

Type
Receptacle
Series
16
Terminal Connection
Double Set Screw
Male/Female
Female
Current Rating
400 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBLFRR
Zoro #
G0586722
UPC #
783585112640
Country of Origin
China

Dimensions

Minimum Wire Size
4 AWG
Maximum Wire Size
4/0 AWG
Overall Length
4.1 in
Overall Width
2.2 in
Wire Size
#4 AWG to #4/0 AWG
Display Size
Standard Sized Product

Details

Item
Receptacle
Type
Receptacle
Series
16
Terminal Connection
Double Set Screw
Male/Female
Female
Current Rating
400 A
Voltage Rating
600V AC, 600V DC
NEMA Rating
12K, 3R, 4X
Standards
ANSI/NFPA 70, cUL Listed, National Electric Code (NEC), UL Enclosure Types 3R, 4X, 12, UL Listed
Conductor Material
Brass
Material
Thermoplastic Elastomer
Single Pole Device Style
Taper Nose
Amps AC/DC
400AC/DC
Color
Red
Cable Range
4 to 4/0
Mounting
Panel
Amps AC
400 A
Terminal Connection Type
Double Set Screw
Gender
Female
Mounting Style
Through Hole Mounting
NEMA Enclosure Rating
12, 3R, 4X
UL 94 Flammability Rating
HB
Contact Material
Brass
Housing Color
Red
For Location
Indoor
Phase
Single
End Type
Taper Nose
Compatible with Series
16
Flange Shape
Square
Housing Material
Thermoplastic Elastomer
Connection Orientation
Straight
Number Of Poles
1-Pole
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Wattage
240000
Connectivity
Double Set Screw
Voltage Rating Description
600V AC/DC
Current / Amperage Rating
400 A
Performance
Electrical - Amperage Rating - 400A Maximum Electrical - Voltage Ratings - 600V AC Maximum 250V DC Maximum Environmental - Flammability - HB per UL94 or CSA 22.2. 0.17 Mechanical - Product Identification - Ratings are a permanent part of device Mechanical - Terminal Accommodation - #4 to 4/0 AWG
Application
High Ampacity Connections
Item Type
Panel Mount Receptacle
Amperage Rating
400 A
Material - Mounting Hardware
Threaded Thru-Hole
Style
Female Double Set Screw
Industry Standard(s)
National Electric Code (NEC), ANSI/NFPA 70 UL and cUL Listed UL Enclosure Types 3R, 4X, 12
Number Of Wires
1-Wire

Description

Receptacle, Connection Orientation Straight, Current Rating 400 A, Gender Female, Housing Color Red, Housing Material Thermoplastic Elastomer, Maximum Wire Size 4/0 AWG, Minimum Wire Size 4 AWG, Phase Single, Voltage Rating 600V AC, 600V DC, Contact Material Brass, End Type Taper Nose, Flange Shape Square, NEMA Enclosure Rating 12, 3R, 4X, Standards ANSI/NFPA 70, cUL Listed, National Electric Code (NEC), UL Enclosure Types 3R, 4X, 12, UL Listed, Terminal Connection Type Double Set Screw
