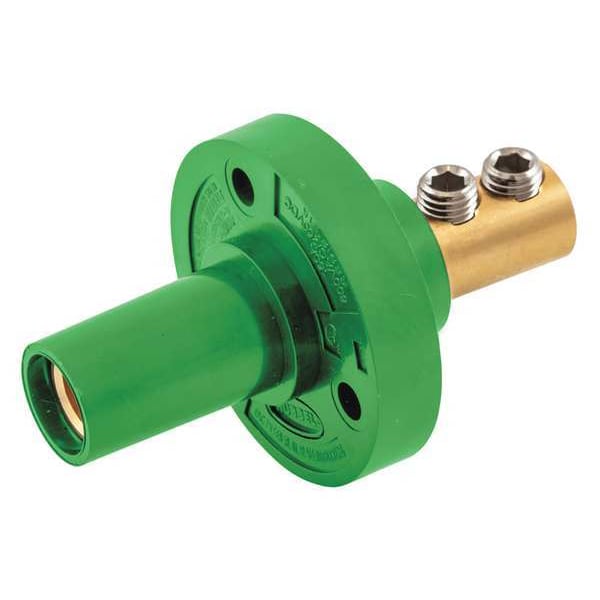

Hubbell Wiring Device-Kellems Receptacle, Grn, Female, 8-2, Taper HBL15FRGN - main

Receptacle, Grn, Female, 8-2, Taper

  • Mfr # HBL15FRGN

  • Zoro # G6084881

product price: $36.95
/ea

Key Features

Type
Receptacle
Series
15
Terminal Connection
Double Set Screw
Male/Female
Female
Current Rating
150 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL15FRGN
Zoro #
G6084881
UPC #
783585458212
Country of Origin
Mexico

Dimensions

Power Terminals Wire Size
#8 to #2 AWG
Minimum Wire Size
8 AWG
Maximum Wire Size
2 AWG
Overall Length
2.95 in
Overall Width
0.86 in
Wire Size
#4 AWG Type SC/PPC Wire
Display Size
Standard Sized Product

Details

Item
Receptacle
Type
Receptacle
Series
15
Terminal Connection
Double Set Screw
Male/Female
Female
Current Rating
150 A
Voltage Rating
600V AC, 600V DC
NEMA Rating
12, 3R, 4X
Cable Range
8 to 2
Single Pole Device Style
Taper Nose
Conductor Material
Brass
Standards
ANSI/NFPA 70, cUL Listed, National Electric Code (NEC), UL Enclosure Types 3R, 4X, 12, UL Listed
Mounting
Screw Mount
Fits
UL1691
Material
Thermoplastic Elastomer
Amps AC/DC
150AC/DC
Color
Green
Amps AC
150 A
Flange Shape
Round
Housing Color
Green
Contact Material
Brass
Terminal Connection Type
Double Set Screw
Housing Material
Thermoplastic Elastomer
Connection Orientation
Straight
Mounting Style
Through Hole Mounting
End Type
Taper Nose
Includes Mounting Hardware
Yes
Compatible with Series
15
Gender
Female
For Location
Indoor
NEMA Enclosure Rating
12, 3R, 4X
Phase
Single
Current / Amperage Rating
150 A
Voltage Rating Description
600V AC/DC
Number Of Poles
1-Pole
Number Of Wires
None
Performance
Electrical - Amperage Rating - 150A Maximum Electrical - Voltage Ratings - 600V AC Maximum 250V DC Maximum Mechanical - Product Identification - Ratings are a permanent part of device Mechanical - Terminal Accommodation - #8 to #2 AWG
Application
Extra Heavy Duty Industrial
Industry Standard(s)
National Electric Code (NEC), ANSI/NFPA 70 UL and cUL Listed UL Enclosure Types 3R, 4X, 12
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Style
Double Set Screw Female
Item Type
Female Receptacle
Connectivity
Double Set Screw
Amperage Rating
150 A
Material - Mounting Hardware
Screw Mounting
Wattage
90000

Description

The HUBBELL Receptacle, Green, Female, 8-2, Taper is a single pole device suitable for use in industrial applications involving temporary electrical power distribution. This female receptacle features a taper nose design and accommodates cable sizes from 8 AWG to 2 AWG. It is compatible with Series 15 devices and features a double set screw terminal connection that allows wiring without the need for special tools.


Key Features of the HUBBELL Receptacle, Green, Female, 8-2, Taper:

  • Amperage Rating: Rated for up to 150 A at 600V AC or 250V DC

  • Cable Range: Accepts wire sizes from #8 to #2 AWG

  • Terminal Connection Type: Double set screw termination that facilitates wire connection

  • Material: Housing made from thermoplastic elastomer; contact material is brass

  • NEMA Enclosure Ratings: Suitable for use in NEMA Types 12, 3R, and 4X enclosures (indoor dry locations unless otherwise protected)

  • Mounting Style: Screw mount with through hole mounting configuration; includes mounting hardware

  • Standards Compliance: Meets ANSI/NFPA 70 (NEC), UL Listed (UL1691), cUL Listed requirements

  • Number of Poles / Phase: Single pole device designed for single phase circuits
