  9. Receptacle, GrnFemale, Stud.Taper Nose

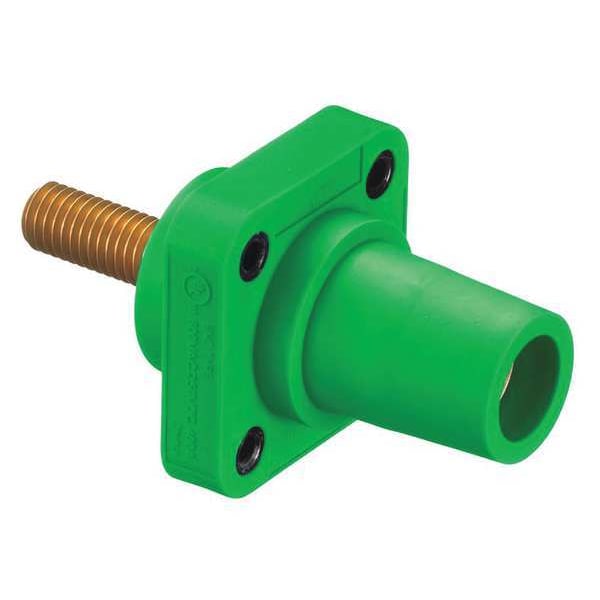

Hubbell Wiring Device-Kellems Receptacle, GrnFemale, Stud.Taper Nose HBLFRSCGN - main

Receptacle, GrnFemale, Stud.Taper Nose

  • Mfr # HBLFRSCGN

  • Zoro # G6180054

product price: $48.26
/ea

Key Features

Type
Receptacle
Series
16
Terminal Connection
Threaded Stud
Male/Female
Female
Current Rating
400 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBLFRSCGN
Zoro #
G6180054
UPC #
783585093628
Country of Origin
China

Dimensions

Power Terminals Wire Size
#4 to 4/0
Overall Width
2.2 in
Minimum Wire Size
4 AWG
Maximum Wire Size
4/0 AWG
Overall Length
3.67 in
Wire Size
#4 AWG to #4/0 AWG
Display Size
Standard Sized Product

Details

Item
Receptacle
Type
Receptacle
Series
16
Terminal Connection
Threaded Stud
Male/Female
Female
Current Rating
400 A
Voltage Rating
600V AC, 600V DC
NEMA Rating
12, 3R, 4X
Standards
ANSI/NFPA 70, cUL Listed, National Electric Code (NEC), UL Enclosure Types 3R, 4X, 12, UL Listed
Material
Thermoplastic Elastomer
Fits
UL1691
Single Pole Device Style
Taper Nose
Conductor Material
Brass
Amps AC/DC
300/400AC/DC
Mounting
Threaded Stud
Color
Green
Amps AC
400 A
Connection Orientation
Straight
Compatible with Series
16
Contact Material
Brass
Flange Shape
Square
End Type
Taper Nose
Housing Color
Green
Phase
Single
Housing Material
Thermoplastic Elastomer
For Location
Indoor
NEMA Enclosure Rating
12, 3R, 4X
Terminal Connection Type
Threaded Stud
Mounting Style
Threaded Mounting
Gender
Female
Voltage Rating Description
600V AC/DC
Material - Mounting Hardware
Threaded Thru-Hole
Item Type
Panel Mount Receptacle
Application
High Ampacity Connections
Current / Amperage Rating
400 A
Amperage Rating
400 A
Style
Stud Type, Threaded Hole Mounting, Female
Connectivity
Stud Type
Number Of Wires
1-Wire
Industry Standard(s)
National Electric Code (NEC), ANSI/NFPA 70 UL and cUL Listed UL Enclosure Types 3R, 4X, 12
Wattage
240000
Performance
Electrical - Amperage Rating - 400A Maximum Electrical - Voltage Ratings - 600V AC Maximum 250V DC Maximum Environmental - Flammability - HB per UL94 or CSA 22.2. 0.17 Mechanical - Product Identification - Ratings are a permanent part of device Mechanical - Terminal Accommodation - #4 to 4/0 AWG
Number Of Poles
1-Pole
Environmental Conditions
Indoor Dry Unless Protected By Additional Means

Description

The HUBBELL Receptacle, GrnFemale, Stud.Taper Nose is a single pole, female panel mount receptacle rated for use in applications requiring up to 400A at 600V AC or 250V DC. Compatible with Series 16 devices and rated for up to 400A at 600V AC or 250V DC, this receptacle features a straight connection orientation and utilizes a threaded stud terminal connection. The housing is constructed from thermoplastic elastomer and is intended for installation in dry, indoor environments.


Key Features of the HUBBELL Receptacle, GrnFemale, Stud.Taper Nose:

  • Amperage/Voltage Rating: Rated for up to 400A (AC/DC) and 600V AC / 250V DC

  • Connection Type: Threaded stud terminal with taper nose design

  • Compatible Wire Size: Accepts #4 AWG to #4/0 AWG conductors

  • Housing Material: Thermoplastic elastomer construction

  • NEMA Enclosure Ratings: Suitable for NEMA Types 12, 3R, and 4X enclosures

  • Standards Compliance: Meets ANSI/NFPA 70 (NEC), UL Listed, cUL Listed requirements

  • Mounting Style: Panel mount with threaded thru-hole hardware

  • Pole/Wire Configuration: Single pole device accommodating one wire per unit
