  9. Receptacle, Male, Green, 8-2, 150AC/DC

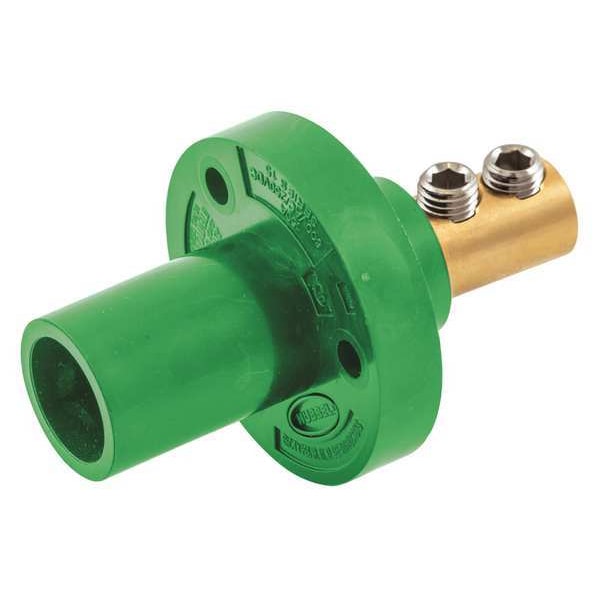

Hubbell Wiring Device-Kellems Receptacle, Male, Green, 8-2, 150AC/DC HBL15MRGN - main

Receptacle, Male, Green, 8-2, 150AC/DC

  • Mfr # HBL15MRGN

  • Zoro # G6222501

product price: $36.95
/ea

Key Features

Type
Receptacle
Series
15
Terminal Connection
Double Set Screw
Male/Female
Male
Current Rating
150 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL15MRGN
Zoro #
G6222501
UPC #
783585458168
Country of Origin
Mexico

Dimensions

Power Terminals Wire Size
#8 to #2 AWG
Overall Width
0.86 in
Minimum Wire Size
8 AWG
Overall Length
2.9 in
Maximum Wire Size
2 AWG
Wire Size
#4 AWG Type SC/PPC Wire
Display Size
Standard Sized Product

Details

Item
Receptacle
Type
Receptacle
Series
15
Terminal Connection
Double Set Screw
Male/Female
Male
Current Rating
150 A
Voltage Rating
600V AC, 600V DC
NEMA Rating
12, 3R, 4X
Color
Green
Standards
ANSI/NFPA 70, cUL Listed, National Electric Code (NEC), UL Enclosure Types 3R, 4X, 12, UL Listed
Mounting
Screw Mount
Amps AC/DC
150AC/DC
Single Pole Device Style
Taper Nose
Conductor Material
Brass
Fits
UL1691
Cable Range
8 to 2
Material
Thermoplastic Elastomer
Amps AC
150 A
Includes Mounting Hardware
Yes
Gender
Male
Mounting Style
Through Hole Mounting
Phase
Single
For Location
Indoor
Flange Shape
Round
Contact Material
Brass
NEMA Enclosure Rating
12, 3R, 4X
Compatible with Series
15
Connection Orientation
Straight
Housing Color
Green
End Type
Taper Nose
Housing Material
Thermoplastic Elastomer
Terminal Connection Type
Double Set Screw
Industry Standard(s)
National Electric Code (NEC), ANSI/NFPA 70 UL and cUL Listed UL Enclosure Types 3R, 4X, 12
Performance
Electrical - Amperage Rating - 150A Maximum Electrical - Voltage Ratings - 600V AC Maximum 250V DC Maximum Mechanical - Product Identification - Ratings are a permanent part of device Mechanical - Terminal Accommodation - #8 to #2 AWG
Number Of Poles
1-Pole
Style
Double Set Screw Male
Item Type
Male Inlet
Wattage
90000
Material - Mounting Hardware
Screw Mounting
Application
Extra Heavy Duty Industrial
Voltage Rating Description
600V AC/DC
Current / Amperage Rating
150 A
Connectivity
Double Set Screw
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Amperage Rating
150 A
Number Of Wires
None

Description

The HUBBELL Receptacle, Male, Green, 8-2, 150AC/DC is a single pole device intended for use in industrial settings where temporary electrical power distribution is needed. This male receptacle features a straight connection orientation and utilizes a double set screw terminal connection to accommodate wire sizes from #8 to #2 AWG. It is rated for up to 150 amps at 600V AC or 250V DC and is compatible with Series 15 devices.


Key Features of the HUBBELL Receptacle, Male, Green, 8-2, 150AC/DC:

  • Amperage/Voltage Rating: Rated for up to 150A at either 600V AC or 250V DC

  • Cable Range: Accepts cable sizes from #8 AWG to #2 AWG

  • Terminal Connection: Double set screw design features a conductor retention

  • Material Construction: Brass contacts within a thermoplastic elastomer housing

  • NEMA Enclosure Ratings: Compatible with NEMA Type 12, Type 3R, and Type 4X enclosures when installed according to instructions

  • Mounting Style: Screw mount with through hole mounting configuration; includes mounting hardware

  • Standards Compliance: Meets ANSI/NFPA 70 (NEC), UL Listed/cUL Listed requirements; fits UL1691 specifications

  • Pole Configuration: Single pole device with taper nose style inlet; male gender connector
