  9. Receptacle, Wht, Female, Taper, Sud, Ser 16

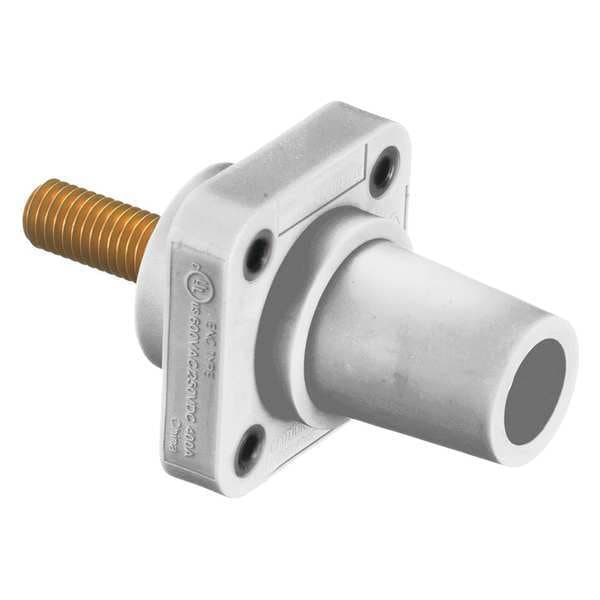

Hubbell Wiring Device-Kellems Receptacle, Wht, Female, Taper, Sud, Ser 16 HBLFRSCW - main

Receptacle, Wht, Female, Taper, Sud, Ser 16

  • Mfr # HBLFRSCW

  • Zoro # G6191227

product price: $51.07
/ea

Key Features

Type
Receptacle
Series
16
Terminal Connection
Threaded Stud
Male/Female
Female
Current Rating
400 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBLFRSCW
Zoro #
G6191227
UPC #
783585093598
Country of Origin
China

Dimensions

Power Terminals Wire Size
#4 to 4/0
Maximum Wire Size
4/0 AWG
Overall Length
3.67 in
Overall Width
2.2 in
Minimum Wire Size
4 AWG
Wire Size
#4 AWG to #4/0 AWG
Display Size
Standard Sized Product

Details

Item
Receptacle
Type
Receptacle
Series
16
Terminal Connection
Threaded Stud
Male/Female
Female
Current Rating
400 A
Voltage Rating
600V AC, 600V DC
NEMA Rating
12, 3R, 4X
Material
Thermoplastic Elastomer
Conductor Material
Brass
Mounting
Threaded Stud
Fits
UL1691
Single Pole Device Style
Taper Nose
Amps AC/DC
300/400AC/DC
Color
White
Standards
ANSI/NFPA 70, cUL Listed, National Electric Code (NEC), UL Enclosure Types 3R, 4X, 12, UL Listed
Amps AC
400 A
Flange Shape
Square
Housing Material
Thermoplastic Elastomer
Mounting Style
Threaded Mounting
Connection Orientation
Straight
Housing Color
White
End Type
Taper Nose
For Location
Indoor
Phase
Single
NEMA Enclosure Rating
12, 3R, 4X
Contact Material
Brass
Gender
Female
Terminal Connection Type
Threaded Stud
Compatible with Series
16
Style
Stud Type, Threaded Hole Mounting, Female
Number Of Poles
1-Pole
Voltage Rating Description
600V AC/DC
Application
High Ampacity Connections
Amperage Rating
400 A
Connectivity
Stud Type
Current / Amperage Rating
400 A
Industry Standard(s)
National Electric Code (NEC), ANSI/NFPA 70 UL and cUL Listed UL Enclosure Types 3R, 4X, 12
Number Of Wires
1-Wire
Material - Mounting Hardware
Threaded Thru-Hole
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Item Type
Panel Mount Receptacle
Wattage
240000
Performance
Electrical - Amperage Rating - 400A Maximum Electrical - Voltage Ratings - 600V AC Maximum 250V DC Maximum Environmental - Flammability - HB per UL94 or CSA 22.2. 0.17 Mechanical - Product Identification - Ratings are a permanent part of device Mechanical - Terminal Accommodation - #4 to 4/0 AWG

Description

The HUBBELL Series 16 Female Receptacle is a single pole, panel mount device rated for high ampacity electrical connections. It features a straight, taper nose configuration with stud-type connectivity and is suitable for indoor use in dry locations unless additional protection is provided. This receptacle accommodates wire sizes from #4 AWG to 4/0 AWG and supports up to 400A at 600V AC or 250V DC, making it compatible with demanding power distribution requirements.


Key Features of the HUBBELL Series 16 Female Receptacle:

  • Amperage Rating: Rated for up to 400 A (300/400A AC/DC)

  • Voltage Rating: Supports up to 600V AC / 250V DC

  • Connection Type: Threaded stud terminal connection; stud type mounting style

  • Wire Size Compatibility: Accepts #4 AWG to #4/0 AWG conductors

  • Material Construction: Brass contact material; thermoplastic elastomer housing

  • NEMA Enclosure Ratings: Suitable for NEMA Types 12, 3R, and 4X enclosures

  • Industry Standards: Meets ANSI/NFPA 70 (NEC), UL Listed, cUL Listed standards

  • Pole/Wire Configuration: Single pole, single wire design; female gender connection
