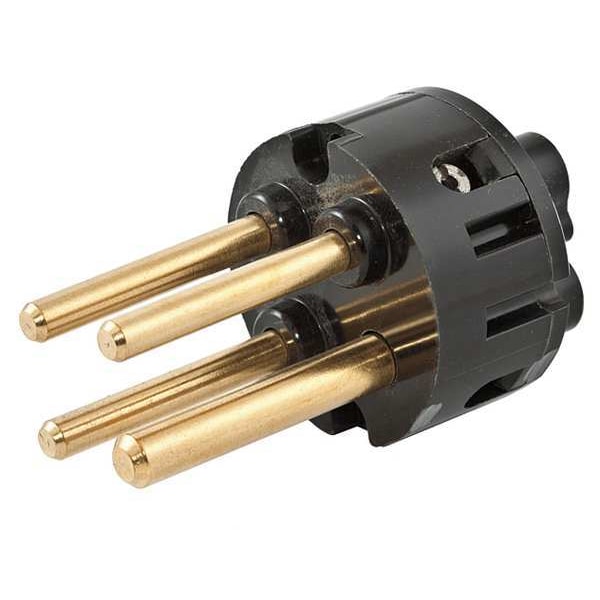

Hubbell Wiring Device-Kellems Replacement Iec Pin and Sleeve Interior IN4100DM - main

Replacement Iec Pin and Sleeve Interior

  • Mfr # IN4100DM

  • Zoro # G7323382

product price: $360.45
/ea
Free Shipping & Returns

Key Features

Fits Brand
Hubbell Wiring Device-Kellems
For Use With Mfr. Model Number
HBL4100C5W, HBL4100C7W, HBL4100C9W, HBL4100R5W, HBL4100R7W, HBL4100R9W
Overall Height
3.25 in
Compatible Device Wire Number
4
Voltage Rating
250V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
IN4100DM
Zoro #
G7323382
UPC #
783585420653
Country of Origin
United States

Dimensions

Overall Height
3.25 in
Overall Length
6.68 in
Overall Width
3.25 in
Display Size
Standard Sized Product
Wire Size
#3 AWG to #1/0 AWG

Details

Item
Replacement Iec Pin and Sleeve Interior
Fits Brand
Hubbell Wiring Device-Kellems
For Use With Mfr. Model Number
HBL4100C5W, HBL4100C7W, HBL4100C9W, HBL4100R5W, HBL4100R7W, HBL4100R9W
Compatible Device Wire Number
4
Voltage Rating
250V AC
Number of Poles
3
Number of Wires
4
For Use With
Inlets, Plugs
Current Rating
100 A
Maximum Operating Temperature
75 Degrees C
Gender
Male
Grounding Style
IEC
Color
Black
Minimum Operating Temperature
-40 Degrees C
Material
Thermoplastic
Compatible Device Current
100 A
Type
Replacement Interior
Material - Mounting Hardware
Screw Mounting
Series
Accessories
Connectivity
Pressure Terminal Screws
Amperage Rating
100 A
Voltage Rating Description
3 Phase 250 VAC
Dielectric Strength
Withstands 3000V Minimum in
Industry Standard(s)
UL Listed
Current / Amperage Rating
100 A
Environmental Conditions
Watertight When Installed
Style
For Plugs/Inlets
Nema Rating
Non-NEMA
Item Type
Replacement Interior
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 3,000V AC Electrical - Max Working Voltage - 600V AC RMS Environmental - Flammability - UL94-5VA and V-0 classification Environmental - Ingress Protection - IP67 Suitability Environmental - Operating Temperatures - Max. Continuous:75°C Min. Continuous:-40°C w/o impact Mechanical - Impact Resistance - In accordance with UL746C Mechanical - Product Identification - Ratings are a part of the external label and molded into the receptacle mount Mechanical - Terminal Identification - Terminals identified in accordance with North American and International conventions
OEM Brand Name
Hubbell Wiring Device-Kellems

Description

Replacement Iec Pin and Sleeve Interior, Compatible Device Current 100 A, Gender Male, Number of Poles 3, Number of Wires 4, Voltage Rating 250V AC, Compatible Device Wire Number 4, Current Rating 100 A, For Use With Inlets, Plugs, Grounding Style IEC, Color Black, Material Thermoplastic, Maximum Operating Temperature 75 Degrees C, Minimum Operating Temperature -40 Degrees C, Overall Height 3.25 in, Overall Length 6.68 in, Overall Width 3.25 in
