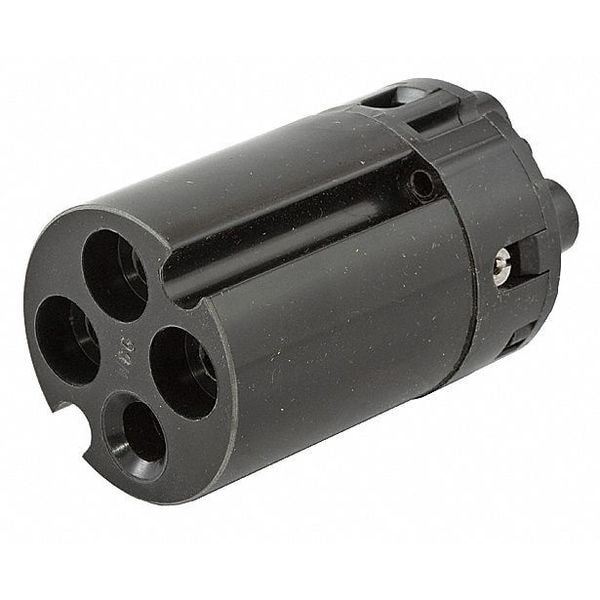

Hubbell Wiring Device-Kellems Replacement Iec Pin and Sleeve Interior IN420DF - main

Replacement Iec Pin and Sleeve Interior

  • Mfr # IN420DF

  • Zoro # G5257357

product price: $119.00
/ea
Free Shipping & Returns

Key Features

For Use With Mfr. Model Number
HBL416C6W, HBL416R6W, HBL420C5W, HBL420C7W, HBL420C9W, HBL420R5W, HBL420R7W, HBL420R9W
Fits Brand
Hubbell Wiring Device-Kellems
Minimum Operating Temperature
-40 Degrees C
Overall Width
2.418 in
Current Rating
16 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
IN420DF
Zoro #
G5257357
UPC #
783585420080
Country of Origin
United States

Dimensions

Overall Width
2.418 in
Overall Length
3.978 in
Overall Height
2.418 in
Display Size
Standard Sized Product

Details

For Use With Mfr. Model Number
HBL416C6W, HBL416R6W, HBL420C5W, HBL420C7W, HBL420C9W, HBL420R5W, HBL420R7W, HBL420R9W
Fits Brand
Hubbell Wiring Device-Kellems
Item
Replacement Iec Pin and Sleeve Interior
Minimum Operating Temperature
-40 Degrees C
Current Rating
16 A
Number of Poles
3
Grounding Style
IEC
Compatible Device Wire Number
4
Compatible Device Current
20 A
Voltage Rating
380/415V AC
Maximum Operating Temperature
75 Degrees C
Gender
Female
Number of Wires
4
For Use With
Connectors, Receptacles
Color
Black
Material
Thermoset
Type
Replacement Interior
Style
For Receptacles/Connectors
Series
Accessories
Application
High Ampacity Watertight Connections
Nema Rating
Non-NEMA
Industry Standard(s)
UL Listed
Item Type
Replacement Interior
Current / Amperage Rating
16 A
Amperage Rating
16 A
Connectivity
Pressure Terminal Screws
Material - Mounting Hardware
Screw Mounting
Environmental Conditions
Watertight When Installed
Voltage Rating Description
380-415 VAC
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 3,000V AC Electrical - Max Working Voltage - 600V AC RM Environmental - Flammability - UL94-5VA and V-0 classification Environmental - Ingress Protection - IP67 Suitability Environmental - Operating Temperatures - Max. Continuous:75°C Min. Continuous:-40°C w/o impact Mechanical - Impact Resistance - In accordance with UL746C Mechanical - Product Identification - Identification and ratings are a part of the external label and molded into the receptacle mount Mechanical - Terminal Identification - Terminals identified in accordance with North American and International conventions
OEM Brand Name
Hubbell Wiring Device-Kellems

Description

Replacement Iec Pin and Sleeve Interior, Compatible Device Current 20 A, Gender Female, Number of Poles 3, Number of Wires 4, Voltage Rating 380/415V AC, Compatible Device Wire Number 4, Current Rating 16 A, For Use With Connectors, Receptacles, Grounding Style IEC, Color Black, Material Thermoset, Maximum Operating Temperature 75 Degrees C, Minimum Operating Temperature -40 Degrees C, Overall Height 2.418 in, Overall Length 3.978 in, Overall Width 2.418 in
