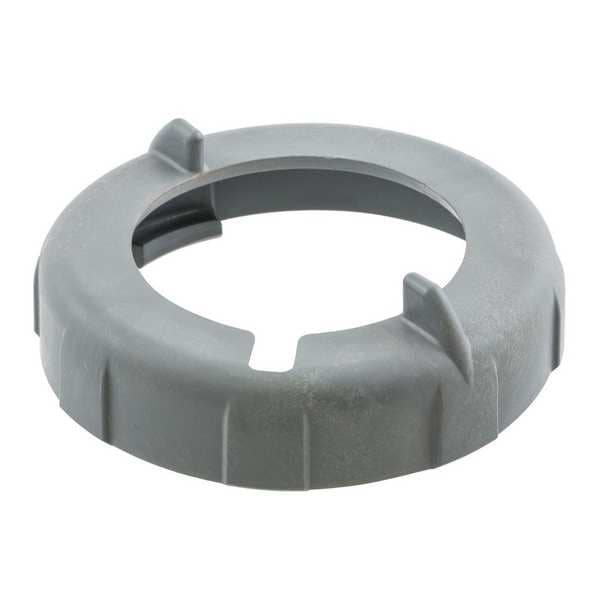

Hubbell Wiring Device-Kellems Ring, Locking LR3430 - main

Ring, Locking

  • Mfr # LR3430

  • Zoro # G5257402

product price: $27.45
/ea

Key Features

Fits Brand
Hubbell Wiring Device-Kellems
For Use With Mfr. Model Number
HBL330B4W, HBL330B6W, HBL330B7W, HBL330P4W, HBL330P6W, HBL330P7W, HBL332B4W, HBL332B6W, HBL332P4W, HBL332P6W, HBL430B12W, HBL430B5W, HBL430B7W, HBL430B9W, HBL430P12W, HBL430P5W, HBL430P7W, HBL430P9W, HBL432B3W, HBL432B6W, HBL432P3W, HBL432P6W
For Use With
For 30 A 3 and 4-Wire, Gray, Non-Metallic
Maximum Operating Temperature
75 Degrees C
Material
Composite
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LR3430
Zoro #
G5257402
UPC #
783585370552
Country of Origin
United States

Dimensions

Overall Length
6.2 in
Overall Width
5.6 in
Overall Height
1 in
Display Size
Standard Sized

Details

Item
Ring, Locking
Fits Brand
Hubbell Wiring Device-Kellems
For Use With Mfr. Model Number
HBL330B4W, HBL330B6W, HBL330B7W, HBL330P4W, HBL330P6W, HBL330P7W, HBL332B4W, HBL332B6W, HBL332P4W, HBL332P6W, HBL430B12W, HBL430B5W, HBL430B7W, HBL430B9W, HBL430P12W, HBL430P5W, HBL430P7W, HBL430P9W, HBL432B3W, HBL432B6W, HBL432P3W, HBL432P6W
For Use With
For 30 A 3 and 4-Wire, Gray, Non-Metallic
Maximum Operating Temperature
75 Degrees C
Material
Composite
Minimum Operating Temperature
-40 Degrees C
Compatible Device Wire Number
3, 4
Color
Gray
Resistance Properties
Impact Resistant
NEMA Enclosure Rating
Not Rated
IP Rating
IP67
Standards
UL Listed
Type
Locking Ring
Application
3 and 4-Wire 30 and 32 Amp
Item Type
Replacement Lock Ring Kit
Connectivity
Pressure Terminal Screws
Series
Accessories
Material - Mounting Hardware
Cord Mounted
Environmental Conditions
Watertight
Nema Rating
Non-NEMA
Industry Standard(s)
UL Listed
Cord Type
All Portable
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 3,000V AC Electrical - Max Working Voltage - 600V AC RMS Environmental - Flammability - UL94-5VA and V-0 classification Environmental - Ingress Protection - IP67 Suitability Environmental - Operating Temperatures - Maximum Continuous: 75° C Minimum Continuous: -40° C w/o impact Mechanical - Impact Resistance - In accordance with UL746C Mechanical - Product Identification - Identification and ratings are a part of the external label and molded into the receptacle mount Mechanical - Terminal Identification - Terminals identified in accordance with North American and International conventions
OEM Brand Name
Hubbell Wiring Device-Kellems

Description

Ring, Locking, Compatible Device Wire Number 3, 4, For Use With For 30 A 3 and 4-Wire, Gray, Non-Metallic, Material Composite, NEMA Enclosure Rating Not Rated, Color Gray, Standards UL Listed, IP Rating IP67, Maximum Operating Temperature 75 Degrees C, Minimum Operating Temperature -40 Degrees C, Overall Height 1 in, Overall Length 6.2 in, Overall Width 5.6 in, Resistance Properties Impact Resistant
