  15. Safety Disconnect Switch, SPST, Single Phase, NEMA 3R, Indoor, Aluminum

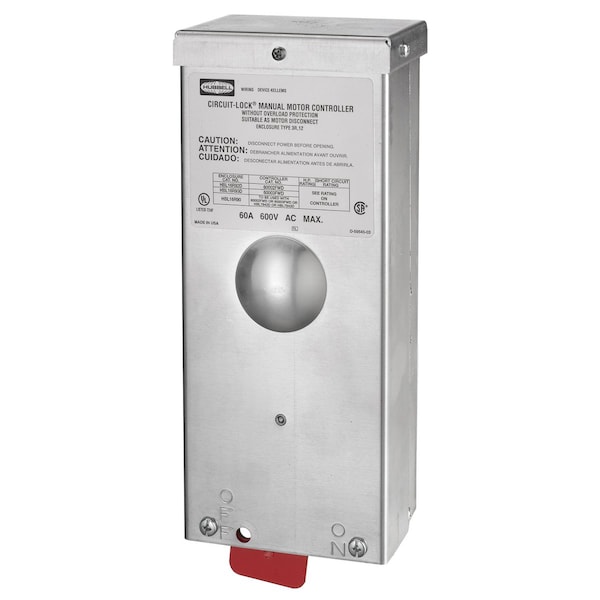

Hubbell Wiring Device-Kellems Safety Disconnect Switch, SPST, Single Phase, NEMA 3R, Indoor, Aluminum HBL16R92D - main

Safety Disconnect Switch, SPST, Single Phase, NEMA 3R, Indoor, Aluminum

  • Mfr # HBL16R92D

  • Zoro # G000701232

product price: $242.99
/ea
Free Shipping & Returns

Key Features

Contact Form
SPST
Current Rating
60 A
Phase
Single
Environment
Indoor
Enclosure Type
NEMA 3R
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL16R92D
Zoro #
G000701232
UPC #
783585202754
Country of Origin
United States

Dimensions

Width
4.4 in
Height
3.3 in
Length
10.11 in
Display Size
Standard Sized Product
Dimensions
10.11 in x 4.4 in x 3.3 in

Details

Item
Safety Disconnect Switch
Contact Form
SPST
Current Rating
60 A
Phase
Single
Environment
Indoor
Enclosure Type
NEMA 3R
HP
20 HP @ 600V
Voltage
600 V
Housing Material
Aluminum
Standards
UL Listed and CSA Certified
Amps
60 A
Application
Red Slide
Listing and Certifications
UL Listed and CSA Certified
Product Type
circuitlock-tn
Wiring Style
Back and Side Wired
Industry Standard(s)
CSA-C22.2 No.14 Industrial Control File LR-46186 UL 508, Industrial Control File #E70402
Connectivity
Pressure Terminal Screws
Material - Mounting Hardware
Screw Mounting
Performance
Electrical - Dielectric Voltage - Min. 2,200V AC minimum for 1 minute Electrical - Electrical Life - Min. 6,000 Cycles at rated switch load Electrical - Max. Working Voltage - 600V AC RMS Environmental - Flammability - UL94HB/VO Environmental - Operating Temperature - Max. 75°C,Min. -40°C continuous w/o impact Mechanical - Mechanical Life - Min. 10,000 minimum cycles Mechanical - Switch Rating - 25 inch pounds Mechanical - Terminal Accommodations - #10 AWG Max Mechanical - Terminal Torque - 20 inch pounds Mechanical - Wire Type - Solid and stranded copper wire only
Style
Standard Duty
Dielectric Strength
2,200V AC minimum for 1 minute
Load Capacity
Inductive
Series
Non-Fused
Wattage
36000
Operating Cycles
10,000 Cycles Minimum
OEM Brand Name
Hubbell Wiring Device-Kellems

Description

Hubbell Wiring Device Kellems, REPLACES HBL16R92
