Safety Switch, Three Phase, nema 3R, 12K, Indoor/Outdoor, Lever

Mfr # SE2720A
Zoro # G000701362

430.99

Free Shipping & Returns

Key Features

Contact Form

Current Rating

30 A

Phase

Three

Environment

Indoor/Outdoor

Enclosure Type

nema 3R, 12K

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: SE2720A
Zoro #: G000701362
UPC #: 783585006451
Country of Origin: United States

Dimensions

Length: 11.38 in
Height: 4.38 in
Width: 4.88 in
Dimensions: 11.38 in x 4.88 in x 4.38 in

Details

Item: Safety Switch
Contact Form: 3P
Current Rating: 30 A
Phase: Three
Environment: Indoor/Outdoor
Enclosure Type: nema 3R, 12K
HP: 3 HP @ 600V
Voltage: 600 V
Handle Color: Gray
Handle Type: Lever
Standards: CSA Certified, UL Listed
Color: Gray
IP Rating: IP54
Mounting: Feet
Features: All Materials are UV Stabilized
Gauge/Conductor: 10 AWG
Voltage Rating Description: 3 Phase 240 VAC
Dielectric Strength: Withstands 3,000V minimum
Industry Standard(s): CSA Certified Type 3R and 12K Enclosure Rating Listed to UL Standard
Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current and voltage Electrical - Dielectric Voltage - Withstands 3,000V minimum Electrical - Max. Working Voltage - 600V RMS Electrical - Operations - Mechanical 10,000 cycles Electrical 6,000 cycles Environmental - Flammability - UL94 to 5 VA and V0 classification Environmental - Moisture Resistance - IP54 suitability Environmental - Operating Temperature - Maximum continuous +75°C Minimum continuous -40°C Environmental - UV Resistance - All materials are UV stabilized Mechanical - Impact Resistance - In accordance with UL 746C Mechanical - Mounting - External fully adjustable feet Mechanical - Product Identification - Identification and ratings are part of external label and receptacle face Mechanical - Terminal Identification - In accordance with UL, CSA and international conventions

Description

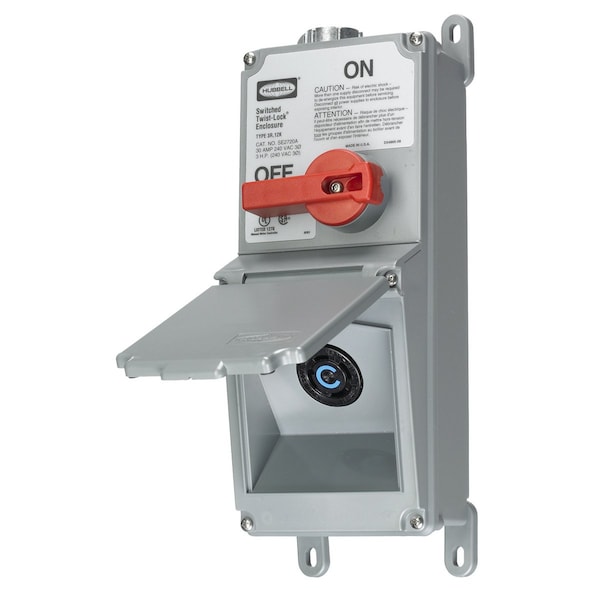

Hubbell Wiring Device Kellems, Switches and Lighting Controls,Industrial Grade, Lever Actuated, Switched Enclosure With Receptacle,Three Pole, 30A TwistLock, 3 Phase 250 V AC, Terminal Screws, Gray
