  9. Single Pole Connector, Male, Red
Hubbell Wiring Device-Kellems Single Pole Connector, Male, Red HBLMBR - main

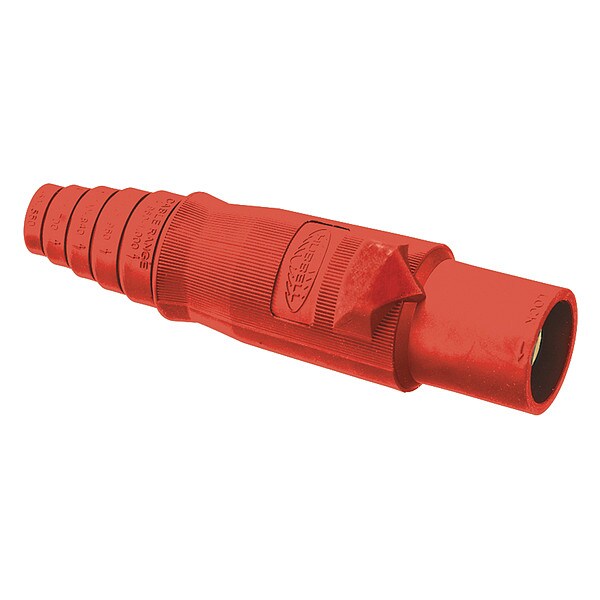

Single Pole Connector, Male, Red

  • Mfr # HBLMBR

  • Zoro # G6151275

product price: $13.59
/ea
Sold in multiples of 10 for $135.90

Key Features

Voltage Rating
600V AC, 600V DC
Color
Red
Terminal Connection
Single Pin
Fits
UL1691
Type
Male
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBLMBR
Zoro #
G6151275
UPC #
783585112879
Country of Origin
China

Dimensions

Overall Width
1.78 in
Overall Height
6.74 in

Details

Item
Single Pole Connector Body
Voltage Rating
600V AC, 600V DC
Color
Red
Terminal Connection
Single Pin
Fits
UL1691
Type
Male
Standards
UL, cUL
NEMA Enclosure Rating
12, 3R, 4X
Housing Material
Thermoplastic Elastomer
Current Rating
400 A
Compatible with Series
16
Gender
Male
Housing Color
Red
Current / Amperage Rating
400 A
Series
Series 16
Style
Replacement Body, Male
Amperage Rating
400 A
Voltage Rating Description
600V AC/250V DC
Industry Standard(s)
UL 498 And UL1691
Performance
Electrical - Amperage Rating - 400A Maximum Electrical - Voltage Ratings - 600V AC Maximum 250V DC Maximum Mechanical - Product Identification - Ratings are a permanent part of the device

Description

The HUBBELL Single Pole Connector, Male, Red is a replacement connector body intended for temporary electrical power distribution systems. This male single pole connector is compatible with Series 16 devices and includes a thermoplastic elastomer housing. It is rated for up to 400 amps and supports voltage ratings of 600V AC or 250V DC. The product meets UL 498 and UL1691 standards and fits applications where compliance with these specifications is required.


Key Features of the HUBBELL Single Pole Connector, Male, Red:

  • Amperage Rating: Rated for up to 400 A maximum current

  • Voltage Rating: Rated for operation at 600V AC or 250V DC

  • Compatible Series: Compatible with Series 16 connectors

  • NEMA Enclosure Ratings: For use in NEMA Type 12, 3R, and 4X enclosures

  • Standards Compliance: Meets UL, cUL certifications; conforms to UL498 and UL1691 requirements

  • Housing Material: Constructed from thermoplastic elastomer for durability

  • Terminal Connection: Single pin connection type

  • Style/Type: Replacement body; male configuration
