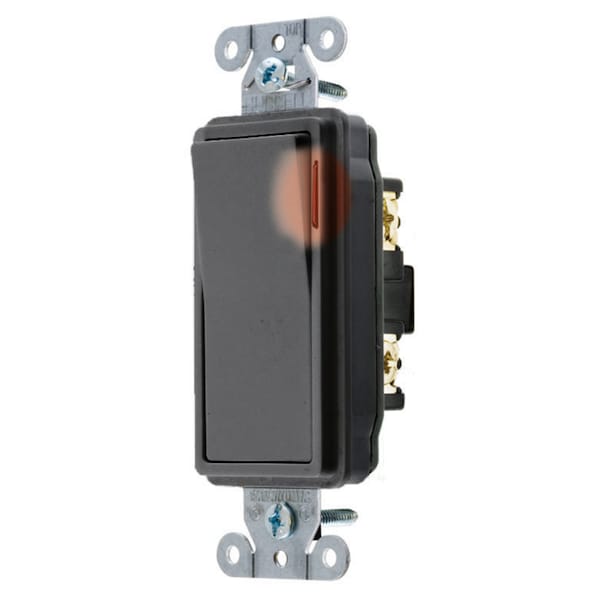

Spec Grade, Pilot Light Decorator Switches, AC, Single Pole, 20A 120/277VAC, Back/Side Pre-Wired

  • Mfr # DS120PLBK
  • Zoro # G200701360
product price:
$
33.95
/ea

Key Features

Color
Black
Width
1.43 in
Type
Rocker/Decorator
Height
1.54 in
Length
4.28 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
DS120PLBK
Zoro #
G200701360
UPC #
783585187853
Country of Origin
China
Item
Single Pole Style Line Illuminated Decorator Switch
Color
Black
Type
Rocker/Decorator
Style
Single Pole
Temp. Rise
30°C maximum at rated current
Number Of Poles
Single Pole
Current Rating
20 A
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Connectivity
Back and Side Wired
Voltage Rating
120-277 VAC
Series
Pilot Light
Indicator
Light On with Load On
Action
SPDT
Amperage
20 A
Carton Quantity
10
Material
Thermoplastic
Rocker Material
Thermoplastic
Contacts
Silver Alloy
Flammability
UL 94V-2
Max. Working Voltage
277V AC
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Mounting Bridge
Nickel Plated Steel with Auto Ground Staple
Terminal Screws
Brass
Terminal Accommodations
#14 AWG min. - #10 AWG max. solid and stranded copper wire only
Overload
Minimum 4.8 times rated current for 100 cycles
Rocker Color
Black
Ground Screw
Brass (Green)
Temperature Rise
30°C maximum at rated current
Max. Continuous Current
20A
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Industry Standard(s)
UL Listed
Current / Amperage Rating
20 A
Amperage Rating
20 A
Temperature Rise - Max.
30°C maximum at rated current
Item Type
Single Pole Style Line Illuminated Decorator Switch
Performance
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute Electrical - Max. Continuous Current - 20A Electrical - Max. Working Voltage - 277V AC Electrical - Overload - Minimum 4.8 times rated current for 100 cycles Electrical - Temperature Rise - 30°C maximum at rated current Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
Indicator(s) Type
Red LED

Dimensions

Width
1.43 in
Height
1.54 in
Length
4.28 in
Dimensions
4.28 in x 1.43 in x 1.54 in
Wire Size
#14 AWG to #10 AWG

Description

Hubbell Wiring Device Kellems, Switches and Lighting Controls, SpecGrade, Pilot Light Decorator Switches, General Purpose AC, Single Pole,20A 120/277V AC, Back and Side Wired, Pre-Wired with 8" #12 THHN, Black
