  11. Specification Grade Commercial Switch

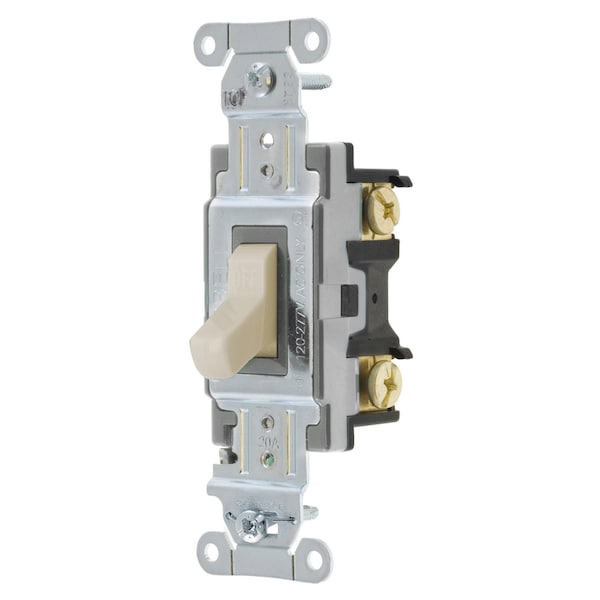

Hubbell Wiring Device-Kellems Specification Grade Commercial Switch CSB120LA - main

Specification Grade Commercial Switch

  • Mfr # CSB120LA

  • Zoro # G300701086

product price: $7.75
/ea

Key Features

Switch Type
Single Pole
Color
Light Almond
Voltage
120/277V AC
Style
Single Pole
Type
Toggle
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CSB120LA
Zoro #
G300701086
UPC #
783585154114
Country of Origin
China

Dimensions

Dimensions
4.18 in x 1.49 in x 1.83 in
Wire Size
#14 AWG to #10 AWG

Details

Item
Single Pole Commercial Toggle Switch
Switch Type
Single Pole
Color
Light Almond
Voltage
120/277V AC
Style
Single Pole
Type
Toggle
Carton Quantity
10
Temp. Rise
30°C maximum at rated current
Dielectric Strength
Withstands 1500V AC minimum for 1 minute
Amperage
20 A
Series
General Purpose
Connectivity
Back and Side Wired
Voltage Rating
120-277 VAC
Number Of Poles
Single Pole
Current Rating
20 A
Terminal Accommodations
#14 AWG min. - #10 AWG max. solid and stranded copper wire only
Max. Continuous Current
20A
Flammability
UL 94V-2
Product Type
Toggle-switches
Temperature Rise
30°C maximum at rated current
Wiring Style
Back and Side Wired
Switch Grade
Specification Grade
Operating Temperature
Max. continuous: 75°C; Min. continuous: -40°C without impact
Max. Working Voltage
277V AC
Dielectric Voltage
Withstands 1500V AC minimum for 1 minute
Overload
Minimum 4.8 times rated current for 100 cycles
Toggle Color
Light Almond
Listing and Certifications
Listed to Standard UL 20, CSA Certified, Meets NEMA WD1
Operating Temperatures
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Switch Handle Positions
2

Description

Hubbell Wiring Device Kellems, Switches and Lighting Controls, ToggleSwitch, Commercial Grade, Single Pole, 20A 120/277V AC, Back and SideWired, Light Almond
