Shop HUBBELL WIRING DEVICE-KELLEMS

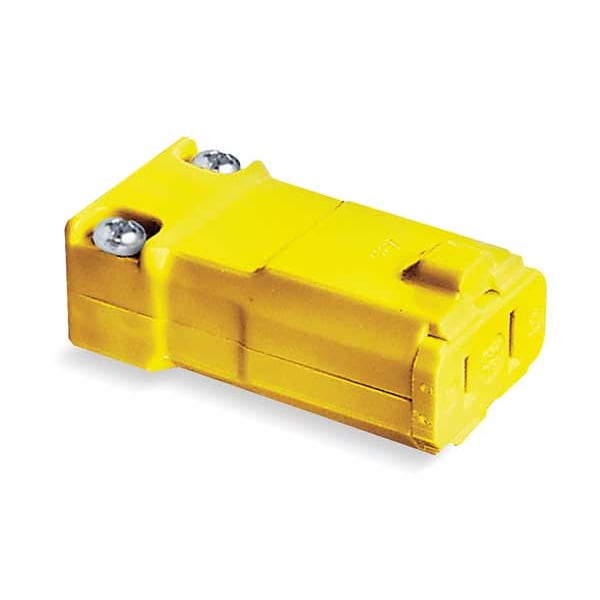

Straight Blade Connector, 1-15R, 15 A, 125V AC, 2 Pole, 2 Wire, Screw Terminals, Yellow

  • Mfr # HBL5869VY

  • Zoro # G3266575

product price:
$
19.69
/ea

Key Features

NEMA Receptacle Configuration
1-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL5869VY
Zoro #
G3266575
UPC #
783585013237
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
0.39 in
For Minimum Cable Diameter
0.22 in
Cord Size
0.218 in to 0.385 in
Maximum Wire Size
14 AWG
Minimum Wire Size
18 AWG
Overall Length
2.38 in
Length
2.38 in
Wire Size
#18 AWG to #14 AWG
Display Size
Standard
Dimensions
2.38 in x 1.25 in x 0.88 in
Width
1.25 in
Height
0.88 in
Wire Rope Length
2.38 in

Details

Item
Straight Blade Connector
NEMA Receptacle Configuration
1-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
2
Wire Connection Type
Screw Terminals
Wiring Style
Hinged
Connection Orientation
Straight
Shrouded
No
Grounding
Non-Grounded
Housing Color
Yellow
Cap Type
No Cap or Cover
IP Rating
IP20
Standards
CSA Certified, NEMA WD-6, UL Listed
Resistance Properties
Dust Ignition Proof, Moisture Resistant, Weather Resistant
Antimicrobial
No
Special Features
Moisture, Dust, and Weather Resistant
Power Indicator
No
Voltage
125VAC
HP
1/2 hp
Material
Nylon
Grade
General
Corrosion Resistant
No
For Environment
Dry
Housing Material
Thermoplastic Elastomer
Power Indicating Light
No
Market
Commercial, Industrial
Maximum Operating Temperature
75 Degrees C
Contact Material
Brass
Horsepower Rating
1/2 hp
Minimum Operating Temperature
-40 Degrees C
Polarized
Yes
For Location
Indoor
Dielectric Strength
Withstands 2,000V minimum.
Weight
0.05 lb
NEMA Plug Configuration - Plugs and Receptacles
1-15R
Grade - Plugs and Receptacles
General
OEM Brand Name
Hubbell Wiring Device-Kellems
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Industry Standard(s)
CSA Certified to C22.2 No. 42 File 280C NEMA® WD-6 Compliant UL Listed to UL498 File E1706
Number Of Conductors
2-Wire Non-Grounding
Insulation
Insulated Body
Material - Mounting Hardware
Cord Mounted
Nema Rating
1-15R
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 HB Environmental - IP Suitability - IP20 Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) Mechanical - Product Identification - Molded Rating on Device Face Mechanical - Terminal Accommodation - #18-#14 AWG stranded copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Series
Valise
Style
Standard
Wattage
1875 W
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Conductor Range
#14 AWG to #12 AWG
Application
Industrial/Commercial
Cord Range
0.218-0.385" (5.5-9.8)
Temperature Rating
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact

Description

• Hinged one piece body design for easy assembly
• Two captive multiple drive assembly screws
• Powerful cord grips prevent conductor slippage and strain
