Shop HUBBELL WIRING DEVICE-KELLEMS

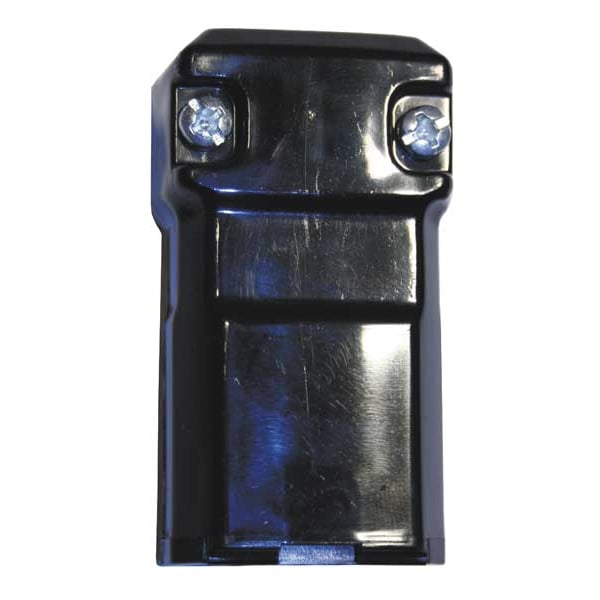

Straight Blade Connector, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Screw Terminals, Black

  • Mfr # HBL5369VBK

  • Zoro # G0990762

product price:  $31.65
/ea

Key Features

NEMA Receptacle Configuration
5-20R
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL5369VBK
Zoro #
G0990762
UPC #
783585019307
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
0.66 in
For Minimum Cable Diameter
0.22 in
Cord Size
0.220 in to 0.660 in
Minimum Wire Size
18 AWG
Maximum Wire Size
12 AWG
Display Size
Standard
Wire Size
#18 AWG to #12 AWG

Details

Item
Straight Blade Connector
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Style
Hinged
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Black
Cap Type
No Cap or Cover
IP Rating
IP20
Standards
CSA Certified, NEMA WD-6, UL Listed
Resistance Properties
Dust Ignition Proof, Moisture Resistant, Weather Resistant
Grade
Commercial
Antimicrobial
No
Voltage
125VAC
Power Indicator
No
Special Features
Moisture, Dust, and Weather Resistant
Corrosion Resistant
No
Material
Nylon
HP
1 hp
Power Indicating Light
No
Contact Material
Brass
Polarized
Yes
Minimum Operating Temperature
-40 Degrees C
Maximum Operating Temperature
75 Degrees C
For Location
Indoor
Housing Material
Thermoplastic Elastomer
Market
Commercial, Industrial
For Environment
Dry
Horsepower Rating
1 hp
Weight
0.15 lb
Dielectric Strength
Withstands 2,000V minimum.
Grade - Plugs and Receptacles
Commercial
NEMA Plug Configuration - Plugs and Receptacles
5-20R
NEMA Configuration
5-20
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Conductor Range
#18 AWG to #12 AWG
OEM Brand Name
Hubbell Wiring Device-Kellems
Number Of Conductors
3-Wire
Temperature Rating
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Insulation
Insulated Body
Cord Range
0.300"-0.660" (7.6-16.8)
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Horsepower - Maximum
1
Industry Standard(s)
CSA Certified to C22.2 No. 42 File 280C NEMA® WD-6 Compliant UL Listed to UL498 File E1706
Style
Standard
Performance
Electrical:Current Interrupting: Certified for current interrupting at full rated current Dielectric Voltage: Withstands 2,000V minimum Mechanical :Terminal Accommodation #18-#12 AWG stranded copper wire only Terminal Identification: Terminals identified in accordance with UL 498 and CSA Environmental :Flammability: UL 94 HB or better IP Suitability: IP20 Operating Temperatures: Maximum continuous 75°C minimum -40°C (w/o impact)
Material - Mounting Hardware
Cord Mounted
Series
Valise
Nema Rating
5-20R
Application
Industrial/Commercial

Description

• Hinged one piece body design for easy assembly
• Powerful, offsetting cord grips clamp on individual conductors
• Assembly screws are captive and will not fall out while wiring
