  11. Straight Blade Connector, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Screw Terminals, Black, White

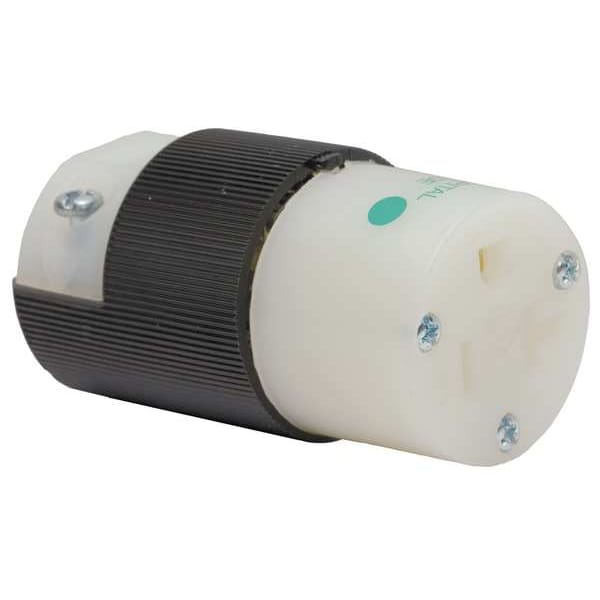

Hubbell Wiring Device-Kellems Straight Blade Connector, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Screw Terminals, Black, White HBL8319C - main

Straight Blade Connector, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Screw Terminals, Black, White

  • Mfr # HBL8319C

  • Zoro # G2055654

product price: $44.85
/ea

Key Features

NEMA Receptacle Configuration
5-20R
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL8319C
Zoro #
G2055654
UPC #
783585180502
Country of Origin
United States

Dimensions

Cord Size
0.230 in to 0.720 in
For Minimum Cable Diameter
0.23 in
Minimum Wire Size
18 AWG
Overall Length
2.78 in
Maximum Wire Size
10 AWG
For Maximum Cable Diameter
0.72 in
Length
2.78 in
Height
1.53 in
Display Size
Standard
Wire Size
#18 AWG to #10 AWG
Dimensions
2.78 in x 1.53 in x 1.53 in
Width
1.53 in

Details

Item
Straight Blade Connector
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Black, White
Cap Type
No Cap or Cover
Maximum Operating Temperature
75 Degrees C
Minimum Operating Temperature
-40 Degrees C
IP Rating
IP20
Standards
CSA Certified, NEMA WD-6, UL Listed
Resistance Properties
Dust Ignition Proof, Moisture Resistant, Weather Resistant
Material
Nylon
Special Features
Moisture, Dust, and Weather Resistant
HP
1 hp
Power Indicator
No
Antimicrobial
No
Voltage
125VAC
Grade
Hospital Grade
Corrosion Resistant
No
For Location
Indoor
Contact Material
Copper
Housing Material
Thermoplastic Elastomer
Power Indicating Light
No
Horsepower Rating
1 hp
For Environment
Dry
Polarized
Yes
Weight
0.2 lb
Dielectric Strength
Withstands 2,000V AC minimum
Grade - Plugs and Receptacles
Hospital
NEMA Configuration
5-20
NEMA Plug Configuration - Plugs and Receptacles
5-20R
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Industry Standard(s)
Certified to CSA, C22.2, No. 42 File 285 Fed. Spec. W-C-596 UL Listed to UL498 File No. E2186
Series
Hospital Grade
OEM Brand Name
Hubbell Wiring Device-Kellems
Cord Range
0.230"-0.720" (5.8-18.3)
Nema Rating
5-20R
Temperature Rating
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Style
Insulgrip
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2000V AC minimum Environmental - Flammability - UL 94 HB or better Environmental - IP Suitability - IP20 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #18-10 AWG Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Horsepower - Maximum
1
Material - Mounting Hardware
Cord Mounted
Application
Hospital Grade
Insulation
Insulated Body
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact

Description

Straight Blade Connector, Connection Orientation Straight, Current Rating 20 A, Housing Color Black, White, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Resistance Properties Dust Ignition Proof, Moisture Resistant, Weather Resistant, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Cap Type No Cap or Cover, For Maximum Cable Diameter 0.72 in, For Minimum Cable Diameter 0.23 in, Grade Hospital Grade, Grounding Grounded
