  6. Straight Blade Connector, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Screw Terminals, Yellow

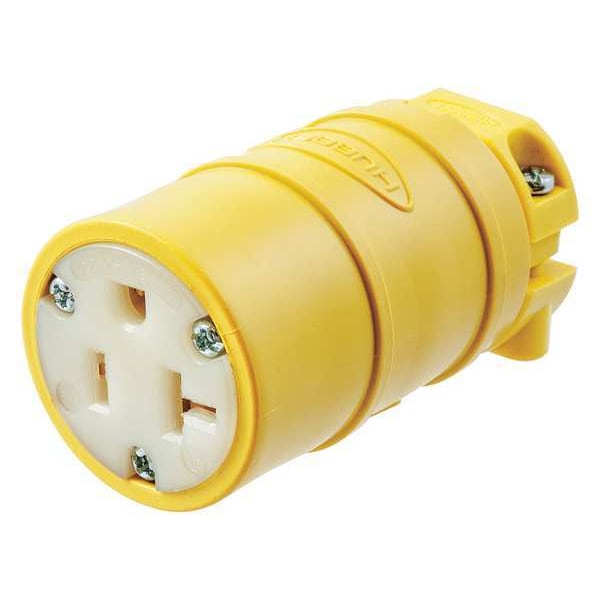

Hubbell Wiring Device-Kellems Straight Blade Connector, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Screw Terminals, Yellow HBL1533 - main

Straight Blade Connector, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Screw Terminals, Yellow

  • Mfr # HBL1533

  • Zoro # G1448151

product price:  $30.92
/ea

Key Features

NEMA Receptacle Configuration
5-20R
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL1533
Zoro #
G1448151
UPC #
783585013350
Country of Origin
United States

Dimensions

Cord Size
0.300 in to 0.655 in
For Minimum Cable Diameter
0.25 in
For Maximum Cable Diameter
0.66 in
Maximum Wire Size
12 AWG
Overall Length
3 in
Minimum Wire Size
18 AWG
Display Size
Standard
Dimensions
3.00 in x 1.61 in x 3.00 in
Wire Size
#18 AWG to #12 AWG
Height
3.00 in
Length
3.00 in
Width
1.61 in

Details

Item
Straight Blade Connector
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Yellow
Cap Type
No Cap or Cover
Maximum Operating Temperature
75 Degrees C
Minimum Operating Temperature
-40 Degrees C
IP Rating
IP20
Standards
CSA Certified, NEMA WD-6, UL Listed
Resistance Properties
Dust Ignition Proof, Moisture Resistant, Weather Resistant
Power Indicator
No
Corrosion Resistant
No
Special Features
Moisture, Dust, and Weather Resistant
Grade
General
HP
1 hp
Material
PVC
Voltage
125VAC
Antimicrobial
No
For Environment
Dry
Market
Commercial, Industrial
For Location
Indoor
Contact Material
Brass
Horsepower Rating
1 hp
Housing Material
Thermoplastic Elastomer
Power Indicating Light
No
Polarized
Yes
Insulation Material
Nylon
Weight
0.15 lb
Dielectric Strength
Withstands 2,000V minimum.
Grade - Plugs and Receptacles
General
NEMA Plug Configuration - Plugs and Receptacles
5-20R
Insulation
Insulated Body
Style
Standard
Industry Standard(s)
CSA Certified to C22.2 No. 42 File 280C NEMA® WD-6 Compliant UL Listed to UL498 File E1706
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 HB or better Environmental - IP Suitability - IP20 Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #18-12 AWG. Standed copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Cord Range
0.250"-0.655" (6.4-16.6)
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Nema Rating
5-20R
Conductor Range
#18 AWG to #12 AWG
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Series
Elastogrip
Application
Industrial/Commercial
Horsepower - Maximum
1
Material - Mounting Hardware
Cord Mounted
Temperature Rating
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
OEM Brand Name
Hubbell Wiring Device-Kellems

Description

Straight Blade Connector, Connection Orientation Straight, Current Rating 20 A, Housing Color Yellow, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Resistance Properties Dust Ignition Proof, Moisture Resistant, Weather Resistant, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Cap Type No Cap or Cover, For Maximum Cable Diameter 0.66 in, For Minimum Cable Diameter 0.25 in, Grade General, Grounding Grounded, Horsepower Rating 1 hp
