  6. Straight Blade Connector, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Screw Terminals, Yellow

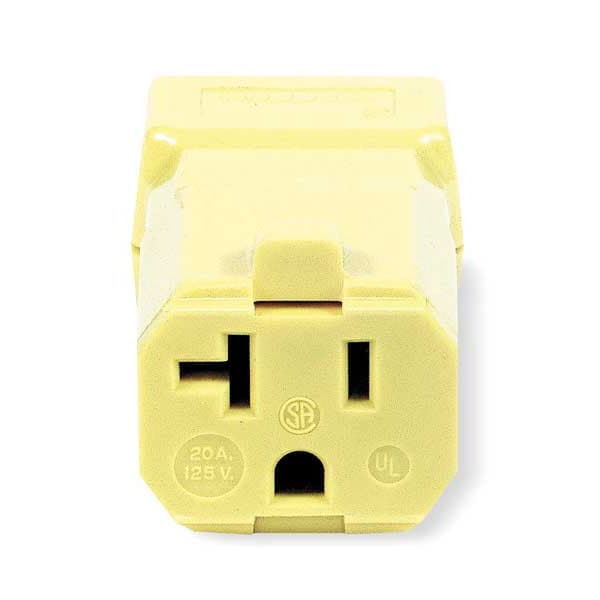

Hubbell Wiring Device-Kellems Straight Blade Connector, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Screw Terminals, Yellow HBL5369VY - main
Shop HUBBELL WIRING DEVICE-KELLEMS

Straight Blade Connector, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Screw Terminals, Yellow

  • Mfr # HBL5369VY

  • Zoro # G2668197

product price:  $30.75
/ea

Key Features

NEMA Receptacle Configuration
5-20R
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HBL5369VY
Zoro #
G2668197
UPC #
783585013176
Country of Origin
United States

Dimensions

Cord Size
0.220 in to 0.660 in
For Maximum Cable Diameter
0.66 in
Maximum Wire Size
12 AWG
For Minimum Cable Diameter
0.3 in
Overall Length
2.68 in
Minimum Wire Size
18 AWG
Width
1.32 in
Length
2.68 in
Wire Size
#18 AWG to #12 AWG
Display Size
Standard
Height
2.68 in
Dimensions
2.68 in x 1.32 in x 2.68 in

Details

Item
Straight Blade Connector
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Style
Hinged
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Yellow
Cap Type
No Cap or Cover
Maximum Operating Temperature
75 Degrees C
Minimum Operating Temperature
-40 Degrees C
IP Rating
IP20
Standards
CSA Certified, NEMA WD-6, UL Listed
Resistance Properties
Dust Ignition Proof, Moisture Resistant, Weather Resistant
HP
1 hp
Special Features
Moisture, Dust, and Weather Resistant
Material
Nylon
Corrosion Resistant
No
Voltage
125VAC
Antimicrobial
No
Power Indicator
No
Grade
Industrial
Housing Material
Thermoplastic Elastomer
For Location
Indoor
Power Indicating Light
No
For Environment
Dry
Polarized
Yes
Market
Commercial, Industrial
Contact Material
Brass
Horsepower Rating
1 hp
Weight
0.15 lb
Dielectric Strength
Withstands 2,000V minimum.
NEMA Plug Configuration - Plugs and Receptacles
5-20R
Grade - Plugs and Receptacles
Industrial
Industry Standard(s)
CSA Certified to C22.2 No. 42 File 280C NEMA® WD-6 Compliant UL Listed to UL498 File E1706
Number Of Conductors
3-Wire
Conductor Range
#18 AWG to #12 AWG
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Nema Rating
5-20R
Series
Valise
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Performance
Electrical:Current Interrupting: Certified for current interrupting at full rated current Dielectric Voltage: Withstands 2,000V minimum Mechanical :Terminal Accommodation #18-#12 AWG stranded copper wire only Terminal Identification: Terminals identified in accordance with UL 498 and CSA Environmental :Flammability: UL 94 HB or better IP Suitability: IP20 Operating Temperatures: Maximum continuous 75°C minimum -40°C (w/o impact)
Application
Industrial/Commercial
Horsepower - Maximum
1
Cord Range
0.300"-0.660" (7.6-16.8)
Insulation
Insulated Body
OEM Brand Name
Hubbell Wiring Device-Kellems
Material - Mounting Hardware
Cord Mounted
Style
Standard
Temperature Rating
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact

Description

The HUBBELL 5-20R Straight Blade Connector is a 20A, 125V connector suitable for use in industrial and commercial electrical applications. It features an assembled using a hinged one-piece body design for straightforward assembly and utilizes screw terminals for wire connections. The connector accommodates #18 AWG to #12 AWG stranded copper wires and supports cord diameters from 0.300" to 0.660". Rated for indoor use in dry conditions, it is constructed with a thermoplastic elastomer housing and nylon material.


Key Features of the HUBBELL 5-20R Straight Blade Connector:

  • Amperage/Voltage: Rated for 20 A, 125V AC

  • NEMA Configuration: 5-20R, grounded, polarized

  • Cord Range: Accepts cords from 0.300" to 0.660" diameter

  • Wire Size Compatibility: Supports #18 AWG to #12 AWG stranded copper wire

  • Connection Type: Screw terminals with captive assembly screws

  • Bodies & Materials: Thermoplastic elastomer housing; brass contacts; insulated body construction

  • Design Features: Hinged one-piece body allows access during wiring; offsetting cord grips are used to hold individual conductors in place

  • Environmental Suitability: IP20 rated; indoor use in dry locations; moisture, dust, and weather resistant (IP20)

  • Standards Compliance: CSA Certified, NEMA WD-6 compliant, UL Listed to UL498 standards
