  11. Straight Blade Inlet, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

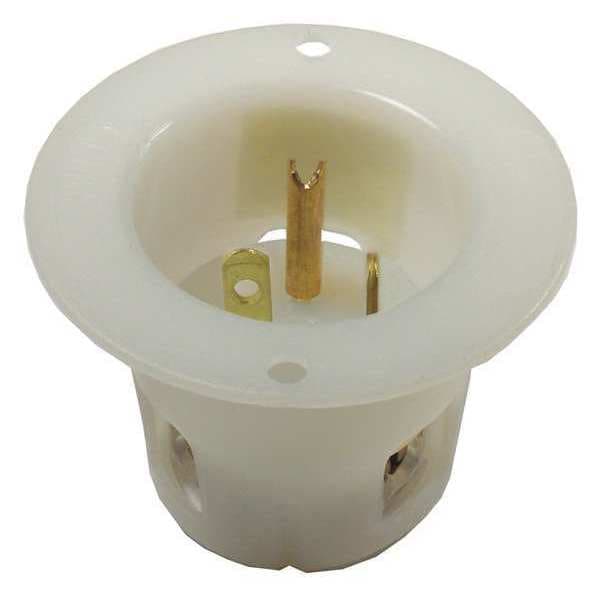

Hubbell Wiring Device-Kellems Straight Blade Inlet, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded HBL5378C - main

Straight Blade Inlet, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # HBL5378C

  • Zoro # G0494103

product price: $29.16
/ea

Key Features

Receptacle Type
Single
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL5378C
Zoro #
G0494103
UPC #
783585174402
Country of Origin
United States

Dimensions

Height
1.71 in
Width
1.69 in
Wire Size
#18 AWG to #10 AWG
Dimensions
1.71 in x 1.69 in x 1.71 in
Display Size
Standard Sized Product
Length
1.71 in

Details

Item
Straight Blade Inlet
Receptacle Type
Single
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back
Grounding
Grounded
Housing Color
White
Mount Type
Flush
Standards
CSA Certified C22.2 No. 42, NEMA WD-6, UL E2186
Resistance Properties
Impact Resistant
Flange Type
Flanged
Weather Resistant
No
HP
1 hp
Application Environment
Industrial
Mounting Type - Plugs and Receptacles
Panel
Number of Gangs
1
Outlet Type
Inlet
Corrosion Resistant
No
Outlet Type - Plugs and Receptacles
Inlet
Surge Suppression
No
Weather Resistant - Plugs and Receptacles
No
Tamper Resistant
No
Sub-Category
Inlets
Voltage
125VAC
Wiring Method - Plugs and Receptacles
Back
Material
Nylon/Polycarbonate
Mounting Type
Panel
NEMA Receptacle Configuration - Plugs and Receptacles
5-20P
Power Indicator
No
Type
Miniature
Surge Protection
No
Blade Material
Brass
Minimum Operating Temperature
-40 Degrees F
Connection Orientation
Straight
Includes
Mounting Screws
Cover Type
No Cover
Market
Industrial
Horsepower Rating
1/2 hp
Grade
Specification
Housing Material
Nylon
Maximum Operating Temperature
75 Degrees C
Flange Shape
Round
Number of Blades
3
NEMA Plug Configuration
5-20P
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Flammability
UL 94 V2.
Dielectric Voltage
Withstands 2,000V minimum
Current Interrupting
Certified for current interrupting at full rated current
Inlet Type
Standard Non-Metallic
Receptacle Grade
Heavy Duty Spec Grade
Certification
UL Listed, File E2186, Meets NEMA WD-6 requirements Listed to UL Standard 498, Certified to CSA, C22.2, No. 42
Standard
NEMA
Terminal Screw Material
#8-32 Brass, Multiple Drive
Ground Screw Material
#8-32 Brass, Multiple Drive (Green)
Poles and Wires
2 Pole, 3-Wire Grounding
Top Material
Nylon
Terminal Accommodation
#18-#10 AWG copper stranded or solid conductor only
Rating
20A, 125V
Device Color
White
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Base Material
Polycarbonate
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Horsepower
1
Mounting Screw Material
Brass-Nickel Plated
Power Contacts Material
.040" (1.0) Brass
Conductor Range
#18 AWG to #10 AWG
Industry Standard(s)
Certified to CSA, C22.2, No. 42 NEMA® WD-6 Compliant UL Listed, File E2186
Nema Rating
5-20P
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Cord Range
0.230"-0.720" (5.8-18.3)
OEM Brand Name
Hubbell Wiring Device-Kellems
Series
Extra Heavy Duty
Number Of Conductors
3-Wire
Material - Mounting Hardware
Screw Mounting
Horsepower - Maximum
0.5
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Application
Extra Heavy Duty Industrial
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-2 Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #18-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Dielectric Strength
Withstands 2,000V minimum
Insulation
Insulated Body
Wattage
2500 W

Description

• Impact resistant thermoplastic construction
• Backwired terminations for ease of installation
• #8-32 Multiple drive terminal screws
• Mounting screws included
