  6. Straight Blade Plug, 10-30P, 30 A, 125/250V AC, 3 Pole, Screw Terminals, Non-Grounded

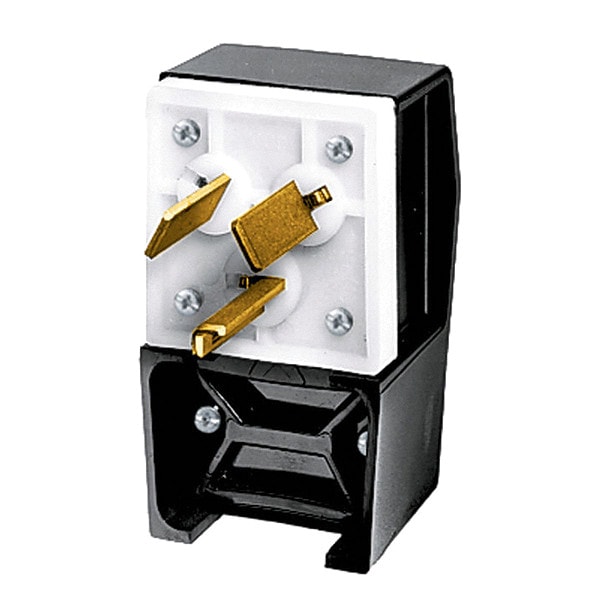

Hubbell Wiring Device-Kellems Straight Blade Plug, 10-30P, 30 A, 125/250V AC, 3 Pole, Screw Terminals, Non-Grounded HBL9333 - main
Shop HUBBELL WIRING DEVICE-KELLEMS

Straight Blade Plug, 10-30P, 30 A, 125/250V AC, 3 Pole, Screw Terminals, Non-Grounded

  • Mfr # HBL9333

  • Zoro # G0789713

product price:  $64.13
/ea

Key Features

NEMA Plug Configuration
10-30P
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
Number of Blades
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HBL9333
Zoro #
G0789713
UPC #
783585015422
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
1.187 in
For Minimum Cable Diameter
0.625 in
Cord Size
0.625 in to 1.187 in
Maximum Wire Size
4 AWG
Body Length
4.34 in
Minimum Wire Size
12 AWG
Dimensions
4.34 in x 2.75 in x 1.88 in
Wire Size
#12 AWG to #4 AWG
Length
4.34 in
Height
1.88 in
Width
2.75 in

Details

Item
Straight Blade Plug
NEMA Plug Configuration
10-30P
Current Rating
30 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Angled
Grounding
Non-Grounded
Housing Color
Black
IP Rating
IP20
Standards
CSA C22.2, UL 498
Resistance Properties
Corrosion Resistant
Special Features
Corrosion resistant
Voltage
125/250VAC
Grade
Industrial
Antimicrobial
No
Number of Wires
3
Grade - Plugs and Receptacles
Industrial
Phase - Plugs and Receptacles
3
Material
Nylon
HP
2.0 Line to Line, 2.0 Line to Neutral
Corrosion Resistant
Yes
NEMA Plug Configuration - Plugs and Receptacles
10-30P
UL 94 Flammability Rating
V-2
Maximum Operating Temperature
167 Degrees F
Housing Material
Nylon
Minimum Operating Temperature
-40 Degrees F
Polarized
Yes
Insulation Material
Nylon
Horsepower Rating
2 hp
Market
Commercial, Industrial
Terminal Screw Material
Steel - Zn plated
Cord Clamp Material
Reinforced Thermoplastic Polyester
Flammability
UL 94 V-2
Weight (Lbs.)
0.55
Operating Temp.
Maximum continuous 75°C, minimum -40°C (w/o impact).
Blade Holder Material
Reinforced Thermoplastic Polyester
Body Style
Angle
Retainer Material
Reinforced Thermoplastic Polyester
Box Terminals Material
Brass
Contact Blades Material
.060" Brass
Dielectric Strength
Withstands 2,000V minimum.
Temp. Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Horsepower - Maximum
2
Cord Range
0.625"-1.187"
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-2 Environmental - IP Suitability - IP20 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #12-#4 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
OEM Brand Name
Hubbell Wiring Device-Kellems
Industry Standard(s)
UL Listed To UL498 File E1706, CSA Certified To C22.2 No. 42 File 280

Description

Angle Straight Blade Plug, Connection Orientation Angled, Current Rating 30 A, Grounding Non-Grounded, Horsepower Rating 2 hp, Housing Color Black, IP Rating IP20, NEMA Plug Configuration 10-30P, Number of Blades 3, Number of Poles 3, Phase Single, Polarized Yes, Resistance Properties Corrosion Resistant, UL 94 Flammability Rating V-2, Voltage Rating 125/250V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, For Maximum Cable Diameter 1.187 in, For Minimum Cable Diameter 0.625 in
