  11. Straight Blade Plug, 14-30P, 30 A, 125/250V AC, 3 Pole, Screw Terminals, Grounded

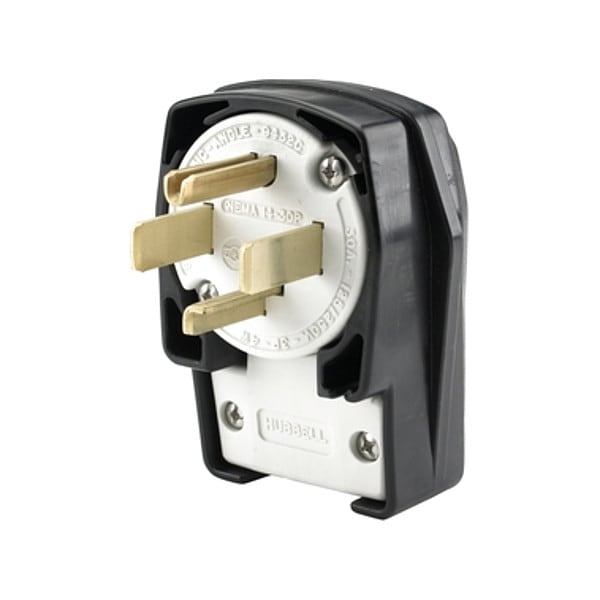

Hubbell Wiring Device-Kellems Straight Blade Plug, 14-30P, 30 A, 125/250V AC, 3 Pole, Screw Terminals, Grounded HBL9432C - main

Straight Blade Plug, 14-30P, 30 A, 125/250V AC, 3 Pole, Screw Terminals, Grounded

  • Mfr # HBL9432C

  • Zoro # G1262633

product price: $90.25
/ea
Free Shipping & Returns

Key Features

NEMA Plug Configuration
14-30P
Phase
Single
Number of Poles
3
Number of Blades
4
Wire Connection Type
Screw Terminals
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL9432C
Zoro #
G1262633
UPC #
783585015446
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
1.31 in
For Minimum Cable Diameter
0.625 in
Cord Size
0.625 in to 1.310 in
Minimum Wire Size
12 AWG
Body Length
4.5 in
Maximum Wire Size
4 AWG
Wire Size
#12 AWG to #4 AWG
Width
3.38 in
Height
2.37 in
Dimensions
4.5 in x 3.38 in x 2.37 in
Length
4.5 in

Details

Item
Straight Blade Plug
NEMA Plug Configuration
14-30P
Current Rating
30 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
Number of Blades
4
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Angled
Grounding
Grounded
Housing Color
Black
IP Rating
IP20
Standards
CSA, UL
Resistance Properties
Corrosion Resistant
Phase - Plugs and Receptacles
3
Material
Nylon
Antimicrobial
No
Corrosion Resistant
Yes
Grade
Industrial
Number of Wires
4
NEMA Plug Configuration - Plugs and Receptacles
14-30P
HP
2.0
Grade - Plugs and Receptacles
Industrial
Voltage
125/250VAC
Special Features
Corrosion resistant
Minimum Operating Temperature
-40 Degrees F
Insulation Material
Nylon
Horsepower Rating
2 hp
Market
Commercial, Industrial
Housing Material
Nylon
Maximum Operating Temperature
167 Degrees F
Polarized
Yes
UL 94 Flammability Rating
HB
Ground Contact Blade Material
.075" Brass
Weight (Lbs.)
0.8
Retainer Material
Glass Reinforced PET
Flammability
Receptacle: UL 94 V0. Plug: UL 94 HB (Housing), UL 94 V0 (Blade Holder and Retainer).
Blade Holder Material
Glass Reinforced PET
Dielectric Strength
Withstands 2,000V minimum
Ground Screw Material
3/8" Allen Head, Plated Steel
Wattage
7500 W
Cord Clamp Material
Glass Reinforced Polyester
Body Style
Angle
Horsepower - Maximum
2
Terminal Screw Material
Steel - Zn plated
Box Terminals Material
Copper
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
OEM Brand Name
Hubbell Wiring Device-Kellems
Cord Range
0.625"-1.310"
Temp. Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Operating Temp.
Maximum continuous 75°C; minimum -40°C (w/o impact)
Contact Blades Material
.100" Brass

Description

Angle Straight Blade Plug, Connection Orientation Angled, Current Rating 30 A, Grounding Grounded, Horsepower Rating 2 hp, Housing Color Black, IP Rating IP20, NEMA Plug Configuration 14-30P, Number of Blades 4, Number of Poles 3, Phase Single, Polarized Yes, Resistance Properties Corrosion Resistant, UL 94 Flammability Rating HB, Voltage Rating 125/250V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, For Maximum Cable Diameter 1.31 in, For Minimum Cable Diameter 0.625 in
