Shop HUBBELL WIRING DEVICE-KELLEMS

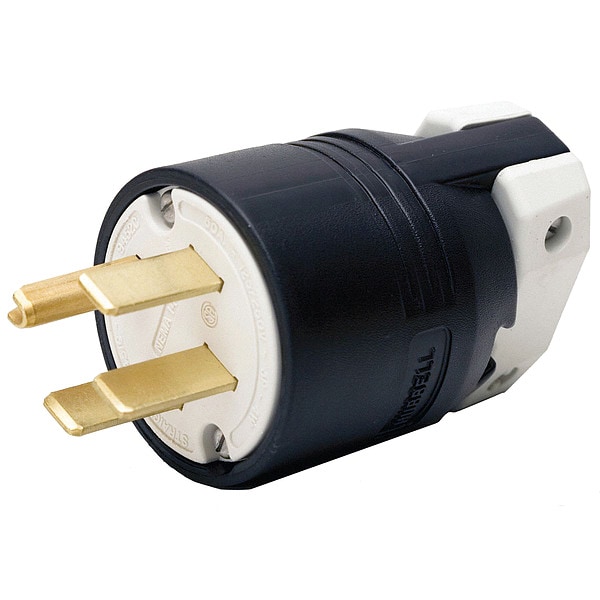

Straight Blade Plug, 14-50P, 50 A, 125/250V AC, 3 Pole, Screw Terminals, Grounded

  • Mfr # HBL9451C

  • Zoro # G0673766

product price:
$
98.99
/ea

Key Features

NEMA Plug Configuration
14-50P
Phase
Single
Number of Poles
3
Number of Blades
4
Wire Connection Type
Screw Terminals
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
HBL9451C
Zoro #
G0673766
UPC #
783585015323
Country of Origin
United States
Item
Straight Blade Plug
NEMA Plug Configuration
14-50P
Current Rating
50 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
Number of Blades
4
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Grounding
Grounded
Housing Color
Black, White
IP Rating
IP20
Standards
CSA, UL
Resistance Properties
Corrosion Resistant
Boot Code
C
Grade - Plugs and Receptacles
Industrial
Number of Wires
4
Voltage
125/250VAC
Material
Nylon
Corrosion Resistant
Yes
Special Features
Corrosion resistant
Grade
Industrial
Antimicrobial
No
HP
2 hp to 3 hp
NEMA Plug Configuration - Plugs and Receptacles
14-50P
Phase - Plugs and Receptacles
3
Market
Commercial, Industrial
UL 94 Flammability Rating
HB
Minimum Operating Temperature
-40 Degrees F
Horsepower Rating
2 hp, 3 hp
Polarized
Yes
Insulation Material
Nylon
Maximum Operating Temperature
167 Degrees F
Housing Material
Nylon
Body Style
Straight
Box Terminals Material
Copper
Ground Screw Material
3/8" Allen Head, Plated Steel
Blade Holder Material
Glass Reinforced PET
Cord Clamp Material
Glass Reinforced Polyester
Retainer Material
Glass Reinforced PET
Operating Temp.
Maximum continuous 75°C, minimum -40°C (w/o impact).
Terminal Screw Material
Steel - Zn plated
Ground Contact Blade Material
.075" Brass
Dielectric Strength
Withstands 2,000V minimum
Temp. Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Weight (Lbs.)
0.85
Flammability
UL 94 HB
Contact Blades Material
.100" Brass
Industry Standard(s)
CSA Certified UL Listed File E1706
Cord Range
0.625"-1.310"
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 HB Environmental - IP Suitability - IP20 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #12 AWG through #4 AWG copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Horsepower - Maximum
3
OEM Brand Name
Hubbell Wiring Device-Kellems

Description

Straight Blade Plug, Connection Orientation Straight, Current Rating 50 A, Grounding Grounded, Horsepower Rating 2 hp, 3 hp, Housing Color Black, IP Rating IP20, NEMA Plug Configuration 14-50P, Number of Blades 4, Number of Poles 3, Phase Single, Polarized Yes, Resistance Properties Corrosion Resistant, UL 94 Flammability Rating HB, Voltage Rating 125/250V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, For Maximum Cable Diameter 1.31 in, For Minimum Cable Diameter 0.625 in
