Shop HUBBELL WIRING DEVICE-KELLEMS

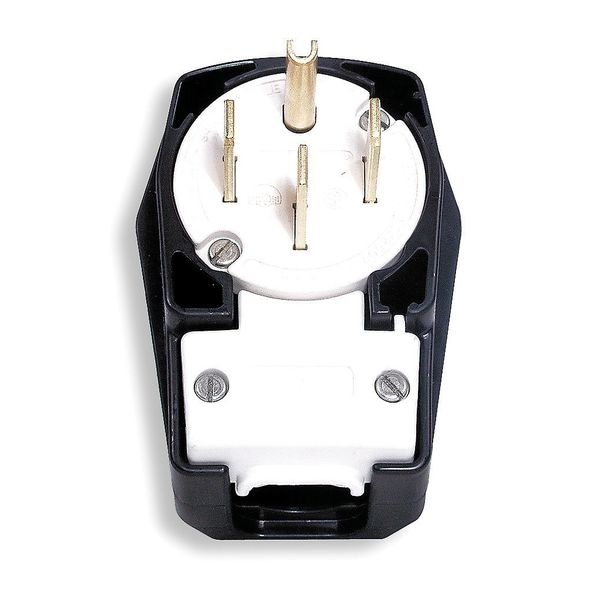

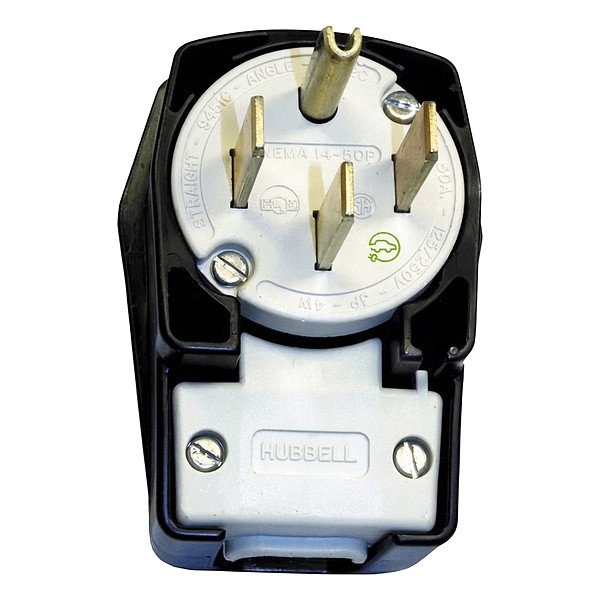

Straight Blade Plug, 14-50P, 50 A, 125/250V AC, 3 Pole, Screw Terminals, Grounded

  • Mfr # HBL9452C

  • Zoro # G2824622

product price:
$
112.99
/ea
Free Shipping & Returns

Key Features

NEMA Plug Configuration
14-50P
Phase
Single
Number of Poles
3
Number of Blades
4
Wire Connection Type
Screw Terminals
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL9452C
Zoro #
G2824622
UPC #
783585015330
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
1.31 in
For Minimum Cable Diameter
0.625 in
Cord Size
0.625 in to 1.310 in
Body Length
4.5 in
Height
2.37 in
Length
4.5 in
Width
3.38 in
Dimensions
4.5 in x 3.38 in x 2.37 in

Details

Item
Straight Blade Plug
NEMA Plug Configuration
14-50P
Current Rating
50 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
Number of Blades
4
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Angled
Grounding
Grounded
Housing Color
Black
IP Rating
IP20
Standards
CSA C22.2, UL 498
Resistance Properties
Corrosion Resistant
Material
Nylon
Corrosion Resistant
Yes
Antimicrobial
No
Special Features
Corrosion resistant
HP
2 hp to 3 hp
NEMA Plug Configuration - Plugs and Receptacles
14-50P
Grade - Plugs and Receptacles
Industrial
Number of Wires
4
Grade
Industrial
Voltage
125/250VAC
Phase - Plugs and Receptacles
1
Polarized
Yes
Maximum Operating Temperature
167 Degrees F
Minimum Operating Temperature
-40 Degrees F
Horsepower Rating
3 hp
Market
Commercial, Industrial
Insulation Material
Nylon
Housing Material
Nylon
Operating Temp.
Maximum continuous 75°C, minimum -40°C (w/o impact).
Cord Clamp Material
Glass Reinforced Polyester
Blade Holder Material
Glass Reinforced PET
Ground Screw Material
3/8" Allen Head, Plated Steel
Terminal Screw Material
Steel - Zn plated
Retainer Material
Glass Reinforced PET
Weight (Lbs.)
0.8
Flammability
UL 94 HB or better.
Temp. Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Box Terminals Material
Copper
Ground Contact Blade Material
.075" Brass
Contact Blades Material
.100" Brass
Dielectric Strength
Withstands 2,000V minimum
Body Style
Angle
Horsepower - Maximum
3
Industry Standard(s)
UL Listed to UL498 File E1706, CSA Certified to C22.2 No. 42 File 280
Cord Range
0.625"-1.310"
OEM Brand Name
Hubbell Wiring Device-Kellems
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact

Description

• Material & Construction: Crafted from industrial-grade nylon, this durable plug withstands daily use, ensuring long-lasting, reliable performance essential for EV charging system integrity.
• Configuration: Includes a 4-position, angled layout with 3 poles and 4 wires, grounding included. It meets EV charging's high demands and boosts safety by reducing electrical hazards.
• Electrical Rating: Boasting a 50A, 125/250V capacity, this plug is suited for high-powered EV charging stations, ensuring efficient and reliable power delivery.
• Safety Compliance: This plug meets strict safety standards with a grounding pin and heavy-duty materials, reducing electrical shock risks and ensuring a secure connection to protect equipment and users.
• Ease of Use: Designed with an angled interface and ergonomic handle, this plug allows easy operation and handling in tight spaces, ensuring safe and effortless insertion and removal.
• Long-Term Reliability: Investing in Hubbell’s Straight Blade Male Plug means choosing a product that will not only meet the current demands of EV charging but also continue to deliver performance and safety long into the future.
