  11. Straight Blade Plug, 15-60P, 60 A, 250V AC, 3 Pole, Screw Terminals, Grounded

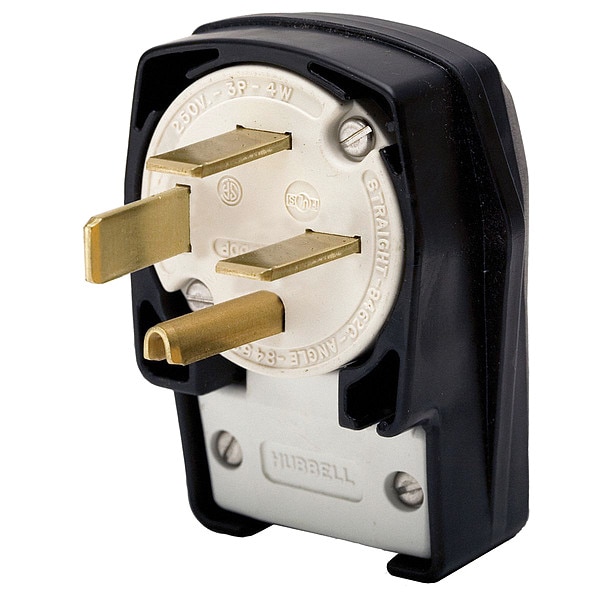

Hubbell Wiring Device-Kellems Straight Blade Plug, 15-60P, 60 A, 250V AC, 3 Pole, Screw Terminals, Grounded HBL8462C - main

Straight Blade Plug, 15-60P, 60 A, 250V AC, 3 Pole, Screw Terminals, Grounded

  • Mfr # HBL8462C

  • Zoro # G1706932

product price: $137.99
/ea
Free Shipping & Returns

Key Features

NEMA Plug Configuration
15-60P
Phase
Three
Number of Poles
3
Number of Blades
4
Wire Connection Type
Screw Terminals
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL8462C
Zoro #
G1706932
UPC #
783585015200
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
1.31 in
For Minimum Cable Diameter
0.625 in
Cord Size
0.625 in to 1.310 in
Body Length
4.5 in
Outside Diameter
2.72 in
Dimensions
4.5 in x 2.72 in x 2.38 in
Width
2.72 in
Height
2.38 in
Length
4.5 in

Details

Item
Straight Blade Plug
NEMA Plug Configuration
15-60P
Current Rating
60 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
Number of Blades
4
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Angled
Grounding
Grounded
Housing Color
Black
IP Rating
IP20
Standards
CSA C22.2, UL 498
Resistance Properties
Corrosion Resistant
Material
Nylon
NEMA Plug Configuration - Plugs and Receptacles
15-60P
HP
10.0
Phase - Plugs and Receptacles
3
Voltage
250VAC
Corrosion Resistant
Yes
Grade
Industrial
Antimicrobial
No
Number of Wires
4
Special Features
Corrosion resistant
Grade - Plugs and Receptacles
Industrial
Insulation Material
Nylon
Minimum Operating Temperature
-40 Degrees F
Market
Commercial, Industrial
Polarized
Yes
Maximum Operating Temperature
167 Degrees F
Horsepower Rating
10 hp
Housing Material
Nylon
Ground Contact Blade Material
.075" Brass
Temp. Rise
Max 30C after 250 cycles OL at 200 percent rated current
Environment
Dry
Dielectric Strength
Withstands 2000V per UL498
Body Material
Impact Modified Nylon
Weight (Lbs.)
0.8
Box Terminals Material
Copper
Retainer Material
Glass Reinforced PET
Contact Blades Material
.100" Brass
Blade Holder Material
Glass Reinforced PET
Blade Material
Solid Brass
Flammability
Rated HB or better UL94
Cord Clamp Material
Glass Reinforced Polyester
Operating Temp.
-40°C to 60°C; Maximum continuous 75°C, minimum -40°C (w/o impact).
Ground Screw Material
3/8" Allen Head, Plated Steel
Body Style
Angle
Terminal Screw Material
Steel - Zn plated
Horsepower - Maximum
10
Industry Standard(s)
UL Listed to UL498 File E1706, CSA Certified to C22.2 No. 42 File 280
OEM Brand Name
Hubbell Wiring Device-Kellems
Cord Range
0.625"-1.310"
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact

Description

Angle Straight Blade Plug, Connection Orientation Angled, Current Rating 60 A, Grounding Grounded, Horsepower Rating 10 hp, Housing Color Black, IP Rating IP20, NEMA Plug Configuration 15-60P, Number of Blades 4, Number of Poles 3, Phase Three, Polarized Yes, Resistance Properties Corrosion Resistant, Voltage Rating 250V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, For Maximum Cable Diameter 1.31 in, For Minimum Cable Diameter 0.625 in, Grade Industrial
