  11. Straight Blade Plug, 5-15P, 15 A, 125V, 2 Pole, Screw Terminals, Grounded

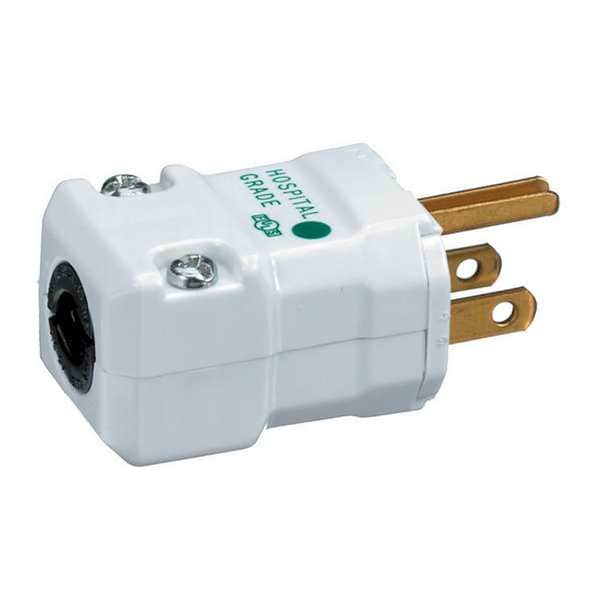

Hubbell Wiring Device-Kellems Straight Blade Plug, 5-15P, 15 A, 125V, 2 Pole, Screw Terminals, Grounded HBL8115V - main

Straight Blade Plug, 5-15P, 15 A, 125V, 2 Pole, Screw Terminals, Grounded

  • Mfr # HBL8115V

  • Zoro # G1168474

product price: $15.55
/ea

Key Features

NEMA Plug Configuration
5-15P
Phase
Single
Number of Poles
2
Number of Blades
3
Wire Connection Type
Screw Terminals
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL8115V
Zoro #
G1168474
UPC #
783585015637
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
0.66 in
For Minimum Cable Diameter
0.30 in
Cord Size
0.300 in to 0.660 in
Dimensions
1.88 in x 1.25 in x 1.13 in
Cord Dia. Range
0.300-0.660 (7.6-16.8)
Wire Size
#16 AWG to #12 AWG
Minimum Wire Size
16 AWG
Body Length
1.88 in
Maximum Wire Size
12 AWG
Length
1.88 in
Height
1.13 in
Width
1.25 in

Details

Item
Straight Blade Plug
NEMA Plug Configuration
5-15P
Current Rating
15 A
Voltage Rating
125V
Phase
Single
Number of Poles
2
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Hinged
Connection Orientation
Straight
Grounding
Grounded
Housing Color
White
IP Rating
IP20
Standards
CSA C22.2, UL 498
Resistance Properties
Corrosion Resistant
Color
White
Corrosion Resistant
Yes
Antimicrobial
No
Voltage
125VAC
Phase - Plugs and Receptacles
1
NEMA Plug Configuration - Plugs and Receptacles
5-15P
Number of Wires
3
Material
Nylon
HP
0.5
Grade
Hospital Grade
Special Features
Corrosion resistant
Grade - Plugs and Receptacles
Hospital
Type
Plugs
Nema Rating
5-15P
Amperage
15 A
Application
Hospital Grade
Number Of Wires
3-Wire
Dielectric Strength
Withstands 2,000V minimum
Series
Hospital Grade
Carton Quantity
10
Brand
Hubbell Wiring Device-Kellems
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Style
Valise
Maximum Horsepower
0.5
Maximum Operating Temperature
167 Degrees F
UL 94 Flammability Rating
HB
Horsepower Rating
1/2 hp
Housing Material Finish
Nickel Plated
Insulation Material
Nylon
Polarized
Yes
Minimum Operating Temperature
-40 Degrees F
Housing Material
Nylon
Flammability
UL 94 HB
Body Style
Straight
Connector Type
Valise
Weight (Lbs.)
0.15
Operating Temp.
Maximum continuous 75°C; minimum -40°C (w/o impact)
Cord Range
0.300"-0.660" (7.6-16.8)
Industry Standard(s)
Certified to CSA, C22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2000V AC minimum Environmental - Flammability - UL 94 HB Environmental - IP Suitability - IP20 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #16 to #12 AWG Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
OEM Brand Name
Hubbell Wiring Device-Kellems
Horsepower - Maximum
0.5

Description

Straight Blade Plug, Connection Orientation Straight, Current Rating 15 A, Grounding Grounded, Horsepower Rating 1/2 hp, Housing Color White, IP Rating IP20, NEMA Plug Configuration 5-15P, Number of Blades 3, Number of Poles 2, Phase Single, Polarized Yes, Resistance Properties Corrosion Resistant, UL 94 Flammability Rating HB, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Style Hinged, For Maximum Cable Diameter 0.66 in, For Minimum Cable Diameter 0.3 in
