  11. Straight Blade Plug, 5-20P, 20 A, 125V, 2 Pole, Screw Terminals, Grounded

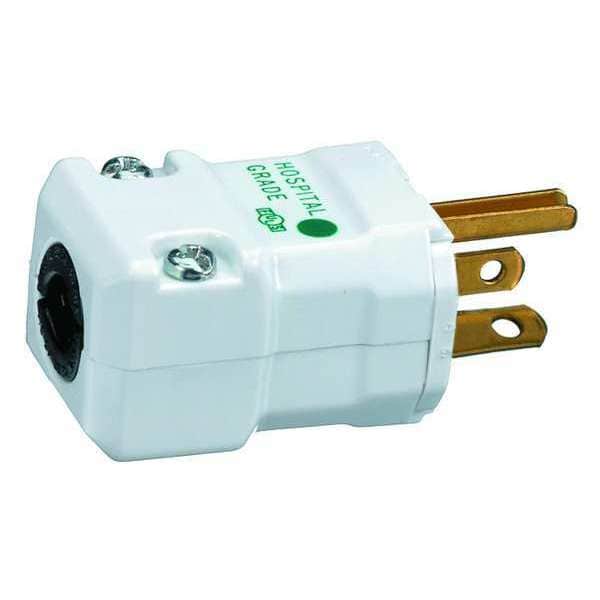

Hubbell Wiring Device-Kellems Straight Blade Plug, 5-20P, 20 A, 125V, 2 Pole, Screw Terminals, Grounded HBL8364V - main

Straight Blade Plug, 5-20P, 20 A, 125V, 2 Pole, Screw Terminals, Grounded

  • Mfr # HBL8364V

  • Zoro # G0627645

product price: $23.39
/ea

Key Features

NEMA Plug Configuration
5-20P
Phase
Single
Number of Poles
2
Number of Blades
3
Wire Connection Type
Screw Terminals
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL8364V
Zoro #
G0627645
UPC #
783585016337
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
0.66 in
For Minimum Cable Diameter
0.30 in
Cord Size
0.300 in to 0.660 in
Cord Dia. Range
0.300-0.660 (7.6-16.8)
Dimensions
1.88 in x 1.5 in x 1.13 in
Body Length
1.88 in
Width
1.5 in
Height
1.13 in
Length
1.88 in

Details

Item
Straight Blade Plug
NEMA Plug Configuration
5-20P
Current Rating
20 A
Voltage Rating
125V
Phase
Single
Number of Poles
2
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Hinged
Connection Orientation
Straight
Grounding
Grounded
Housing Color
White
IP Rating
IP20
Standards
CSA C22.2, UL 498
Resistance Properties
Corrosion Resistant
Number of Wires
3
Voltage
125VAC
NEMA Plug Configuration - Plugs and Receptacles
5-20P
Corrosion Resistant
Yes
Phase - Plugs and Receptacles
1
Grade - Plugs and Receptacles
Hospital
Material
Nylon
Antimicrobial
No
Color
White
Grade
Hospital Grade
HP
1.0
Special Features
Corrosion resistant
Type
Plug
Dielectric Strength
Withstands 2,000V minimum
Amperage
20 A
Nema Rating
5-20P
Brand
Hubbell Wiring Device-Kellems
Series
Hospital Grade
Number Of Wires
3-Wire
Style
Valise
Carton Quantity
10
Maximum Horsepower
1
Horsepower Rating
1 hp
UL 94 Flammability Rating
HB
Maximum Operating Temperature
167 Degrees F
Insulation Material
Nylon
Polarized
Yes
Housing Material Finish
Nickel Plated
Housing Material
Nylon
Minimum Operating Temperature
-40 Degrees F
Weight (Lbs.)
0.1
Operating Temp.
Maximum continuous 75°C; minimum -40°C (w/o impact)
Body Style
Straight
Flammability
UL 94 HB
Connector Type
Valise
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2000V AC minimum Environmental - Flammability - UL 94 HB Environmental - IP Suitability - IP20 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #16 to #12 AWG Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Horsepower - Maximum
1
OEM Brand Name
Hubbell Wiring Device-Kellems
Application
Hospital Grade
Industry Standard(s)
Certified to CSA, C22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Cord Range
0.300"-0.660" (7.6-16.8)
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact

Description

Straight Blade Plug, Connection Orientation Straight, Current Rating 20 A, Grounding Grounded, Horsepower Rating 1 hp, Housing Color White, IP Rating IP20, NEMA Plug Configuration 5-20P, Number of Blades 3, Number of Poles 2, Phase Single, Polarized Yes, Resistance Properties Corrosion Resistant, UL 94 Flammability Rating HB, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Style Hinged, For Maximum Cable Diameter 0.66 in, For Minimum Cable Diameter 0.3 in
