Shop HUBBELL WIRING DEVICE-KELLEMS

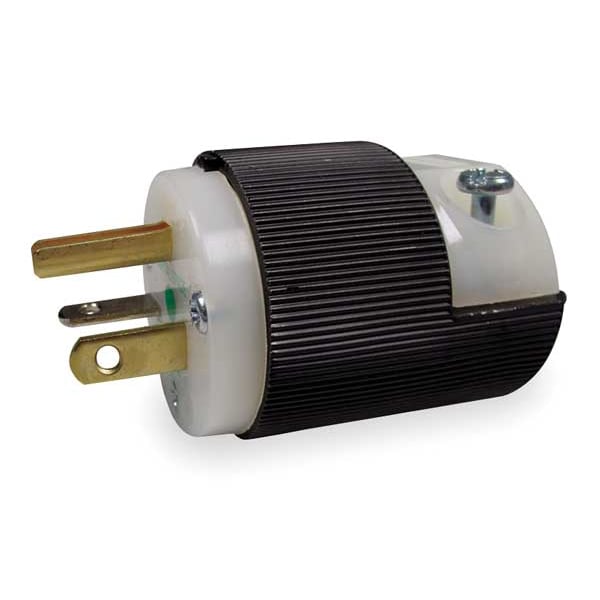

Straight Blade Plug, 5-20P, 20 A, 125V AC, 2 Pole, Screw Terminals, Grounded

  • Mfr # HBL8315C

  • Zoro # G3094077

product price:
$
28.59
/ea

Key Features

NEMA Plug Configuration
5-20P
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL8315C
Zoro #
G3094077
UPC #
783585179957
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
0.72 in
For Minimum Cable Diameter
0.23 in
Cord Size
0.230 in to 0.720 in
Outside Diameter
1.53 in
Minimum Wire Size
18 AWG
Maximum Wire Size
10 AWG
Body Length
1.97 in
Height
1.53 in
Wire Size
#18 AWG to #10 AWG
Width
1.53 in
Dimensions
1.97 in x 1.53 in x 1.53 in
Length
1.97 in

Details

Item
Straight Blade Plug
NEMA Plug Configuration
5-20P
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Grounding
Grounded
Housing Color
Black, White
IP Rating
IP20
Standards
CSA C22.2, UL 498
Resistance Properties
Corrosion Resistant
Grade - Plugs and Receptacles
Hospital
Voltage
125VAC
NEMA Plug Configuration - Plugs and Receptacles
5-20P
Special Features
Corrosion resistant
Phase - Plugs and Receptacles
1
Material
Nylon
Corrosion Resistant
Yes
HP
1.0
Grade
Hospital Grade
Antimicrobial
No
Number of Wires
3
Housing Material Finish
Nickel Plated
Polarized
Yes
Housing Material
Nylon
Maximum Operating Temperature
167 Degrees F
Minimum Operating Temperature
-40 Degrees F
Insulation Material
Nylon
Horsepower Rating
1 hp
UL 94 Flammability Rating
HB
Weight (Lbs.)
0.15
Flammability
UL 94 HB or better
Operating Temp.
Maximum continuous 75°C; minimum -40°C (w/o impact)
Dielectric Strength
Withstands 2000V AC minimum
Connector Type
Insulgrip
Body Style
Straight
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2000V AC minimum Environmental - Flammability - UL 94 HB or better Environmental - IP Suitability - IP20 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #18-10 AWG Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
OEM Brand Name
Hubbell Wiring Device-Kellems
Horsepower - Maximum
1
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Cord Range
0.230"-0.720" (5.8-18.3)
Application
Hospital Grade
Series
Hospital Grade
Industry Standard(s)
Certified to CSA, C22.2, No. 42 File 285 Fed. Spec. W-C-596 UL Listed to UL498 File No. E2186
Style
Insulgrip

Description

Straight Blade Plug, Connection Orientation Straight, Current Rating 20 A, Grounding Grounded, Horsepower Rating 1 hp, Housing Color Black, White, IP Rating IP20, NEMA Plug Configuration 5-20P, Number of Blades 3, Number of Poles 2, Phase Single, Polarized Yes, Resistance Properties Corrosion Resistant, UL 94 Flammability Rating HB, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, For Maximum Cable Diameter 0.72 in, For Minimum Cable Diameter 0.23 in
