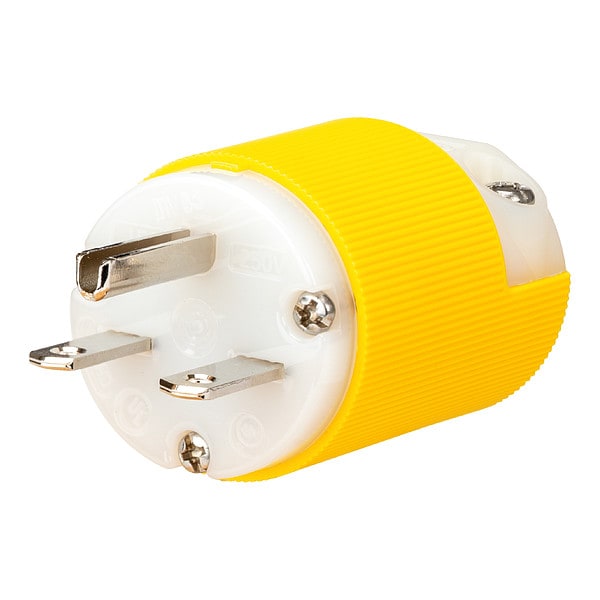

Straight Blade Plug, 6-15P, 15 A, 250V AC, 2 Pole, Spring Clamp Terminals, Grounded
Mfr # HBL56CM66CST
Zoro # G213370409
product price: $20.15
/eaKey Features
NEMA Plug Configuration
6-15P
Current Rating
15 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
HBL56CM66CST
Zoro #
G213370409
UPC #
783585964867
Country of Origin
China
Dimensions
For Maximum Cable Diameter
0.72 in
For Minimum Cable Diameter
0.23 in
Overall Length
3.28 in
Body Length
2.096 in
Minimum Wire Size
14 AWG
Face Diameter
1.527 in
Outside Diameter
1.32 in
Maximum Wire Size
10 AWG
Description
Straight Blade Plug, Connection Orientation Straight, Current Rating 15 A, Grounding Grounded, Horsepower Rating 1 1/2 hp, Housing Color White, Yellow, IP Rating IP20, NEMA Plug Configuration 6-15P, Number of Blades 3, Number of Poles 2, Phase Single, Polarized Yes, Resistance Properties Corrosion Resistant, Non-Conductive Housing, UL 94 Flammability Rating V-2, Voltage Rating 250V AC, Wire Connection Type Spring Clamp Terminals, Wiring Style Standard, Face Diameter 1.527 in
