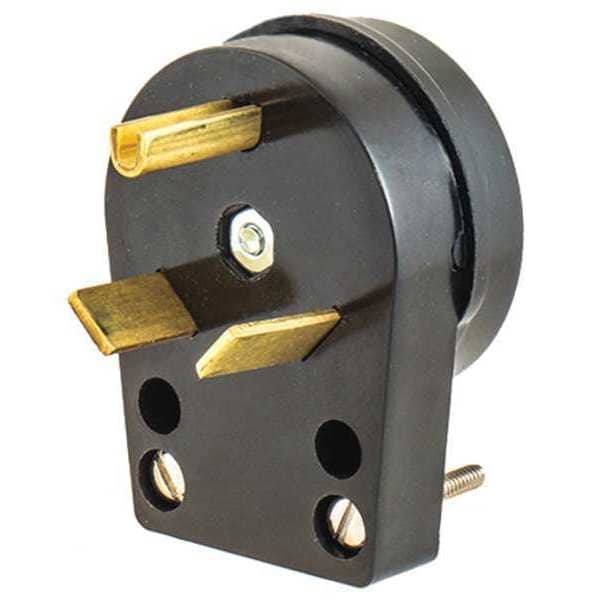

Shop HUBBELL WIRING DEVICE-KELLEMS

Straight Blade Plug, TT-30P, 30 A, 125V AC, 2 Pole, Screw Terminals, Grounded

  • Mfr # HBLTT30P

  • Zoro # G8096579

product price:  $29.19
/ea

Key Features

Phase
Single
Number of Poles
2
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBLTT30P
Zoro #
G8096579
UPC #
00783585530512
Country of Origin
Mexico

Dimensions

For Maximum Cable Diameter
1.187 in
For Minimum Cable Diameter
0.625 in
Cord Size
0.430 in to 0.625 in

Details

Item
Straight Blade Plug
NEMA Plug Configuration
TT-30P
Current Rating
30 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Angled
Grounding
Grounded
Housing Color
Black
IP Rating
IP20
Standards
CSA, UL
Resistance Properties
Chemical Resistant, Impact Resistant
Number of Wires
3
HP
2.0
Material
Thermoplastic Elastomer
Antimicrobial
No
NEMA Plug Configuration - Plugs and Receptacles
TT-30P
Phase - Plugs and Receptacles
1
Corrosion Resistant
No
Grade - Plugs and Receptacles
Specification
Grade
Industrial
Polarized
Yes
Housing Material
Thermoplastic Elastomer
Horsepower Rating
2 hp
Insulation Material
Thermoplastic
Market
Commercial, Industrial

Description

The HUBBELL 3 Wire Angle Straight Blade Plug is an electrical plug intended for commercial and industrial applications. It features a three-wire, two-pole configuration with an angled orientation and is rated for 30 amps at 125V AC. The plug supports standard wiring style with screw terminals and accommodates cord sizes from 0.430 in to 0.625 in diameter.


Key Features of the HUBBELL 3 Wire Angle Straight Blade Plug:

  • Current/Voltage Rating: Rated for 30A, 125V AC single-phase applications

  • NEMA Configuration: TT-30P, compatible with NEMA TT-30P receptacles

  • Cord Accommodation: Accepts cords from 0.430 in to 0.625 in diameter; maximum cable diameter up to 1.187 in

  • Material Construction: Housing constructed from materials rated as chemical-resistant and impact-resistant per manufacturer specifications

  • Resistance Properties: Housing constructed from materials rated as chemical-resistant and impact-resistant per manufacturer specifications

  • Connection Orientation: Angled body allows installation in areas with restricted space

  • Wire Connection Type: Screw terminal connections support proper wiring attachment

  • Grounding & Polarization: Grounded, polarized configuration supports use with grounded circuits
