  6. Straight Blade Receptacle, 10-20R, 20 A, 125/250V AC, 3 Pole, 3 Wire, Flush Mount, Non-Grounded

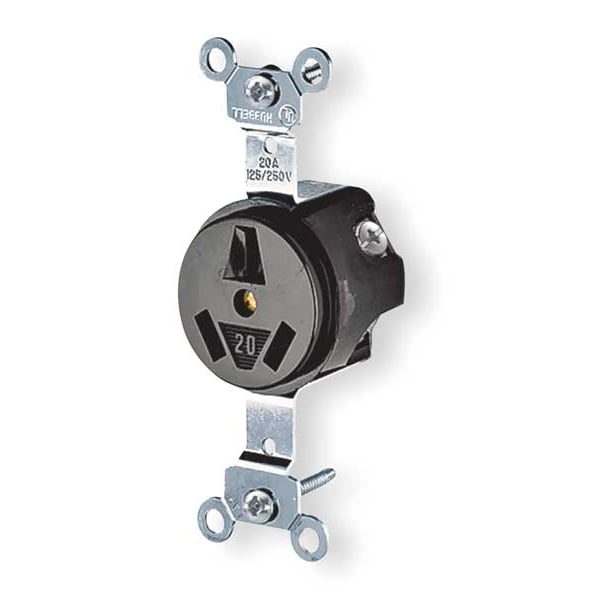

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 10-20R, 20 A, 125/250V AC, 3 Pole, 3 Wire, Flush Mount, Non-Grounded HBL6810 - main

Straight Blade Receptacle, 10-20R, 20 A, 125/250V AC, 3 Pole, 3 Wire, Flush Mount, Non-Grounded

  • Mfr # HBL6810

  • Zoro # G3067206

product price:  $32.74
/ea

Key Features

Receptacle Type
Single
NEMA Receptacle Configuration
10-20R
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL6810
Zoro #
G3067206
UPC #
783585014401
Country of Origin
United States

Dimensions

Height
0.97 in
Width
1.39 in
Overall Depth
1 in
Face Diameter
1.4 in
Mount Hole Center-to-Center Height
3.3 in
Maximum Wire Size
10 AWG
Minimum Wire Size
14 AWG
Display Size
Standard Sized Product
Wire Size
#14 AWG to #10 AWG
Dimensions
3.28 in x 1.39 in x 0.97 in
Length
3.28 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Single
NEMA Receptacle Configuration
10-20R
Current Rating
20 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Non-Grounded
Housing Color
Black
Mount Type
Flush
IP Rating
IP20
Standards
CSA C22.2 No. 42 File 280C, NEMA WD-6, UL 498 File E1706
Resistance Properties
Standard Resistance
Flange Type
Non-Flanged
Application Environment
Industrial
Mounting Type
Flush
Boot Code
A
Number of Gangs
1
Voltage
250VAC
Material
Phenolic
Weather Resistant - Plugs and Receptacles
No
Mounting Type - Plugs and Receptacles
Flush
Outlet Type
Single
Corrosion Resistant
No
Surge Suppression
No
Sub-Category
Single Receptacles
Power Indicator
No
NEMA Receptacle Configuration - Plugs and Receptacles
10-20R
Outlet Type - Plugs and Receptacles
Single
HP
1 hp
NEMA Configuration
10-20
Wiring Method - Plugs and Receptacles
Back and Side
Weather Resistant
No
Tamper Resistant
No
Type
Receptacle Straight Blade
Includes Mounting Hardware
Yes
For Location
Indoor
Surge Protection
No
Market
Industrial
Shrouded
No
Maximum Operating Temperature
167 Degrees F
Additional Electrical Protection
Standard Protection
Housing Material
Nylon
Wire Connection Types
Screw Terminals
Minimum Operating Temperature
-40 Degrees F
Grade
Federal Specification
Cover Type
No Cover
Contact Material
Brass
Includes
Grounding Clip, Mounting Hardware
UL 94 Flammability Rating
V-1
Number of Poles & Wires
3 Pole / 3 Wire
AFCI
No
Key Resistance Properties
Standard Resistance
Horsepower Rating
2 hp
Connection Orientation
Straight
NEMA Enclosure Rating
1
GFCI
No
Polarized
Yes
Poles and Wires
3 Pole, 3-Wire Non-Grounding
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Face Shape
Traditional
Terminal Screw Material
#8-32 Brass /Ni plated for neutral
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Mounting Strap Material
.050" (1.3) Brass-Ni Plated
Dielectric Voltage
Withstands 2,000V minimum
Device Color
Black
Cord Accomodation
.310"-.430"(7.9-11.9)
Rating
20A, 125/250V
Horsepower
2(1)
Mounting Screw Material
Steel-Zinc Plated
IP Suitability
IP20
Face Style
Finder Groove
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only
Top Material
Phenolic
Current Interrupting
Certified for current interrupting at full rated current
Flammability
UL 94 V-1 or better, UL 94 V2.
Receptacle Grade
Compact Spec Grade
Power Contacts Material
.037" (.9) Brass
Receptacle Style
Single
Certification
UL Listed, File E2186, Listed to UL Standard 498
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Standard
NEMA
Base Material
Phenolic
Application
Heavy Duty
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
OEM Brand Name
Hubbell Wiring Device-Kellems
Industry Standard(s)
CSA Certified to C22.2 No. 42 File 280C NEMA® WD-6 Compliant UL Listed to UL498 File E1706
Dielectric Strength
Withstands 2,000V minimum
Material - Mounting Hardware
Screw Mounting
Series
Extra Heavy Duty
Horsepower - Maximum
2 (1)
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-1 or better Environmental - IP Suitability - IP20 Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) Mechanical - Cord Accomodation - .310"-.430"(7.9-11.9) Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Nema Rating
10-20R
Wattage
5000 W

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Non-Grounded, Housing Color Black, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 10-20R, Number of Gangs 1, Number of Poles 3, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Single, Standards CSA C22.2 No. 42 File 280C, NEMA WD-6, UL 498 File E1706, Voltage Rating 125/250V AC, Wire Connection Type Screw Terminals
