  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

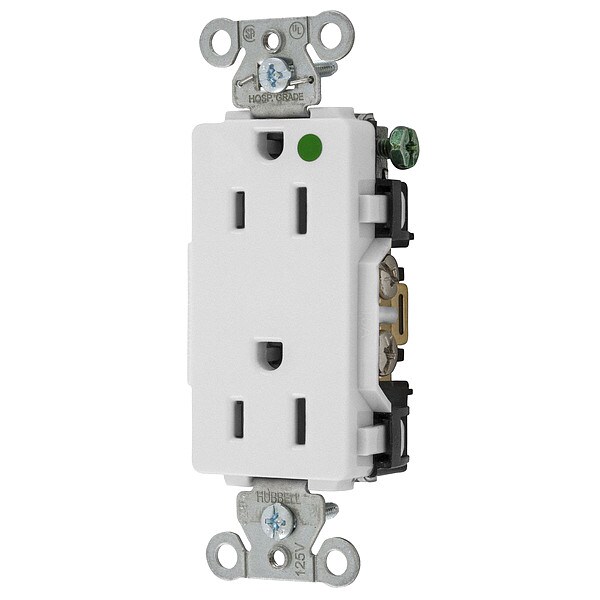

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded 2172W - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # 2172W

  • Zoro # G4440515

product price: $19.75
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2172W
Zoro #
G4440515
UPC #
783585196688
Country of Origin
Mexico

Dimensions

Width
1.57 in
Height
1.15 in
Face Plate Height
2.7 in
Minimum Wire Size
14 AWG
Face Plate Width
1.6 in
Maximum Wire Size
10 AWG
Mount Hole Center-to-Center Height
3.3 in
Overall Depth
1.2 in
Display Size
Standard Sized Product
Dimensions
3.28 in x 1.57 in x 1.15 in
Wire Size
#14 AWG to #10 AWG
Length
3.28 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
White
Mount Type
Flush
IP Rating
IP20
Standards
CSA Certified C22.2, Federal Specification W-C-596, NEMA WD-6, UL 498
Resistance Properties
Impact Resistant
Flange Type
Non-Flanged
Sub-Category
Duplex Receptacles
Corrosion Resistant
No
Application Environment
Commercial
Surge Suppression
No
HP
1/2 hp
Outlet Type - Plugs and Receptacles
Standard Duplex
Wiring Method - Plugs and Receptacles
Back and Side
Outlet Type
Duplex
Weather Resistant
No
Power Indicator
No
Tamper Resistant
No
Material
Nylon
Mounting Type
Flush
Weather Resistant - Plugs and Receptacles
No
Number of Gangs
1
Voltage
125VAC
Mounting Type - Plugs and Receptacles
Flush
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
NEMA Rating
1
Contact Material
Brass
Cover Type
No Cover
AFCI
No
NEMA Enclosure Rating
1
Housing Material
Nylon
Grade
Hospital Grade Fed. Spec.
UL 94 Flammability Rating
V-2
GFCI
No
Minimum Operating Temperature
-40 Degrees F
Includes
Grounding Staple, Mounting Hardware, Wall Plate or Weatherproof Cover
Includes Mounting Hardware
Yes
Market
Commercial
Polarized
Yes
Maximum Operating Temperature
167 Degrees F
Connection Orientation
Straight
Horsepower Rating
1/2 hp
For Location
Indoor
Surge Protection
No
Shrouded
No
Device Color
White
Ground Contacts
Brass
Mounting Strap
Galvalized steel
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Flammability
UL 94V-2
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only
Power Contacts
Brass
Current Interrupting
Certified for current interrupting at full rated current
Operating Temperature
Maximum continuous 75°C; minimum -40°C (w/o impact)
Automatic Self-grounding Staple
Stainless steel
Base
PBT
Face
Nylon
Dielectric Voltage
Withstands 2,000V minimum
Clamping Plate
Plated steel
Mounting Screws
Zinc plated steel
Series
Hubbell-Pro
Wattage
1875 W
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
OEM Brand Name
Hubbell Wiring Device-Kellems
Material - Mounting Hardware
Screw Mounting
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94V-2 Environmental - Operating Temperature - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Application
Hubbell-Pro Heavy Duty Hospital Grade
Industry Standard(s)
Certified to CSA, C22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Dielectric Strength
Withstands 2,000V minimum
Horsepower - Maximum
0.5
Style
Style Line decorator

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Housing Color White, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Impact Resistant, Standards CSA Certified C22.2, Federal Specification W-C-596, NEMA WD-6, UL 498
