  6. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

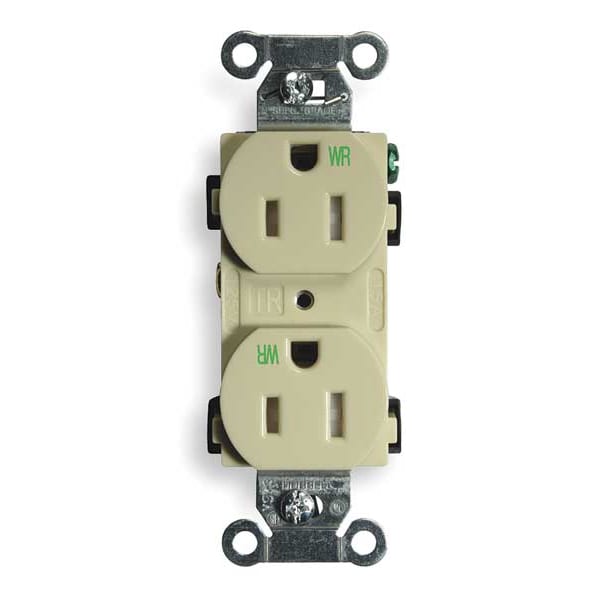

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded BR15IWRTR - main
Shop HUBBELL WIRING DEVICE-KELLEMS

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # BR15IWRTR

  • Zoro # G1094764

product price:  $10.95
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BR15IWRTR
Zoro #
G1094764
UPC #
783585144573
Country of Origin
China

Dimensions

Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG
Mount Hole Center-to-Center Height
3.3 in
Face Plate Width
1.3 in
Face Plate Height
2.7 in
Overall Depth
3.3 in
Dimensions
1.32 in x 0.83 in x 3.28 in
Length
1.32 in
Height
3.28 in
Display Size
Standard Sized Product
Width
0.83 in
Wire Size
#14 AWG to #10 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Ivory
Mount Type
Flush
Standards
CSA Certified, NEMA WD-6, UL 498 File E2186
Resistance Properties
Tamper Resistant, Weather Resistant
Flange Type
Non-Flanged
Number of Gangs
1
Wiring Method - Plugs and Receptacles
Back and Side
Sub-Category
Duplex Receptacles
Power Indicator
No
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Voltage
125VAC
Tamper Resistant
Yes
HP
1/2 hp
Corrosion Resistant
No
Application Environment
Commercial
Surge Suppression
No
NEMA Configuration
5-15
Mounting Type - Plugs and Receptacles
Flush
Material
Nylon
Weather Resistant
Yes
Weather Resistant - Plugs and Receptacles
Yes
Outlet Type - Plugs and Receptacles
Standard Duplex
Mounting Type
Flush
Outlet Type
Duplex
Type
Duplex
Connection Orientation
Straight
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
167 Degrees F
Horsepower Rating
1/2 hp
NEMA Enclosure Rating
1
Grade
Federal Specification
Shrouded
No
AFCI
No
UL 94 Flammability Rating
V-2
Contact Material
Brass
Includes
Grounding Staple, Mounting Hardware, Wall Plate or Weatherproof Cover
Market
Commercial, Industrial
GFCI
No
Surge Protection
No
Polarized
Yes
Cover Type
No Cover
Housing Material
Nylon
Includes Mounting Hardware
Yes
Horsepower
0.5
Device Color
Ivory
Receptacle Grade
Specification Grade Commercial Series, Tamper and Weather Resistant
Mounting Strap Material
.040" (1) Steel (Galvanized)
Auto Ground Clip Material
Stainless Steel
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Other Available Colors
Brown, Ivory, White, Office White, Almond, Light Almond, Gray, Black
Face Shape
Traditional
Top Material
Nylon
Power Contacts Material
.030" (.8) Brass
Receptacle Style
Duplex
Certification
UL Listed to UL498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-1 Heavy Duty and WD-6 requirements, Certified to CSA, C22.2, No. 42 file 285.
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current
Dielectric Voltage
Withstands 2,000V minimum
Mounting Screw Material
Steel-Zinc Plated
Base Material
Nylon
Poles and Wires
2 Pole, 3-Wire Grounding
Standard
NEMA
Current Interrupting
Certified for current interrupting at full rated current
Rating
15A, 125V
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only
Flammability
UL 94 V-2
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Style
Smooth Face
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Industry Standard(s)
Certified to CSA C22.2, No. 42 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Application
Commercial Specification Grade
Material - Mounting Hardware
Screw Mounting
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-2 Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Horsepower - Maximum
0.5
Dielectric Strength
Withstands 2,000V minimum
OEM Brand Name
Hubbell Wiring Device-Kellems
Series
Commercial Specification Grade
Environmental Conditions
Weather Resistant
Wattage
1875 W
Nema Rating
5-15R

Description

• Weather-resistance complies with national electrical code requirements
• Tamper-resistant shutter complies with national electrical code requirements
• Smooth face
• Wrap-around galvanized steel strap
• Triple wipe contacts
